Acro® S-2
- Home
- All products
CEU™ - High rise
Intended use
Law Enforcement
Military
Personal Protection
#200259
Select configuration
Rotates a full 260°
Submersible to 25 meters (80 feet)
Weight 130 g (4.6 oz) CEU only
Designed to be compatible with all Aimpoint® sights
Does not affect the weapon’s point of impact
Designed to provide a “true image,” NOT a reversed mirror reflection
Height of Optical Axis 39 mm (1.5 in) measured from top surface of mounting platform
Product description

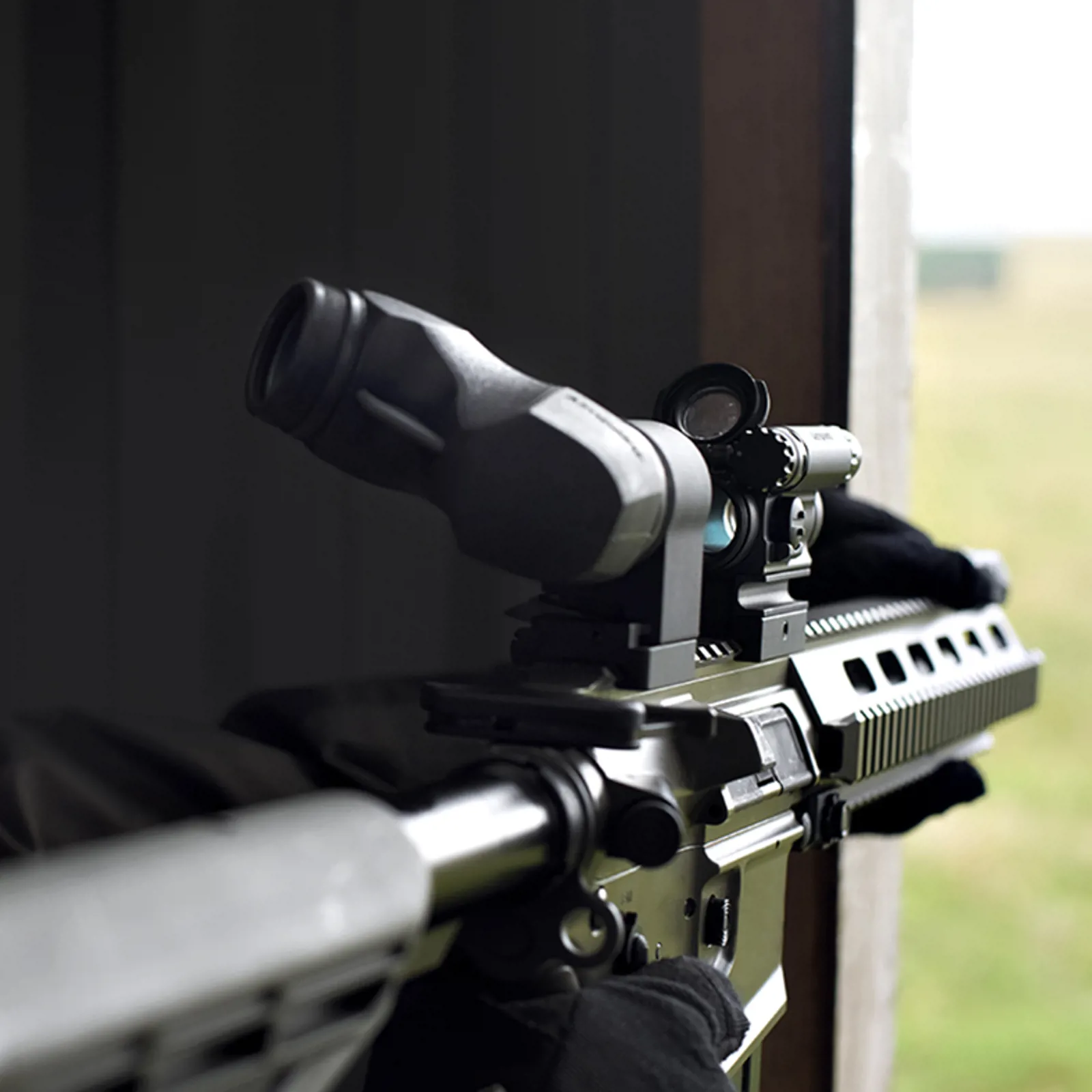

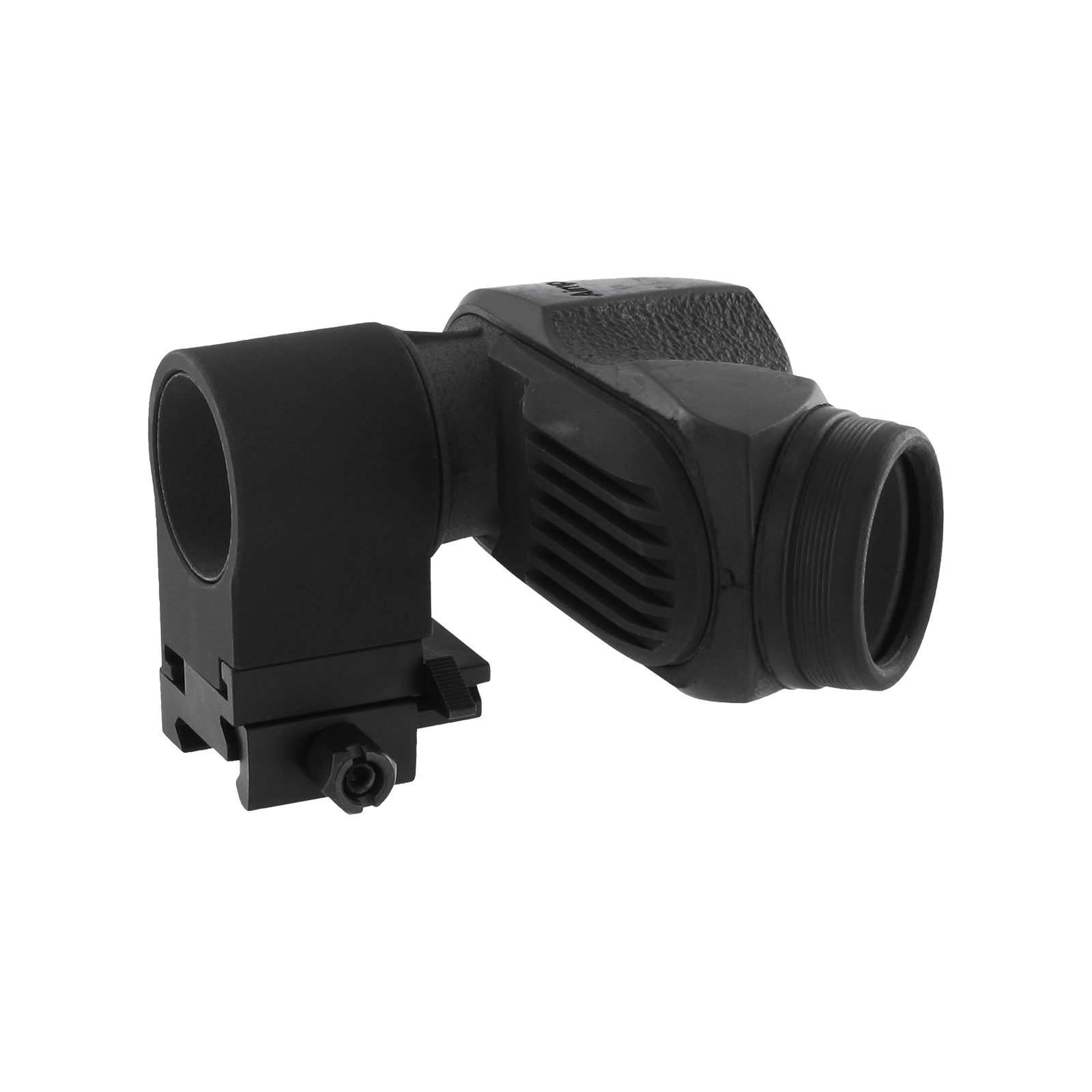

The Aimpoint® CEU™ (Concealed Engagement Unit) gives the operator the ability to observe and/or engage a threat from a concealed or covered position.
The CEU easily rotates from side to side, so an operator can safely look around either right or left-hand corners, over barricades and under vehicles. It rotates a full 260° allowing the operator to safely look around corners, up staircases or down tunnels from almost any angle. To mount the CEU, use the AIMPOINT TwistMount™ base and choose the CEU ring which allows co-witnessing with the AIMPOINT sight. It can also be quickly removed in order to rapidly return to direct engagement.
The AIMPOINT CEU permits the professional end-user safe concealed observation from almost any angle.
Mounting solutions
Here are some compatible mounting solutions.
Inspiration
Please note that displayed media files highlight selected sight model and not always the mount configuration and accessories included in selected item number.
Specifications & documents
- General specifications
- Optical Information
- Power Source Information
- Mounting specifications
- Physical Information
- Technology Information
- Environmental Information
- Documents and zeroing targets
General specifications
Size L x W x H
87 x 104 x 67 mm / 3.4 x 4.1 x 2.6 in
Magnification
1X - No Magnification
Mounting solution
CEU Ring High Rise 39 mm and TwistMount Base
Transmission
Average 60% in the range 420 - 700 nm
