3X-C™ Magnifier with FlipMount™ 30 mm and TwistMount™ base  - 1
3X-C™ Magnifier with FlipMount™ 30 mm and TwistMount™ base  - 2
3X-C™ Magnifier with FlipMount™ 30 mm and TwistMount™ base  - 3
3X-C™ Magnifier with FlipMount™ 30 mm and TwistMount™ base  - 4

Intended use

  • Hunting

    Hunting

  • Law Enforcement

    Law Enforcement

  • Shooting Sports

    Shooting Sports

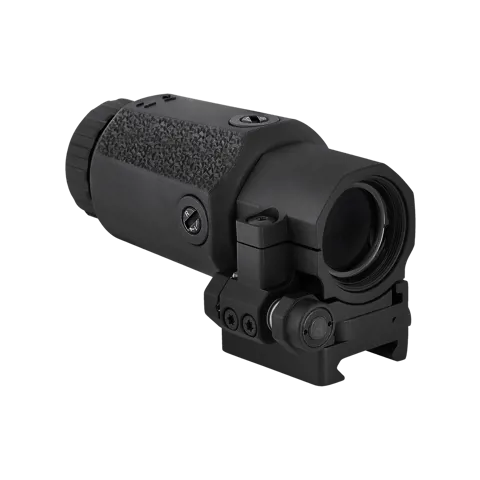

3X-C™ Magnifier with FlipMount™ 30 mm and TwistMount™ base

3X-C™

#200341

Select configuration
  • Variable (-2 to + 2) dioptric setting

  • Submersible to 0,5 meters (2 feet)

  • Weight 220 g (7.8 oz) magnifier only

  • Compatible with Aimpoint red dot sights for longer range aiming or observation

  • Ergonomic design for sure grip when used as a handheld observation tool

  • No re-zeroing needed when shifting between non-magnified and magnified aiming

  • Height of Optical Axis 30 mm (1.2 in) measured from top surface of mechanical interface

Read more
  • Take your shooting performance to the next level

  • Aimpoint - The originalsince 1975

Product description

The Aimpoint® 3X-C offers 3X magnification and incorporates proven design features and premium Aimpoint quality at an entry level price point.

The 3X-C can also be used as a handheld 3X monocular. These magnifiers utilize the red dot in sights as the aiming reticle, eliminating the need for re-zeroing when shifting between non-magnified and magnified aiming. A variable (-2 to +2) dioptric setting allows this magnifier to be adapted to the individual shooter’s eye. The 3X-C is encased in a shock absorbing protective rubber cover that also creates an ideal ergonomic grip. Internal optical adjustments make aligning the magnifier and sight quick and easy. This model has a 30 mm FlipMount and a TwistMount base.

The 3X-C magnifier is optimized for use with the Micro T-2/H-2, CompM4 Series, and CompM5 series of sights for long-range aiming or observation provides a crisp sight picture with a generous field of view.

Specifications & documents

  • General specifications
  • Optical Information
  • Mounting specifications
  • Physical Information
  • Environmental Information
  • Documents and zeroing targets

General specifications

Size L x W x H
Size L x W x H
108 x 56 x 60 mm / 4.3 x 2.2 x 2.4 in
Weight
Weight
316 g / 11.1 oz
Magnification
Magnification
3X
Dioptric adjustment
Dioptric adjustment
± 2.0 D
Eye relief
Eye relief
56 mm / 2.2 in
Field of view (FOV)
Field of view (FOV)
Mounting solution
Mounting solution
FlipMount Ring 30 mm, TwistMount Base
Mounting platform
Mounting platform
Picatinny Rail

Optical Information

Magnification
3X
Eye relief
56 mm / 2.2 in

Mounting specifications

Mounting solution
FlipMount™ Ring 30 mm, TwistMount™ Base

Physical Information

Material housing and tube
Aluminum
Surface finish housing
Protective Rubber Cover
Color housing
Matte Grey to Black
Lens covers
Not Included
Size L x W x H - Sight only
103 x 45 x 45 mm / 4.1 x 1.8 x 1.8 in
Size L x W x H
108 x 56 x 60 mm / 4.3 x 2.2 x 2.4 in
Weight - Optic only
220 g / 7.8 oz
Weight
316 g / 11.1 oz

Environmental Information

Water resistant
0.5 m / 2 ft
Operating temperature
- 35°C to + 55°C / - 31°F to + 131°F
Storage temperature
- 35°C to + 55°C / - 31°F to + 131°F
Temperature shock
Operable after a temperature shock between - 25°C and + 40°C (- 13°F and + 104°F)
Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Vibration
Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
Shock
Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
