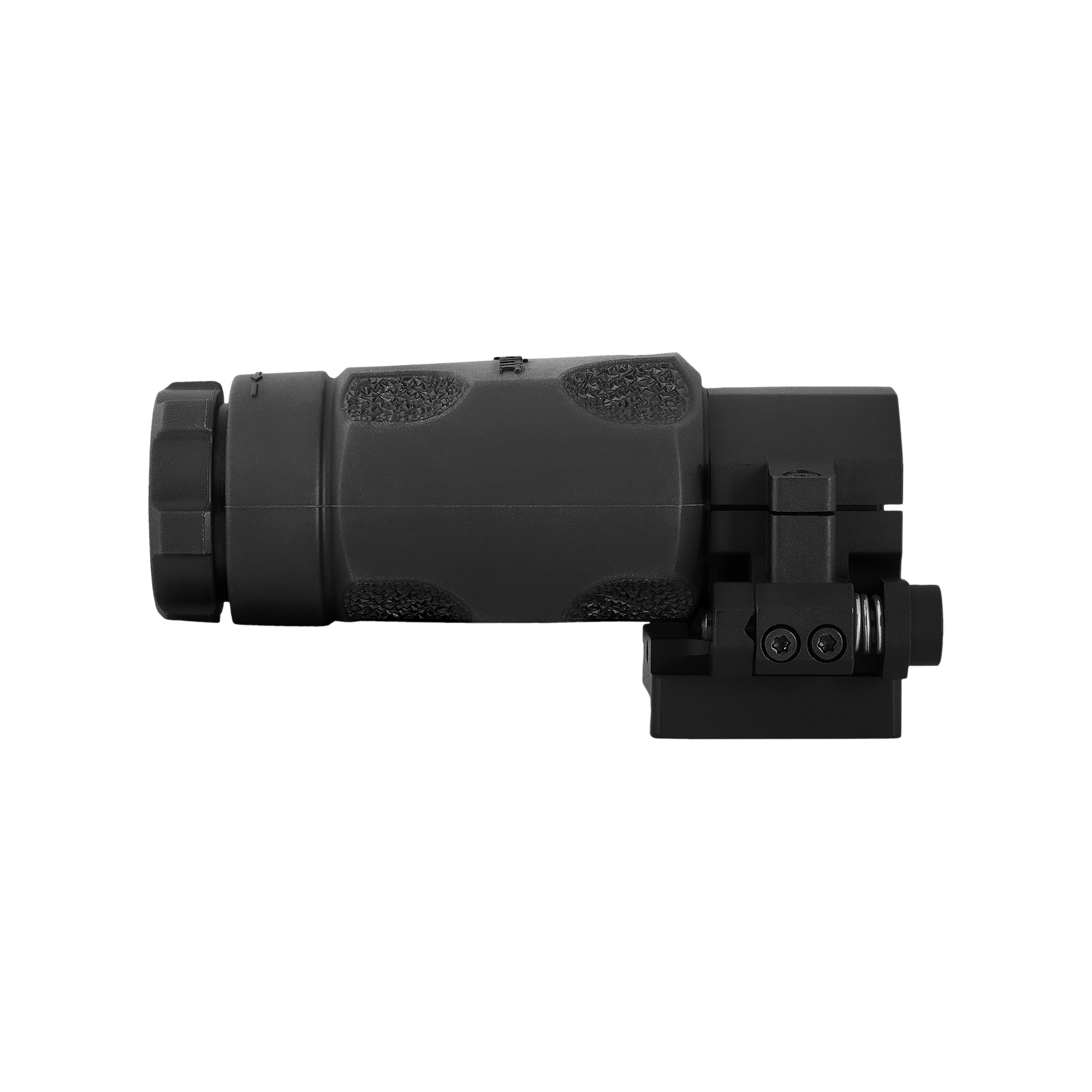

3XMag™-1 Magnifierwith FlipMount™ 30 mm and TwistMount™ base

#200333

  • Variable (-3 to +3) dioptric setting

  • Submersible to 25 meters (80 feet)

  • Weight 230 g (8.1 oz) magnifier only

  • Compatible with Aimpoint® red dot sights for longer range aiming or observation

  • Ergonomic design for sure grip when used as a handheld observation tool

  • No re-zeroing needed when shifting between non-magnified and magnified aiming

  • Height of Optical Axis 30 mm (1.2 in) measured from top surface of mechanical interface

Product description

The Aimpoint® 3XMag™-1 magnifier is a 3X power magnifying module built to withstand the demands of professional end-users.

The 3XMAG-1 magnifier was optimized for use with AIMPOINT Micro™ T-2 / H-2, Patrol Rifle Optic, Comp™ M4 / M4s and Comp™ M5 / M5s sight models providing a clear, crisp 2 MOA dot under 3X magnification. Internal optical adjustments make aligning the magnifier and sight quick and easy.

These magnifiers utilize the red dot in AIMPOINT sights as the aiming reticle, eliminating the need for re-zeroing when shifting between non-magnified and magnified aiming. The 7-degree field of view (FOV) allows for a generous sight picture. A variable (-3 to +3) dioptric setting allows the magnifier to be adapted to the individual’s eye. The 3XMAG-1 can also be used as a handheld monocular and the protective rubber cover provides the ideal ergonomic grip.

The 3XMAG-1 module gives professional end-users enhanced capability for long-range aiming or observation with a crisp sight picture and a generous field of view.

Inspiration

Please note that displayed media files highlight selected sight model and not always the mount configuration and accessories included in selected item number.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Mounting specifications
  • Physical Information
  • Technology Information
  • Environmental Information
  • Documents and zeroing targets

General specifications

Size L x W x H
Size L x W x H
113 - 120 x 56 x 60 mm / 4,4 - 4,7 x 2.2 x 2.4 in
Weight
Weight
333 g / 11.8 oz
Dioptric adjustment
Dioptric adjustment
± 3.0 D
Eye relief
Eye relief
70 mm / 2.8 in
Field of view (FOV)
Field of view (FOV)
Magnification
Magnification
3X
Mounting platform
Mounting platform
Picatinny Rail
Mounting solution
Mounting solution
FlipMount Ring 30 mm, TwistMount Base
Transmission
Transmission
Average 75% (photopic, integral transmission)

Optical Information

Eye relief
70 mm
Magnification
3X
Transmission
Average 75% (photopic, integral transmission)

Power Source Information

Mounting specifications

Mounting platform
Picatinny rail
Mounting solution

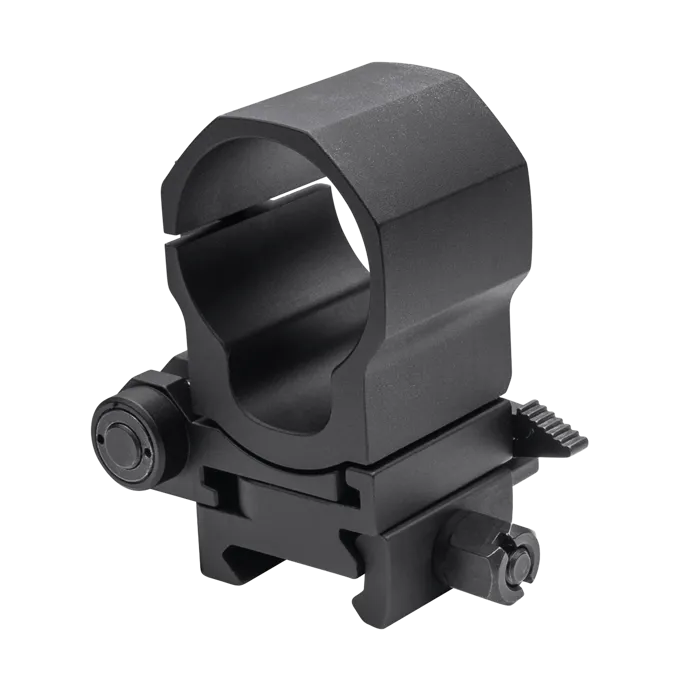

FlipMount™ ring 30 mm and TwistMount™ base

Physical Information

Color housing
Matte Grey to Black
Lens covers
Not Included
Weight
333 g
Weight - Optic only
230 g
Material housing and tube
Aluminum
Surface finish housing
Protective Rubber Cover

Technology Information

Environmental Information

Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Water resistant
25 m / 80 ft
Shock
Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
Operating temperature
- 45°C to + 71°C / - 49°F to + 160°F
Storage temperature
- 45°C to + 71°C / - 49°F to + 160°F
Temperature shock
Operable after a temperature shock between - 40°C and + 55°C (- 40°F and + 131°F)
Vibration
Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
