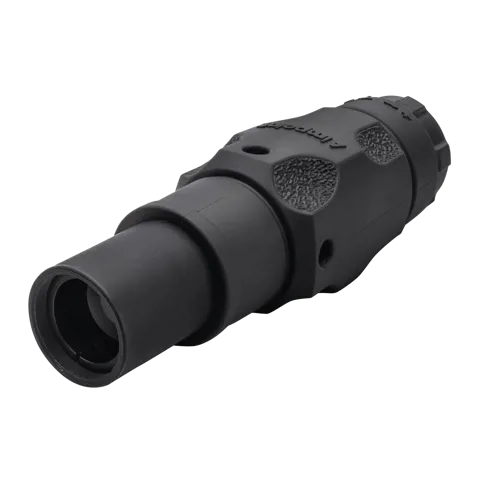

6XMag™-1 Magnifier without ring  - 1

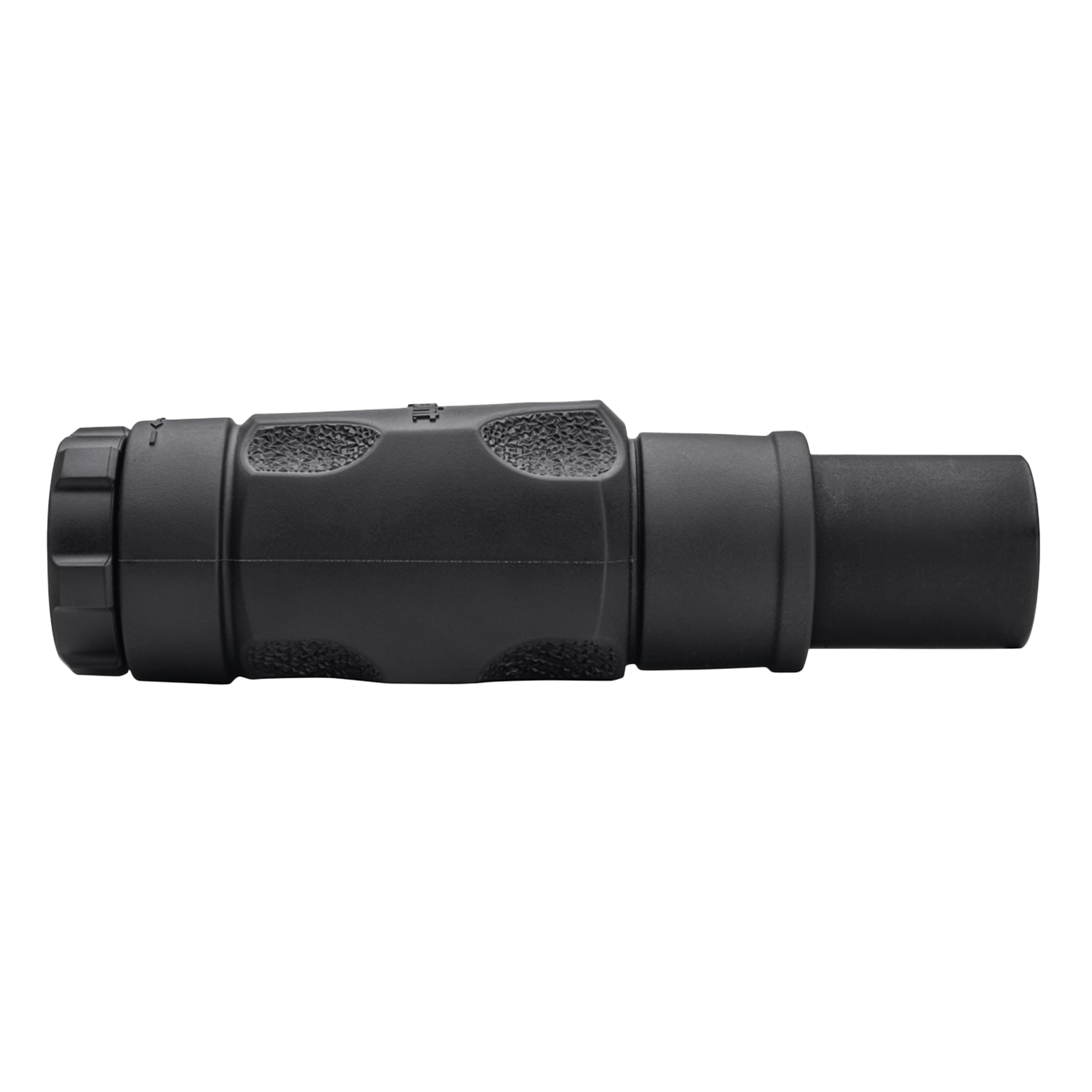

6XMag™-1 Magnifier without ring  - 2
6XMag™-1 Magnifier without ring  - 3

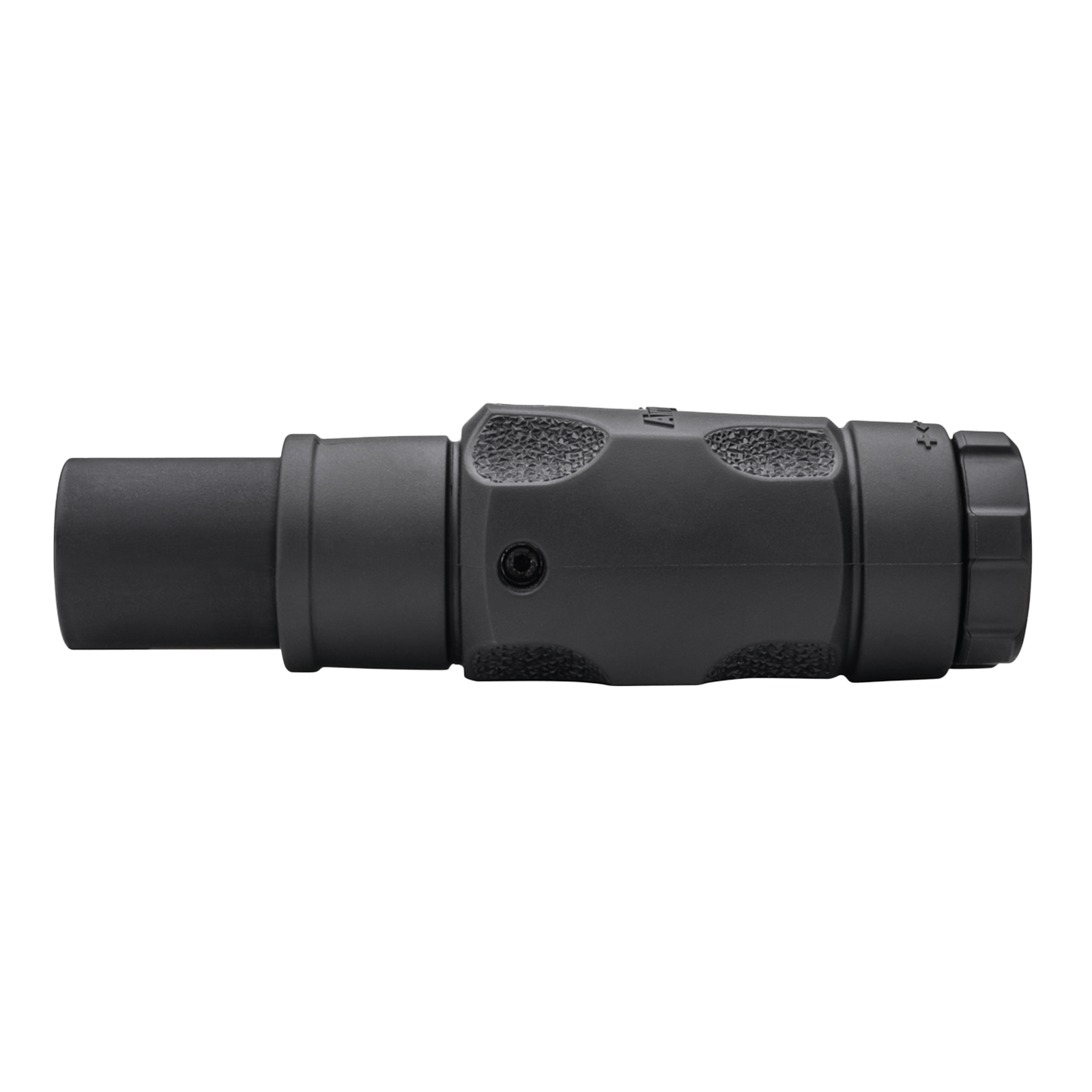

6XMag™-1 Magnifier without ring  - 4

Intended use

  • Law Enforcement

    Law Enforcement

  • Military

    Military

6XMag™-1 Magnifierwithout ring

#200272

Select configuration
  • Variable (-3 to +3) dioptric setting

  • Submersible to 25 meters (80 feet)

  • Weight 250 g (8.8 oz) magnifier only

  • Compatible with Aimpoint® Micro™ T-2 / H-2 and Comp™ M5 / M5s red dot sights for longer range aiming or observation

  • Ergonomic design for sure grip when used as a handheld observation tool

  • No re-zeroing needed when shifting between non-magnified and magnified aiming

Product description

The Aimpoint® 6XMag™-1 magnifier is a 6X power magnifying module built to withstand the demands of professional end-users.

The 6XMAG-1 magnifier is optimized for use with the AIMPOINT Micro™ T-2 / H-2, Comp™ M5 / M5s red dot sight models. Internal optical adjustments make aligning the magnifier and sight quick and easy.

AIMPOINT magnifiers utilize the red dot in AIMPOINT sights as the aiming reticle, eliminating the need for re-zeroing when shifting between non-magnified and magnified aiming. The 3-degree field of view (FOV) allows for a generous sight picture. A variable (-3 to +3) dioptric setting allows the magnifier to be adapted to the individual’s eye. The 6XMAG-1 can also be used as a handheld monocular and the protective rubber cover provides the ideal ergonomic grip.

The 6XMAG-1 module gives professional end-users enhanced capability for long-range aiming or observation with a crisp sight picture and a generous field.

Inspiration

Please note that displayed media files highlight selected sight model and not always the mount configuration and accessories included in selected item number.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Mounting specifications
  • Physical Information
  • Technology Information
  • Environmental Information
  • Documents and zeroing targets

General specifications

Dioptric adjustment
Dioptric adjustment
± 3.0 D
Eye relief
Eye relief
70 mm / 2.8 in
Field of view (FOV)
Field of view (FOV)
Magnification
Magnification
6X
Mounting solution
Mounting solution
Not Included
Transmission
Transmission
Average 75% (photopic, integral transmission)

Optical Information

Eye relief
70 mm
Magnification
6X
Transmission
Average 75% (photopic, integral transmission)

Power Source Information

Mounting specifications

Mounting solution
Not Included

Physical Information

Weight - Optic only
250 g
Material housing and tube
Aluminum

Technology Information

Environmental Information

Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Water resistant
25 m / 80 ft
Shock
Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
Operating temperature
- 45°C to + 71°C / - 49°F to + 160°F
Storage temperature
- 45°C to + 71°C / - 49°F to + 160°F
Temperature shock
Operable after a temperature shock between - 40°C and + 55°C (- 40°F and + 131°F)
Vibration
Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
