9000™ L2 MOA - Red dot reflex sight

#11419

  • 50,000 hours (over 5 years) of constant operation on one battery

  • Submersible to 5 meters (15 feet)

  • Weight 227 g (8.0 oz) sight only

  • Ideal for use on rifles with standard to magnum actions

  • 10 position rotary intensity adjustment

  • 2 MOA dot size

Read more
  • Take your shooting performance to the next level

  • Aimpoint - The originalsince 1975

Product description

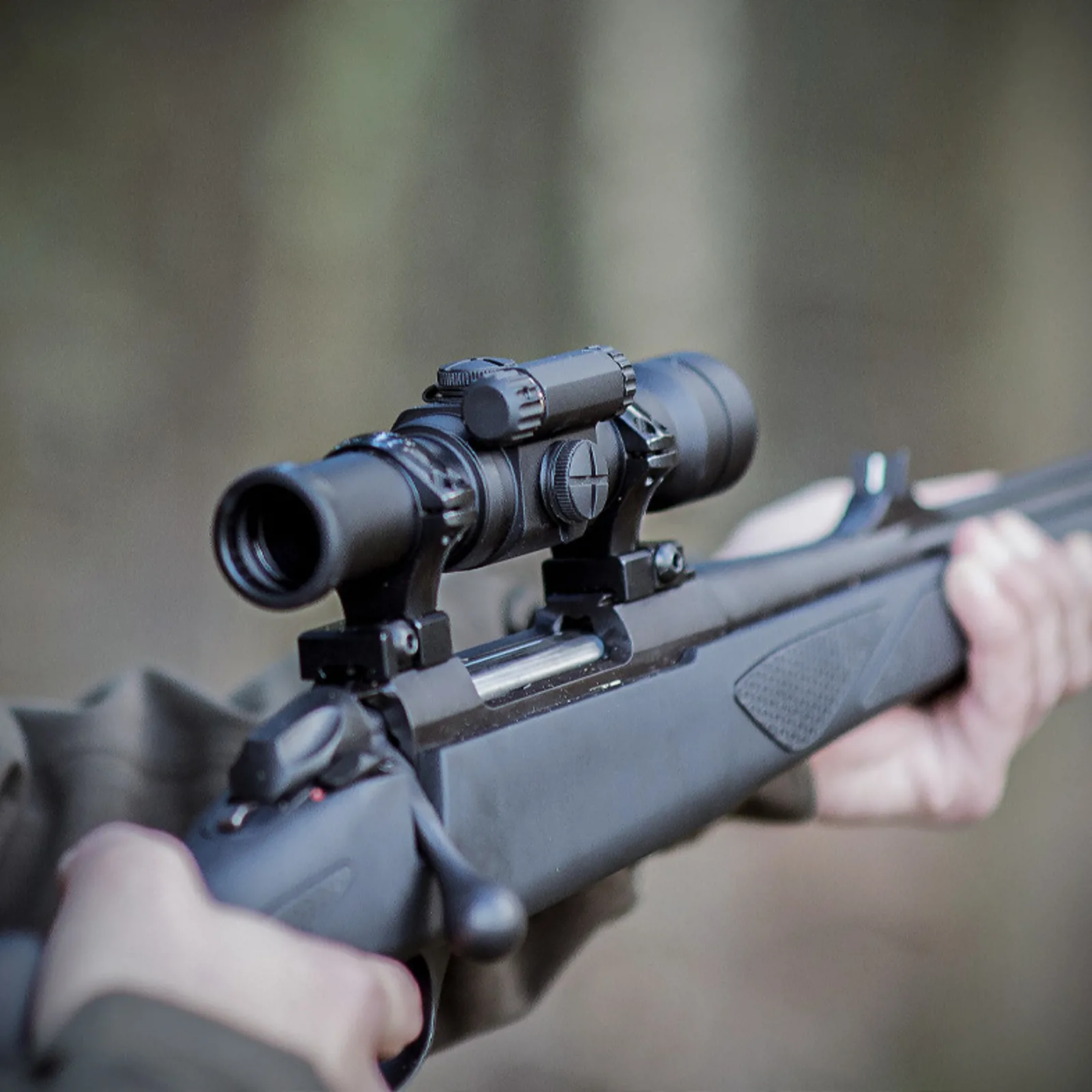

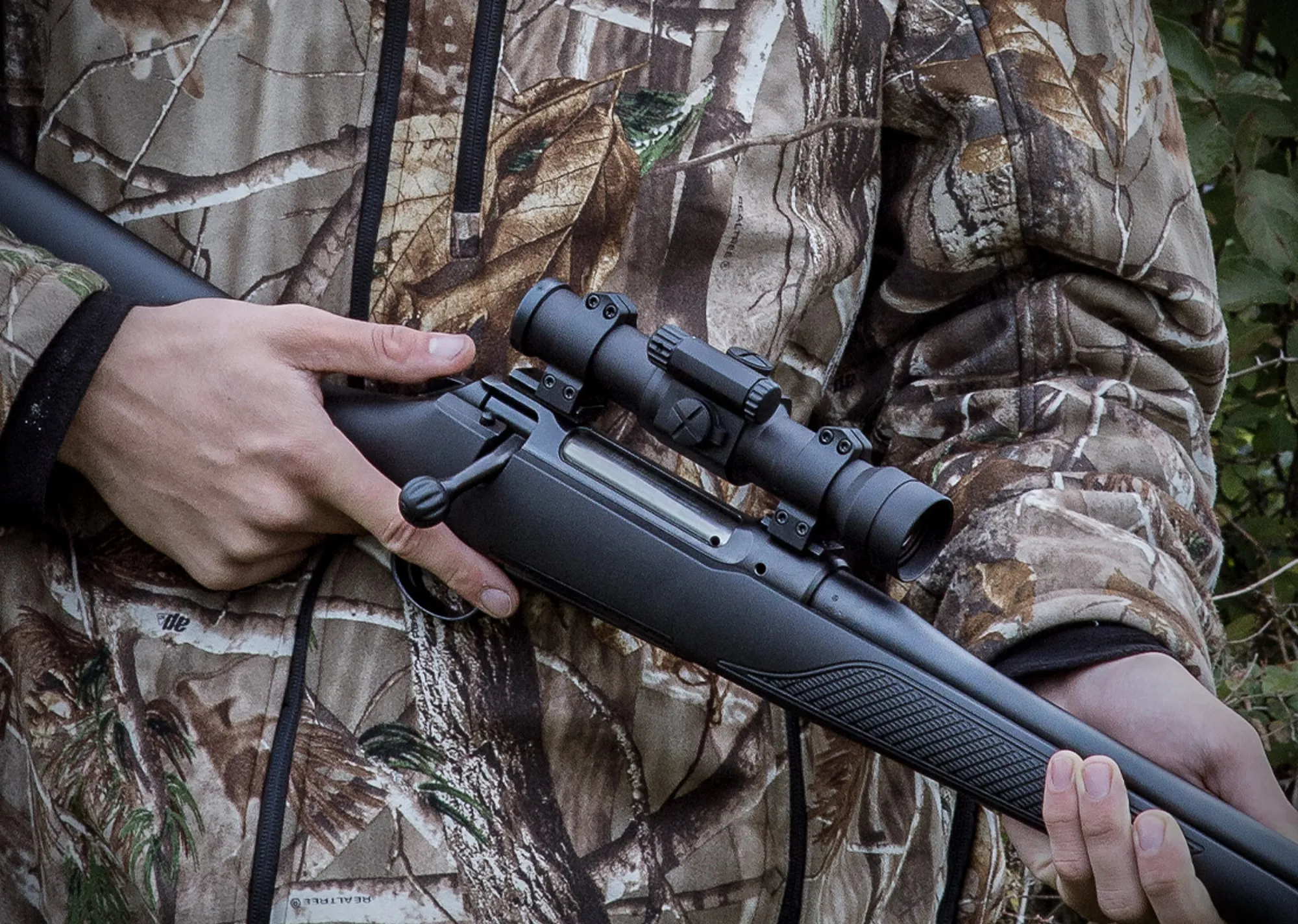

The Aimpoint® 9000™ L is a full-length sight that delivers extreme accuracy and quick target acquisition whether you are hunting wild boar, deer, moose, or bear.

The 9000 L is primarily designed for rifles with standard or magnum-length actions. This optic gives you the standard AIMPOINT effectiveness and reliability at a lower cost. The AIMPOINT 9000 L can handle the most extreme hunting conditions. It has the same base construction as the battle proven Comp™ series with an extended long rear tube for 2 ring mounting solutions. It is available in 2 and 4 MOA dot size.

The 9000 L is an optic with a proven high quality at an affordable price.

Flip-up lens covers, solid/black, are included as standard in sights produced after January 2024. If produced before bikini lens cover was included.

Included in the box:

  • DL1/3N Battery
  • Black / solid flip-up lens covers

Inspiration

Please note that displayed media files highlight selected sight model and not always the mount configuration and accessories included in selected item number.

Specifications & documents

General specifications

Size L x W x H
Size L x W x H
207 x 53 x 53 mm / 8.2 x 2.1 x 2.1 in
Weight
Weight
242 g / 8.5 oz
Dot size
Dot size
2 MOA
Eye relief
Eye relief
Unlimited
Magnification
Magnification
1X - No Magnification
Mounting solution
Mounting solution
Not Included
NVD compatible
NVD compatible
No
Transmission
Transmission
Average 60% in the range 420 - 700 nm

Optical Information

Dot size
2 MOA
* MOA (minute of angle)
Magnification
1X - No Magnification
NVD compatible
No
Transmission
Average 60% in the range 420 - 700 nm
Eye relief
Unlimited
Dot color
Red
Light source wavelength
650 nm red light
Optical coating
Anti-reflex coating all surfaces and multilayer coating objective lens
Clear aperture
23 mm
Parallax
Operationally parallax free - No centering required
Diode
LED (Light Emitting Diode) totally eye safe

Power Source Information

Battery life
50,000 h at daylight setting 7 (15,000 Lux, room temperature)
Battery type
1/3N, 3V, Lithium
Power switch
Rotary Switch
Daylight settings (DL)
9

Mounting specifications

Max distance between rings
158 mm
Max ring width
45 mm
Mounting solution
Not Included

Physical Information

Weight
242 g
Material housing and tube
High Strength Aluminum
Lens covers
Flip-up lens covers, solid
Weight - Optic only
227 g
Adjustment 1 click =
Color housing
Black
Surface finish housing
Anodized, Semi-matte

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Environmental Information

Water resistant
5 m / 15 ft
Operating temperature
- 30°C to + 60°C / - 20°F to + 140°F
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Temperature shock
Operable after a temperature shock between - 30°C and + 60°C (- 22°F and + 140°F)
Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Vibration
Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
Shock
Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
