Acro P-2™ Sniper Grey 3.5 MOA - Red dot reflex sight with integrated Acro™ interface - 1

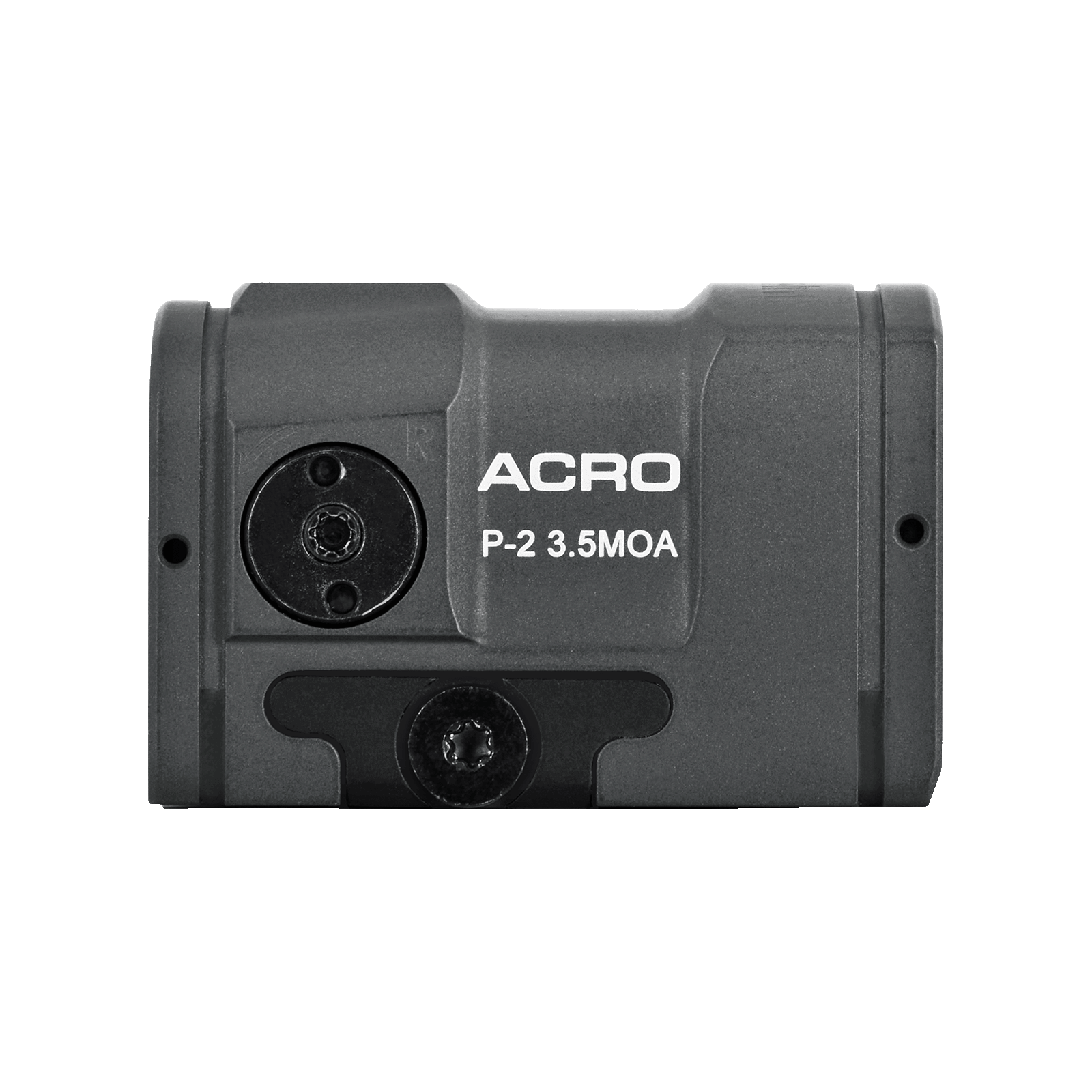

Acro P-2™ Sniper Grey 3.5 MOA - Red dot reflex sight with integrated Acro™ interface - 2
Acro P-2™ Sniper Grey 3.5 MOA - Red dot reflex sight with integrated Acro™ interface - 3
Acro P-2™ Sniper Grey 3.5 MOA - Red dot reflex sight with integrated Acro™ interface - 4

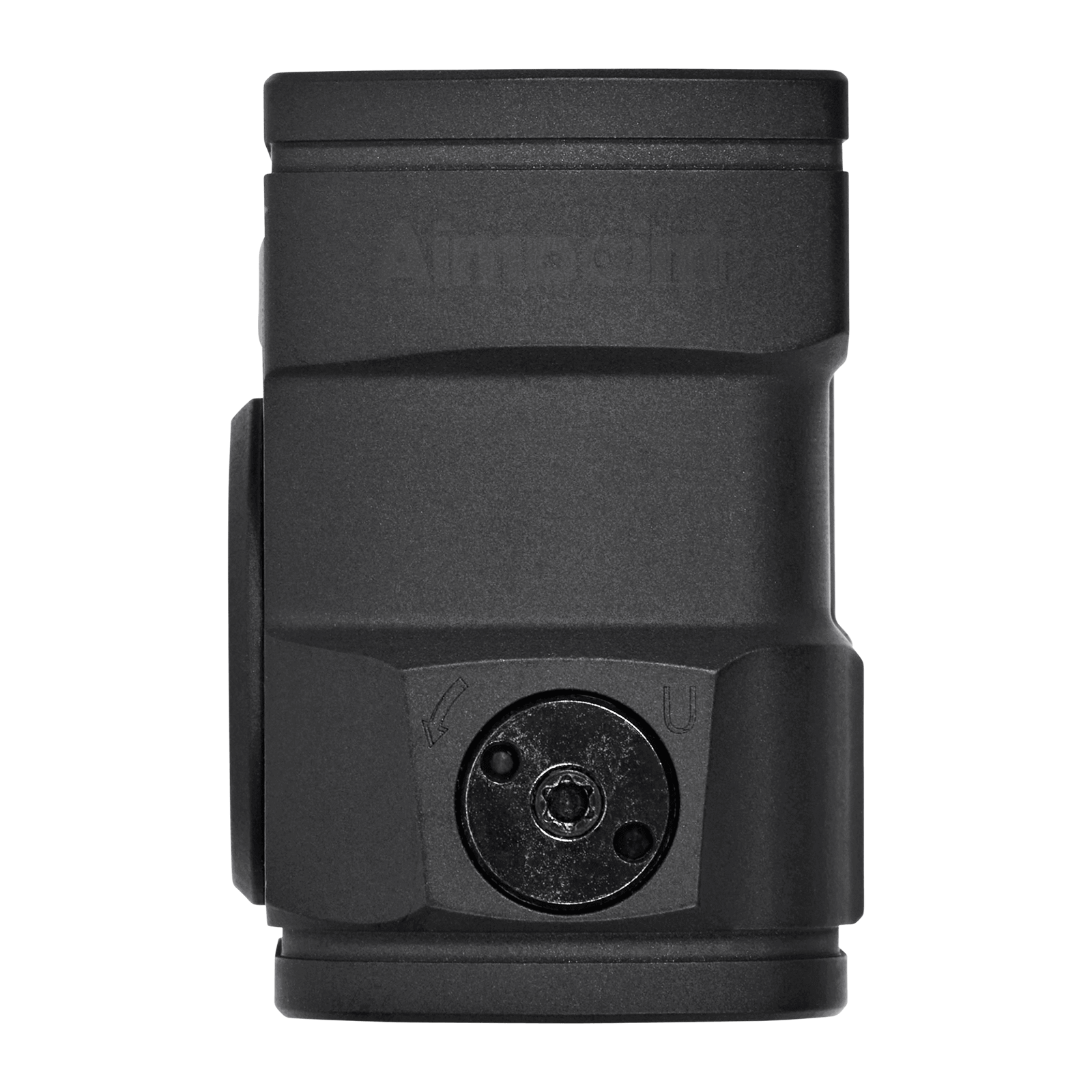

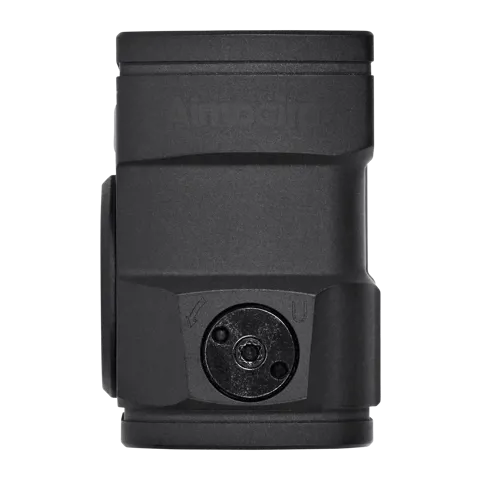

Acro P-2™ Sniper Grey 3.5 MOA - Red dot reflex sight with integrated Acro™ interface - 5

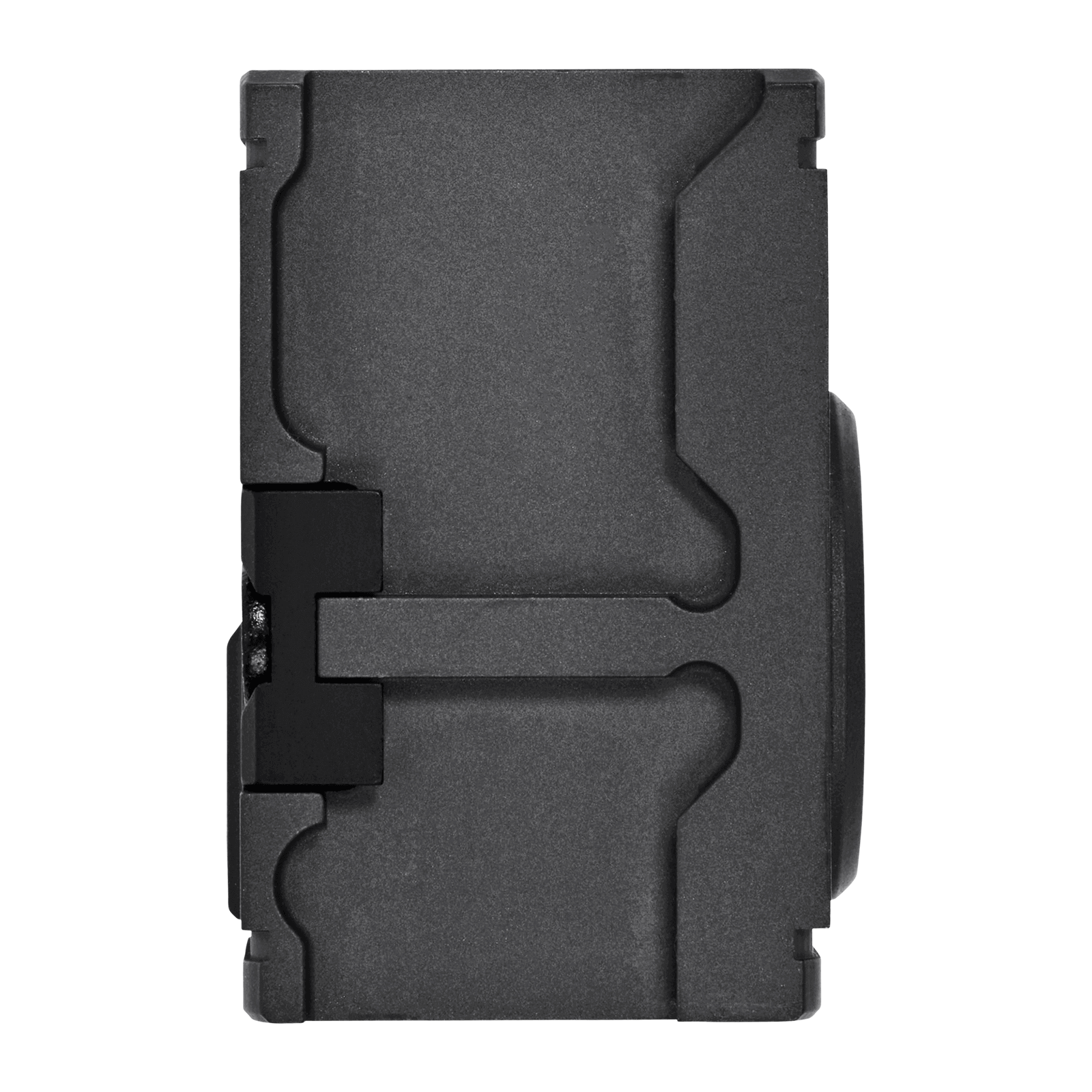

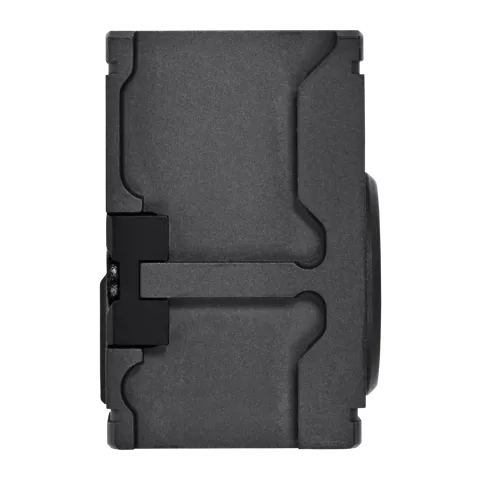

Acro P-2™ Sniper Grey 3.5 MOA - Red dot reflex sight with integrated Acro™ interface - 6

Intended use

  • Law Enforcement

    Law Enforcement

  • Military

    Military

  • Shooting Sports

    Shooting Sports

  • Personal Protection

    Personal Protection

  • Secondary Optic

    Secondary Optic

Acro P-2™ Sniper Grey3.5 MOA - Red dot reflex sightwith integrated Acro™ interface

#200871

  • Special edition with grey colored Cerakote® H-Series surface coating

  • 50,000 hours (over 5 years) of operation on one battery

  • Submersible to 35 meters (115 feet)

  • Weight 61 g (2.2 oz) sight only

  • Optimized for pistol and applications which require a low-profile red dot system

  • Height of Optical Axis 14 mm (0.6 in) measured from top surface of mechanical interface

  • 4 night vision compatible settings and 6 daylight settings

  • 3.5 MOA dot size

Product description

The Aimpoint® Acro P-2 is the next generation in the Acro series with an optimized technology.

With the new battery size of CR2032 and new diode technology the Acro P-2 will last for 5 years of continuous use on setting 6/10 (daylight setting). The new design of the Acro P-2 makes the system submersible to 35 meters (115 feet). The new LED gives you a brighter 3.5 MOA dot.

The Acro P-2 can be mounted on a wide range of weapon platforms in combination with different mounting solutions developed especially for this small red dot optic. It can be used as a backup sight for magnifying scopes, personal defense weapons, and any area where a small red dot system is applicable. It is trusted by law enforcement, military, hunters, and sport shooters alike. They all rely on the Acro advantage.

The rugged and reliable Acro P-2 is the smallest professional grade, enclosed red dot sight for pistols and other platforms.

The Acro P-2 Sniper Grey has a Cerakote® H-Series surface coating with grey housing.

Inspiration

Please note that displayed media files highlight selected sight model and not always the mount configuration and accessories included in selected item number.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Mounting specifications
  • Physical Information
  • Technology Information
  • Environmental Information
  • Documents and zeroing targets

General specifications

Size L x W x H
Size L x W x H
47 x 33 x 31 mm / 1.9 x 1.3 x 1.2 in
Weight
Weight
61 g / 2.2 oz
Dot size
Dot size
3.5 MOA
Magnification
Magnification
1X - No Magnification
NVD compatible
NVD compatible
Yes
Transmission
Transmission
Average 70% in the range 420 - 900 nm
Eye relief
Eye relief
Unlimited
Mounting solution
Mounting solution
Integrated Acro™ Interface
Mounting platform
Mounting platform
Acro Interface

Optical Information

Dot size
3.5 MOA
Magnification
1X - No Magnification
NVD compatible
Yes
Transmission
Average 70% in the range 420 - 900 nm
Eye relief
Unlimited
Dot color
Red
Light source wavelength
650 nm red light
Optical coating
Anti-reflex coating all surfaces and multilayer coating objective lens
Clear aperture
15 × 15 mm / 0.59 × 0.59 in
Parallax
Operationally parallax free - No centering required
Diode
LED (Light Emitting Diode) totally eye safe

Power Source Information

Battery life
50,000 h at daylight setting 6 (15,000 Lux, room temperature)
Battery type
CR2032, 3V, Lithium
Power switch
Push Buttons
Daylight settings (DL)
6

Mounting specifications

Torque - Mount to sight
3.0 Nm / 27 in-lbs
Torque - Mount to rail
3.0 Nm / 27 in-lbs
Mounting solution
Integrated Acro™ Interface

Physical Information

Material housing and tube
High Strength Aluminum
Lens covers
Not Included
Adjustment 1 click =
1 click = 20 mm at 100 m / 0.7 in at 100 yds
Color housing
Sniper Grey
Surface finish housing
Cerakote® H-Series surface coating
Size L x W x H - Sight only
47 x 33 x 31 mm / 1.9 x 1.3 x 1.2 in
Size L x W x H
47 x 33 x 31 mm / 1.9 x 1.3 x 1.2 in
Weight - Optic only
61 g / 2.2 oz
Weight
61 g / 2.2 oz

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Environmental Information

Water resistant
35 m / 115 ft
Operating temperature
- 45°C to + 71°C / - 49°F to + 160°F
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Temperature shock
Operable after a temperature shock between - 45°C and + 71°C (- 49°F and + 160°F)
Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Vibration
Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
Shock
Tested with 20,000 rounds mounted on a .40 S&W caliber pistol slide
