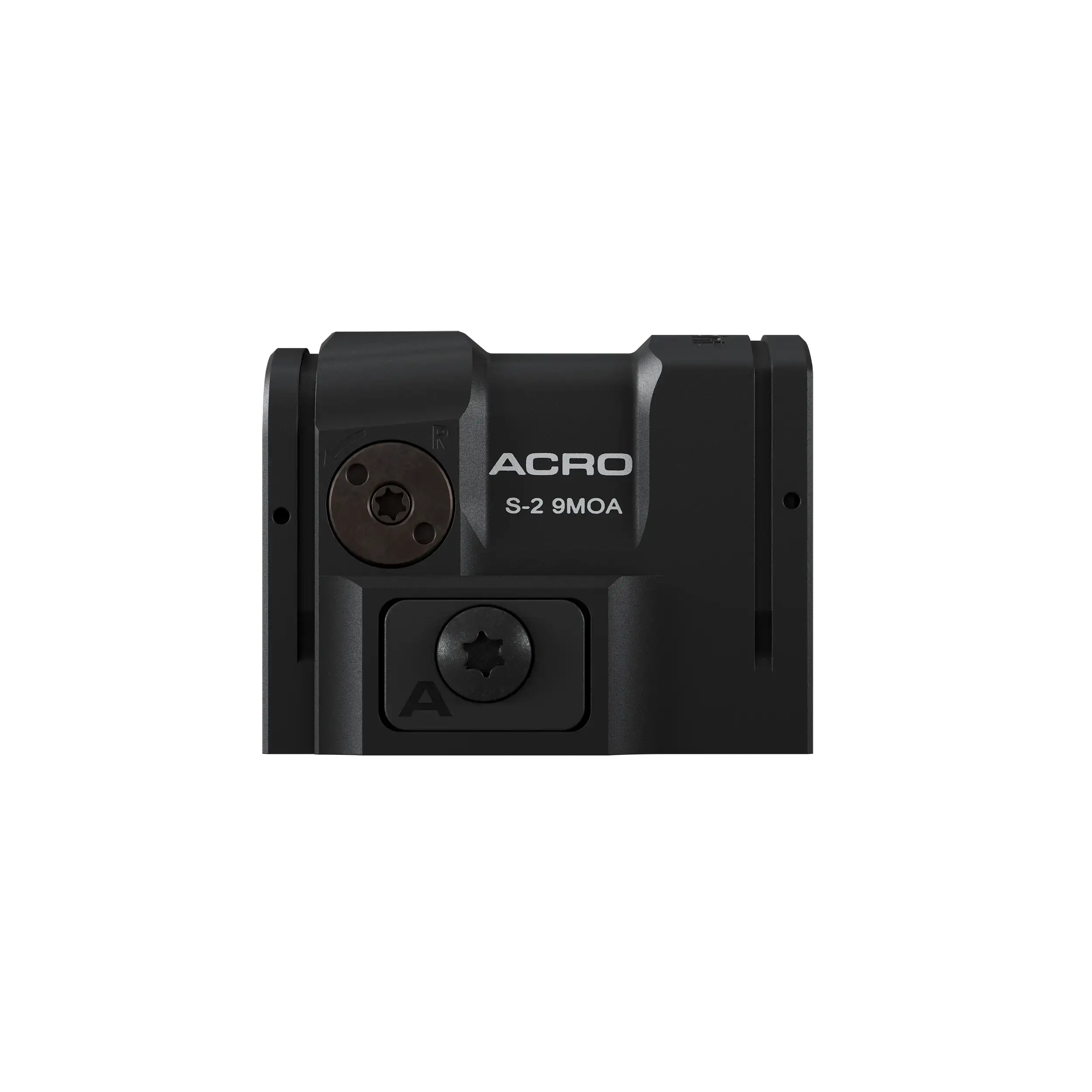

Acro S-2™ 9 MOA - Red dot reflex sight with integrated shotgun rib mount - 2
Acro S-2™ 9 MOA - Red dot reflex sight with integrated shotgun rib mount - 3

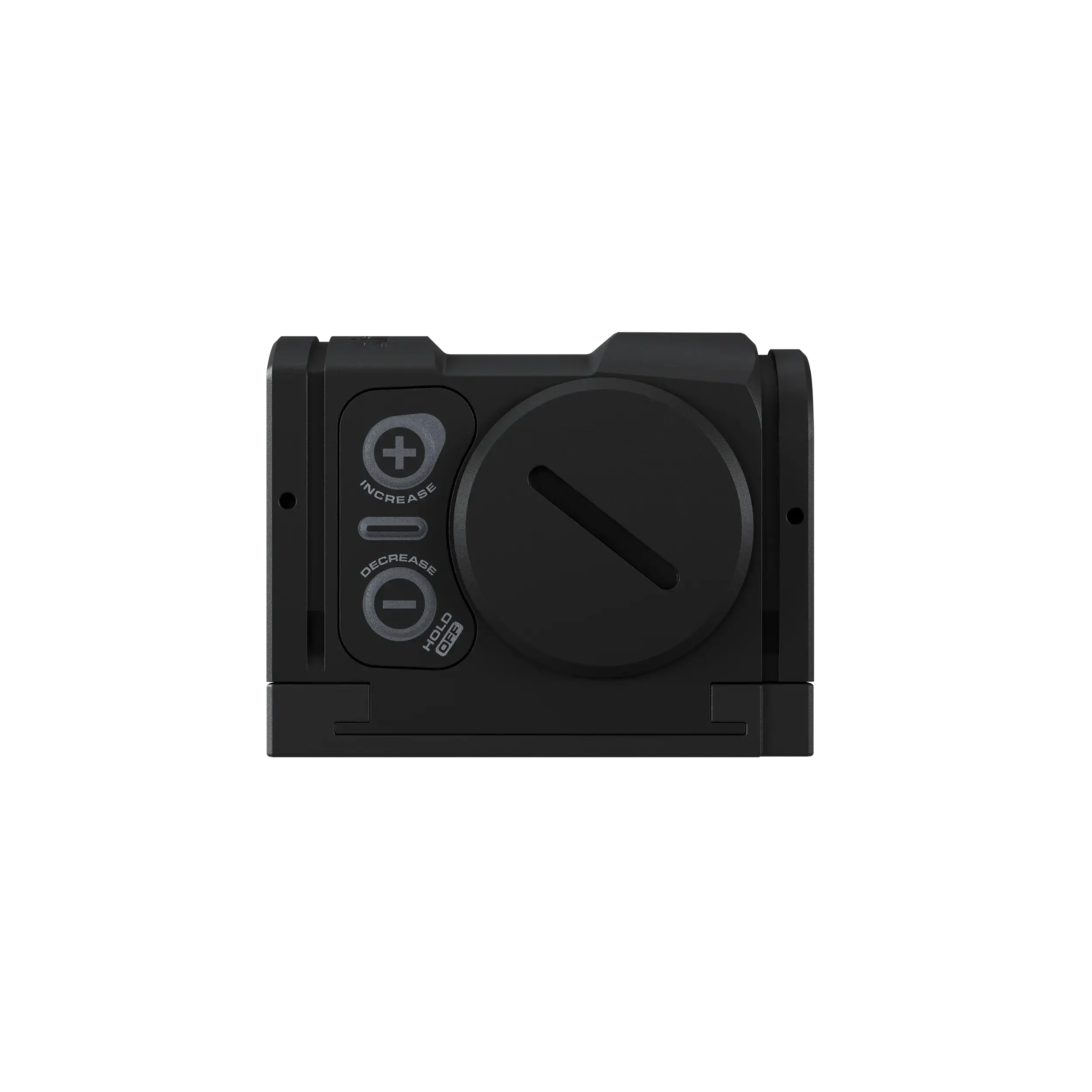

Acro S-2™ 9 MOA - Red dot reflex sight with integrated shotgun rib mount - 4
Acro S-2™ 9 MOA - Red dot reflex sight with integrated shotgun rib mount - 5

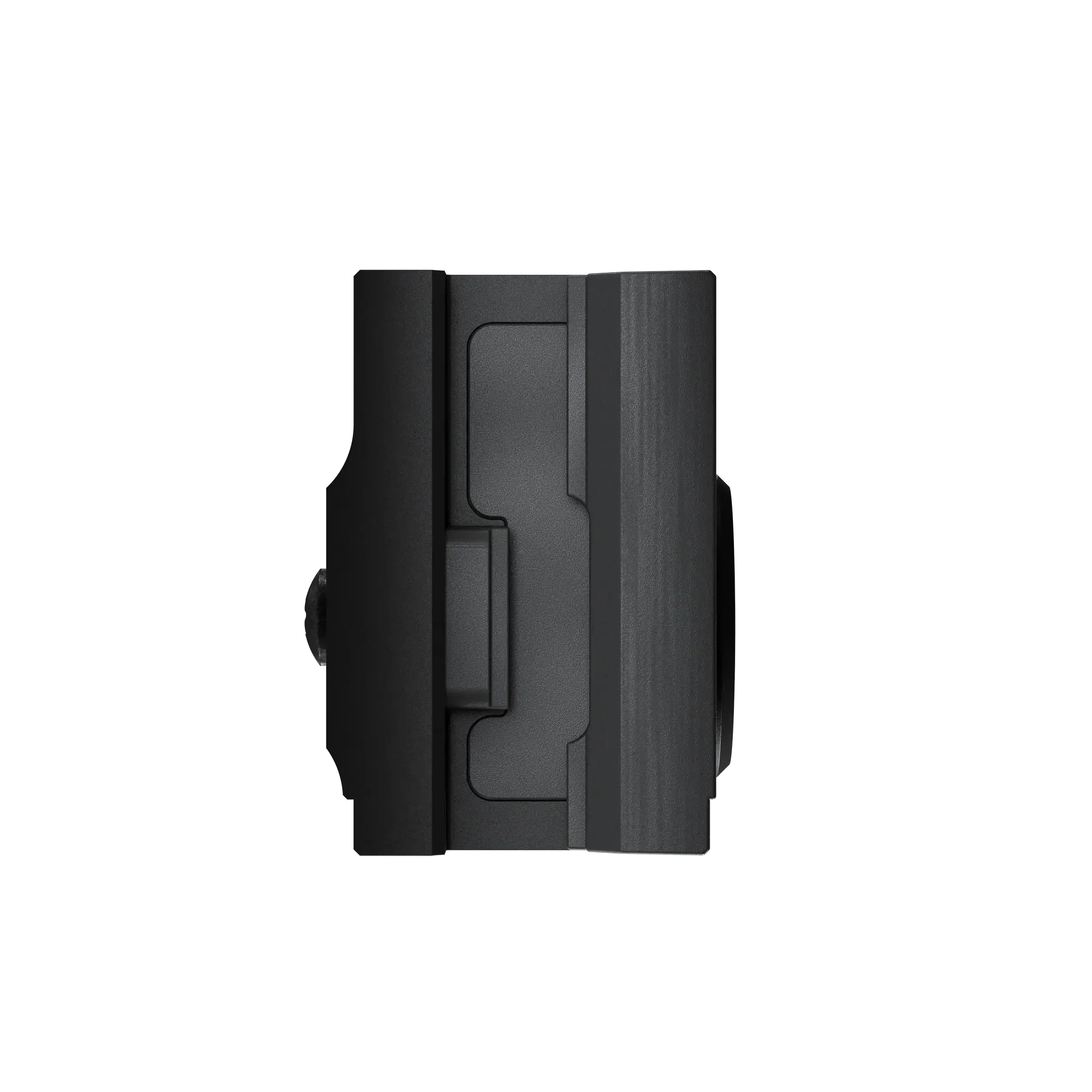

Acro S-2™ 9 MOA - Red dot reflex sight with integrated shotgun rib mount - 6

Intended use

  • Hunting

    Hunting

  • Shooting Sports

    Shooting Sports

Acro S-2™9 MOA - Red dot reflex sightwith integrated shotgun rib mount

#200907

  • 50,000 hours (over 5 years) of operation on one battery

  • Submersible to 5 meters (15 feet)

  • Weight 68 g (2.4 oz) sight only

  • Fits most ventilated shotgun ribs on the market

  • Ultra -low integrated shotgun rib mount - Interchangeable base plates included to accommodate most rib sizes (6-12mm)

  • Height of Optical Axis 15 mm (0.6 in) measured from top surface of mechanical interface

  • 10 intensity settings with higher maximum settings for bright sky conditions

  • 9 MOA dot size

Product description

The Aimpoint® Acro S-2 offers a compact design based on the Acro 2nd generation.

It was designed to mount on the majority of available ventilated shotgun ribs on the market, versatility being a major feature. Its large 9 MOA red dot simplifies lead visualization, enhancing the automatic refinement of muzzle swing and positioning. It is a sleek sight with no protruding features, giving an even more clear view. The low optical axis of 15 mm allows proper gun mounting.

The Acro S-2 excels in bird and small game hunting, as well as sporting applications.

Mounting solutions

Here are some compatible mounting solutions.

Inspiration

Please note that displayed media files highlight selected sight model and not always the mount configuration and accessories included in selected item number.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Mounting specifications
  • Physical Information
  • Technology Information
  • Environmental Information
  • Documents and zeroing targets

General specifications

Size L x W x H
Size L x W x H
47 x 34 x 37 mm / 1.9 x 1.3 x 1.5 in
Weight
Weight
74 g / 2.6 oz
Dot size
Dot size
9 MOA
Magnification
Magnification
1X - No Magnification
NVD compatible
NVD compatible
No
Transmission
Transmission
Average 60% in the range 420 - 700 nm
Eye relief
Eye relief
Unlimited
Mounting solution
Mounting solution
Interchangeable Base Plates to accommodate most rib sizes
Mounting platform
Mounting platform
Shotgun Rib with width 6.0 - 12.0 mm and ventilated rib thickness 1.3 - 3.6 mm

Optical Information

Dot size
9 MOA
* MOA (minute of angle)
1 MOA ≈ 30 mm at 100 meters ≈ 1 in at 100 yards
Magnification
1X - No Magnification
NVD compatible
No
Transmission
Average 60% in the range 420 - 700 nm
Eye relief
Unlimited
Dot color
Red
Light source wavelength
650 nm red light
Optical coating
Anti-reflex coating all surfaces and multilayer coating objective lens
Clear aperture
15 × 15 mm / 0.59 × 0.59 in
Parallax
Operationally parallax free - No centering required
Diode
LED (Light Emitting Diode) totally eye safe

Power Source Information

Battery life
50,000 h at daylight setting 6 (15,000 Lux, room temperature)
Battery type
CR2032, 3V, Lithium
Power switch
Push Buttons
Daylight settings (DL)
10

Mounting specifications

Torque - Mount to sight
3.0 Nm / 27 in-lbs
Torque - Mount to rail
3.0 Nm / 27 in-lbs
Mounting solution
Interchangeable Base Plates to accommodate most rib sizes

Physical Information

Material housing and tube
Aluminium, Integrated Mount: Reinforced Polymer
Lens covers
Not Included
Adjustment 1 click =
1 click = 20 mm at 100 m / 0.7 in at 100 yds
Color housing
Black
Surface finish housing
Anodized, Semi-matte
Size L x W x H - Sight only
47 x 34 x 37 mm / 1.9 x 1.3 x 1.5 in
Size L x W x H
47 x 34 x 37 mm / 1.9 x 1.3 x 1.5 in
Weight - Optic only
68 g / 2.4 oz
Weight
74 g / 2.6 oz

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Environmental Information

Water resistant
5 m / 15 ft
Operating temperature
- 30°C to + 60°C / - 20°F to + 140°F
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
