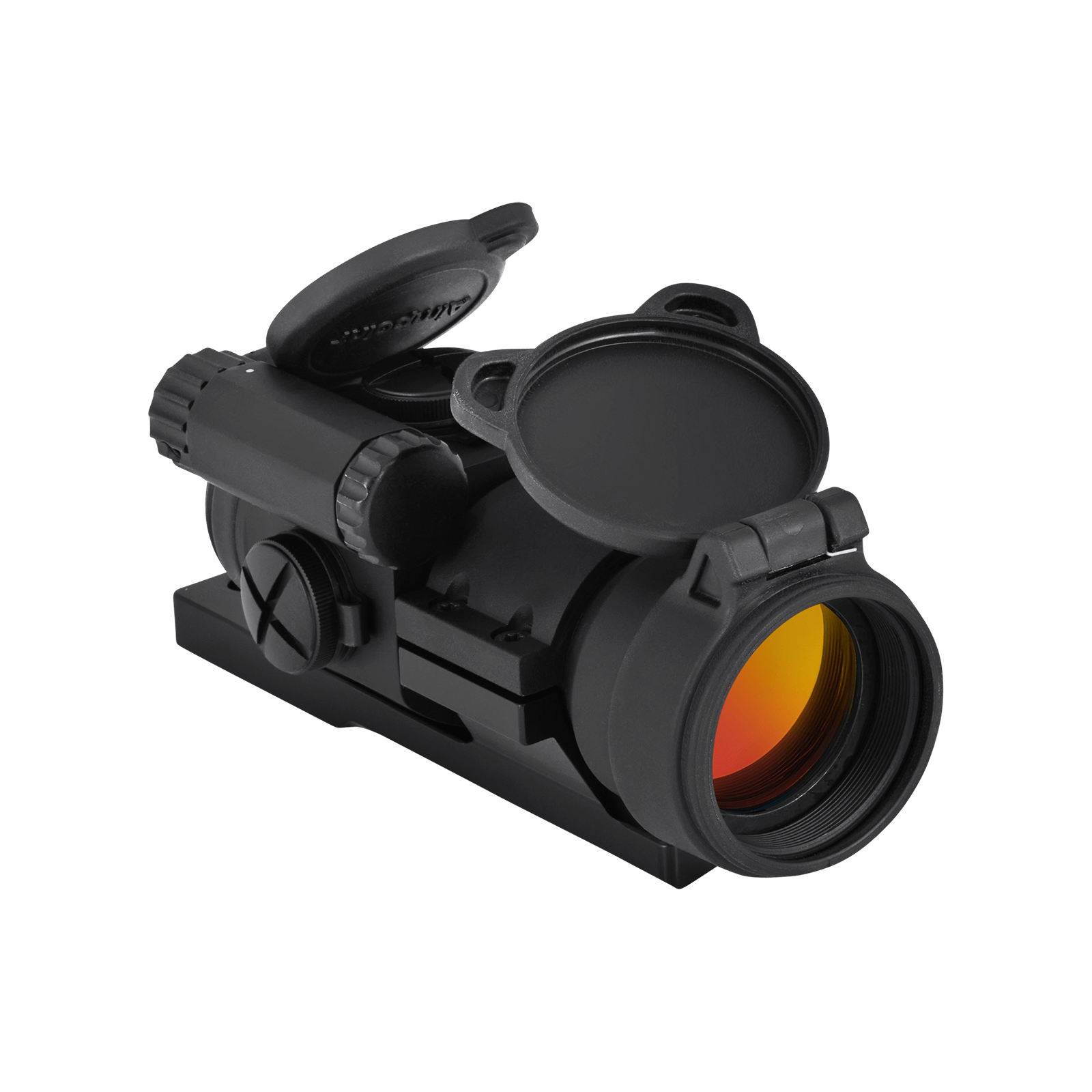

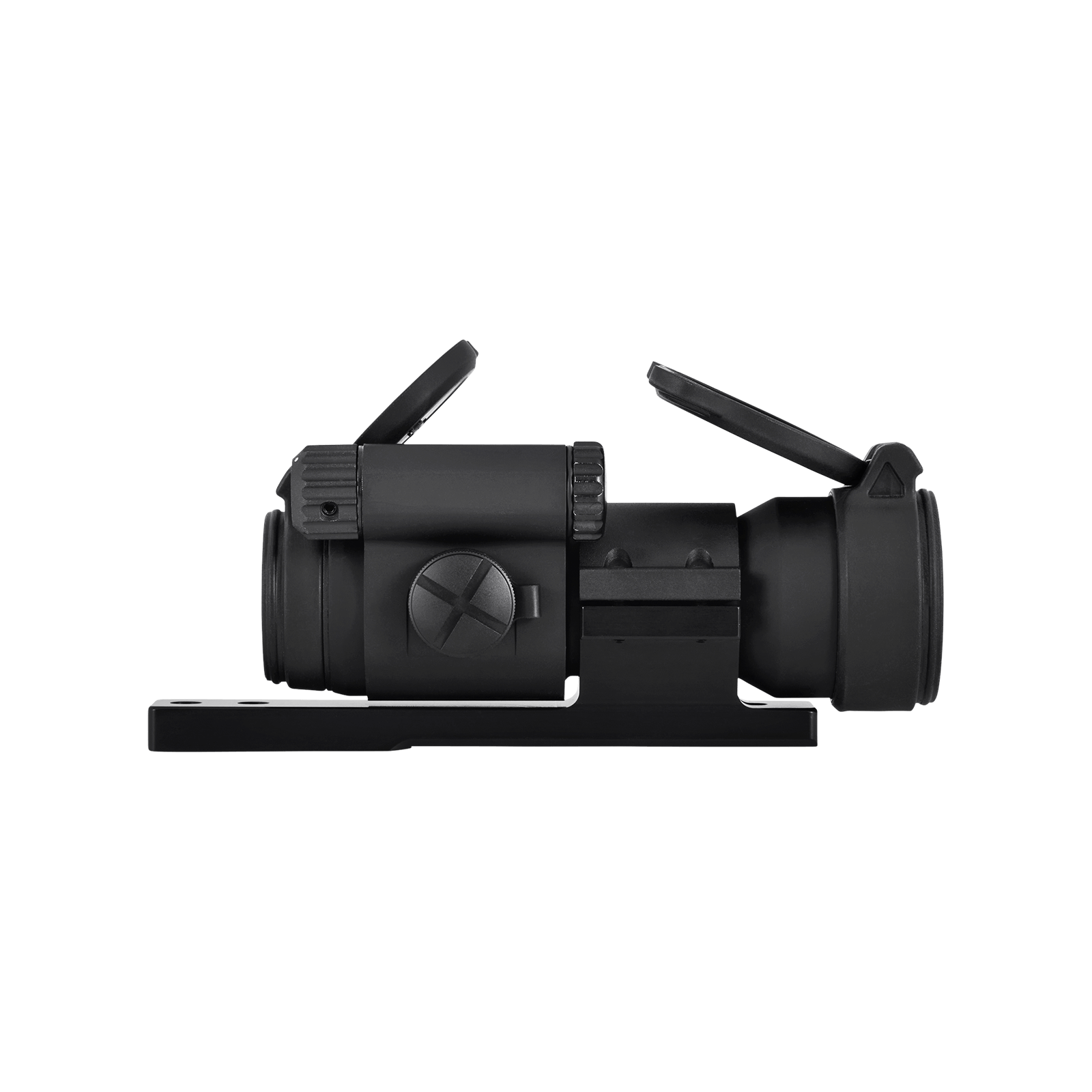

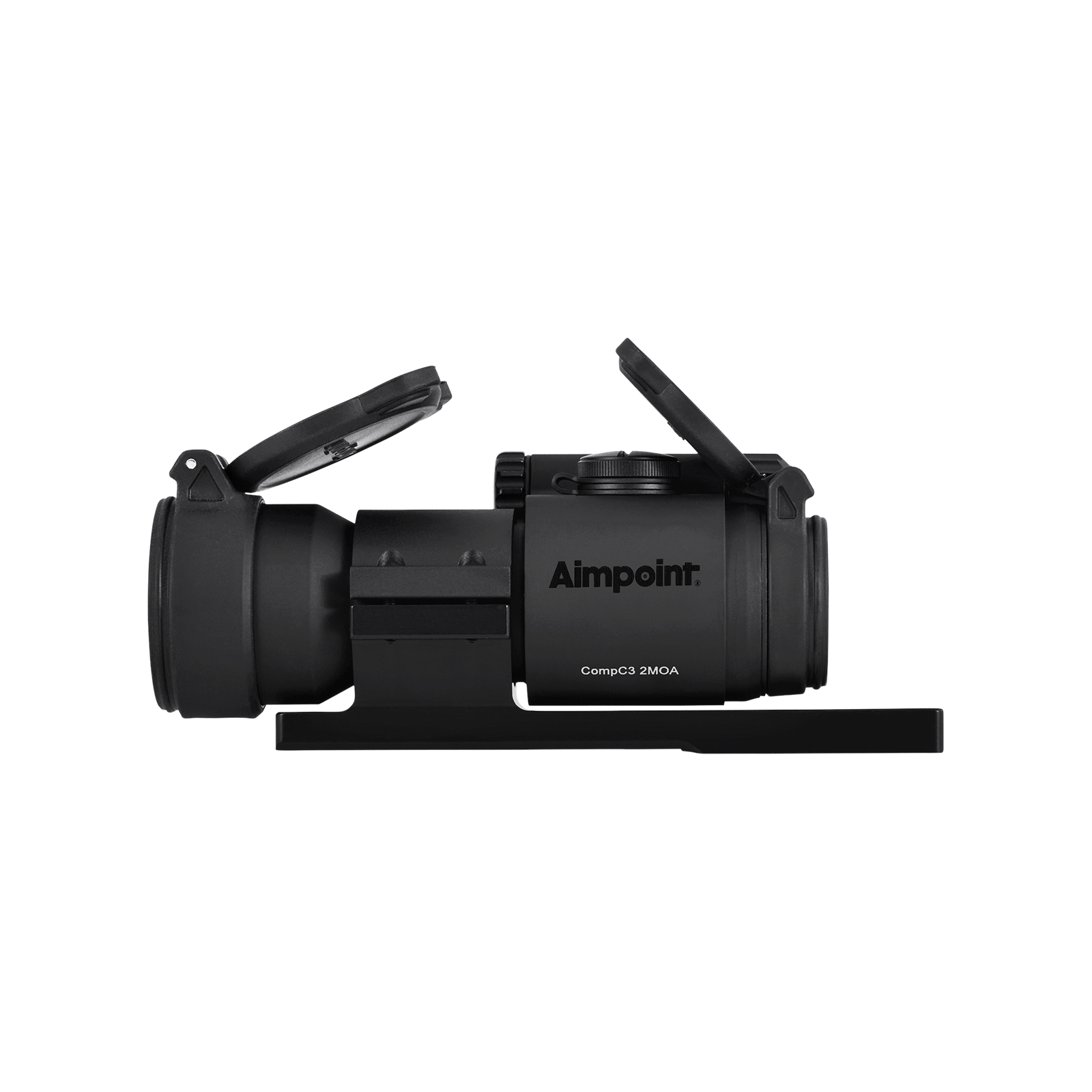

Comp™ C3 2 MOA - Red dot reflex sight with mount for semi-automatic rifles - 1
Comp™ C3 2 MOA - Red dot reflex sight with mount for semi-automatic rifles - 2
Comp™ C3 2 MOA - Red dot reflex sight with mount for semi-automatic rifles - 3
Comp™ C3 2 MOA - Red dot reflex sight with mount for semi-automatic rifles - 4
Comp™ C3 2 MOA - Red dot reflex sight with mount for semi-automatic rifles - 5

Intended use

  • Hunting

    Hunting

Comp™ C32 MOA - Red dot reflex sightwith mount for semi-automatic rifles

#200245

Select configuration
  • 50,000 hours (over 5 years) of constant operation on one battery

  • Submersible to 5 meters (15 feet)

  • Weight 192 g (6.8 oz) sight only

  • Ideal for use on rifles with short to standard actions, shotguns, semi-automatic rifles, and crossbows

  • Height of Optical Axis 25 mm (1.0 in) measured from top surface of mechanical interface

  • 9 position rotary intensity adjustment

  • 2 MOA dot size

Product description

Aimpoint® Comp™ C3 is the lightest sight in its class and was specifically designed to be used whenever you need a compact sight with a 30 mm tube diameter. This sight has a precise 2 MOA dot and a is member of the COMP series sights - recognized leader for the professional market. This COMP C3 model comes with a mount for semi-automatic rifles (Browning Bar, Maral, Winchester SXR, Benelli ARGO) is attached directly to the action. The mount can also be bought separately, Item No. 200255.

The AIMPOINT COMP C3 is a compact sight with the same high quality and performance as sights for the professional market.

Flip-up lens covers, solid / black, are included as standard in sights produced after January 2024. If produced before bikini lens cover was included.

Mounting solutions

Here are some compatible mounting solutions.

Inspiration

Please note that displayed media files highlight selected sight model and not always the mount configuration and accessories included in selected item number.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Mounting specifications
  • Physical Information
  • Technology Information
  • Environmental Information
  • Documents and zeroing targets

General specifications

Size L x W x H
Size L x W x H
150 x 53 x 57 mm / 5.9 x 2.1 x 2.2 in
Weight
Weight
296 g / 10.4 oz
Dot size
Dot size
2 MOA
Eye relief
Eye relief
Unlimited
Magnification
Magnification
1X - No Magnification
Mounting platform
Mounting platform
Browning Bar / Maral / BLR, Winchester SXR, Benelli ARGO
Mounting solution
Mounting solution
CompC3 Mount for Semi-Automatic Rifles
NVD compatible
NVD compatible
No
Transmission
Transmission
Average 60% in the range 420 - 700 nm

Optical Information

Dot size
2 MOA
* MOA (minute of angle)
Magnification
1X - No Magnification
NVD compatible
No
Transmission
Average 60% in the range 420 - 700 nm
Eye relief
Unlimited
Dot color
Red
Light source wavelength
650 nm red light
Parallax
Operationally parallax free - No centering required
Diode
LED (Light Emitting Diode) totally eye safe

Power Source Information

Battery life
50,000 h at daylight setting 7 (15,000 Lux, room temperature)
Battery type
1/3N, 3V, Lithium
Power switch
Rotary Switch
Daylight settings (DL)
9

Mounting specifications

Torque - Mount to sight
1.5 Nm / 13 in-lbs
Mounting solution
Comp™ C3 mount for semi-automatic rifles

Physical Information

Weight
296 g
Material housing and tube
Aluminum
Lens covers
Flip-up lens covers, solid
Weight - Optic only
193 g
Adjustment 1 click =
Color housing
Red
Surface finish housing
Anodized, Semi-matte

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Environmental Information

Water resistant
5 m / 15 ft
Operating temperature
- 30°C to + 60°C / - 20°F to + 140°F
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Temperature shock
Operable after a temperature shock between - 30°C and + 60°C (- 22°F and + 140°F)
