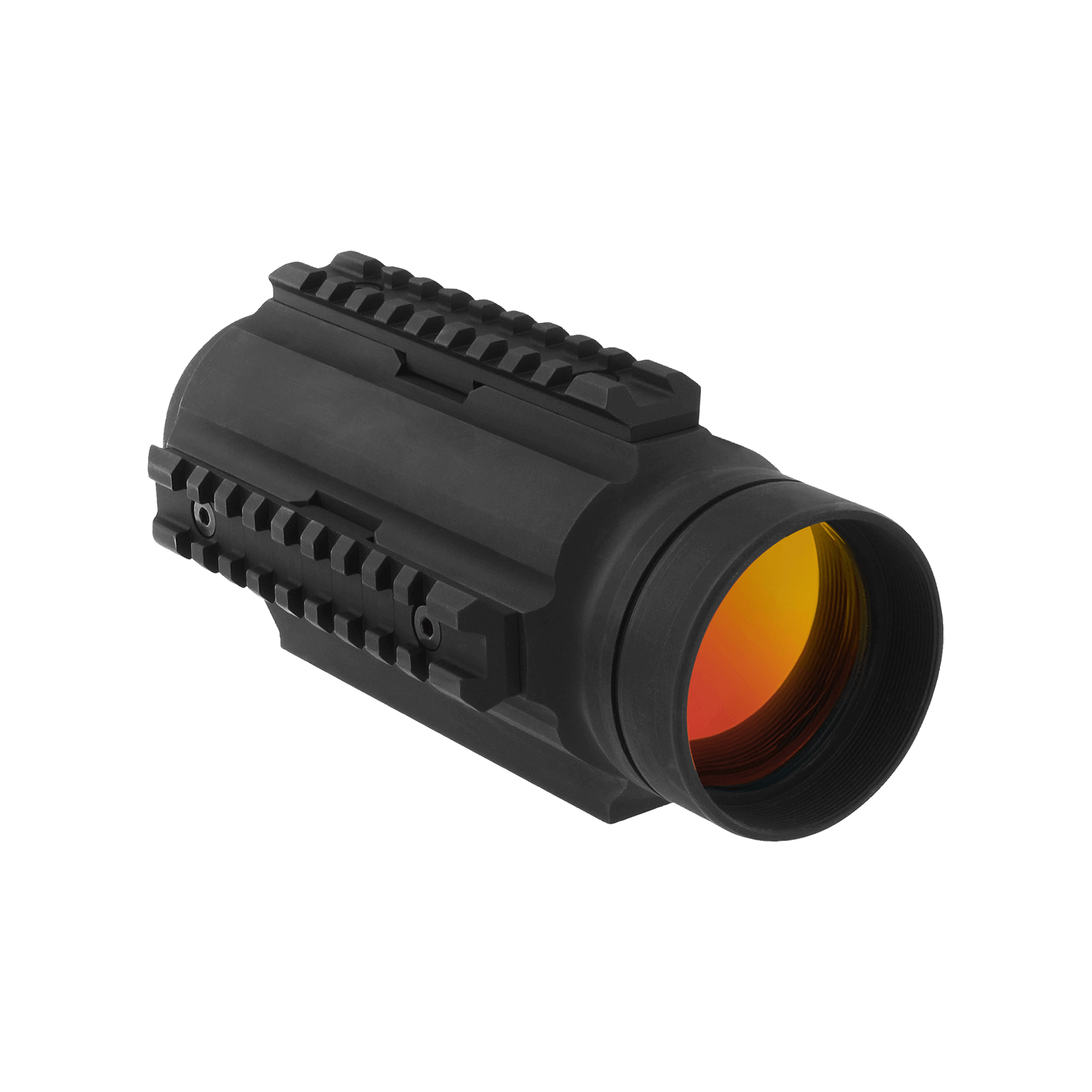

MPS™ 3 2 MOA - Red dot reflex sight without mount - 1
MPS™ 3 2 MOA - Red dot reflex sight without mount - 2

Intended use

  • Military

    Military

MPS™ 32 MOA - Red dot reflex sightwithout mount

#11704

Select configuration
  • Export License/End-user Certificate required for this product.

  • 80,000 hours (over 8 years) of constant operation

  • Submersible to 1 meter (3 feet)

  • Weight 725 g (25.6 oz) sight only

  • 7 night vision compatible settings and 9 daylight settings

  • 2 MOA dot size

Product description

The Aimpoint® MPS™ 3 is a passive electronic reflex collimator sight designed primary for use on medium and heavy machine guns and crew served support weapons.

Developed primarily for mounted weapons operations, the MPS 3 is ideal for use on land vehicles, helicopters or fast attack boats and ships. It is designed to stand up to heavy weapons recoil. The AIMPOINT MGMount has been specifically designed to use with the MPS 3. It contains a user friendly 3-step ballistic compensator with preset range adjustment which can be quickly changed by the operator without losing eye contact with the target, even while wearing gloves. Has to be ordered separately.

Click here to request more information >>

Mounting solutions

Here are some compatible mounting solutions.

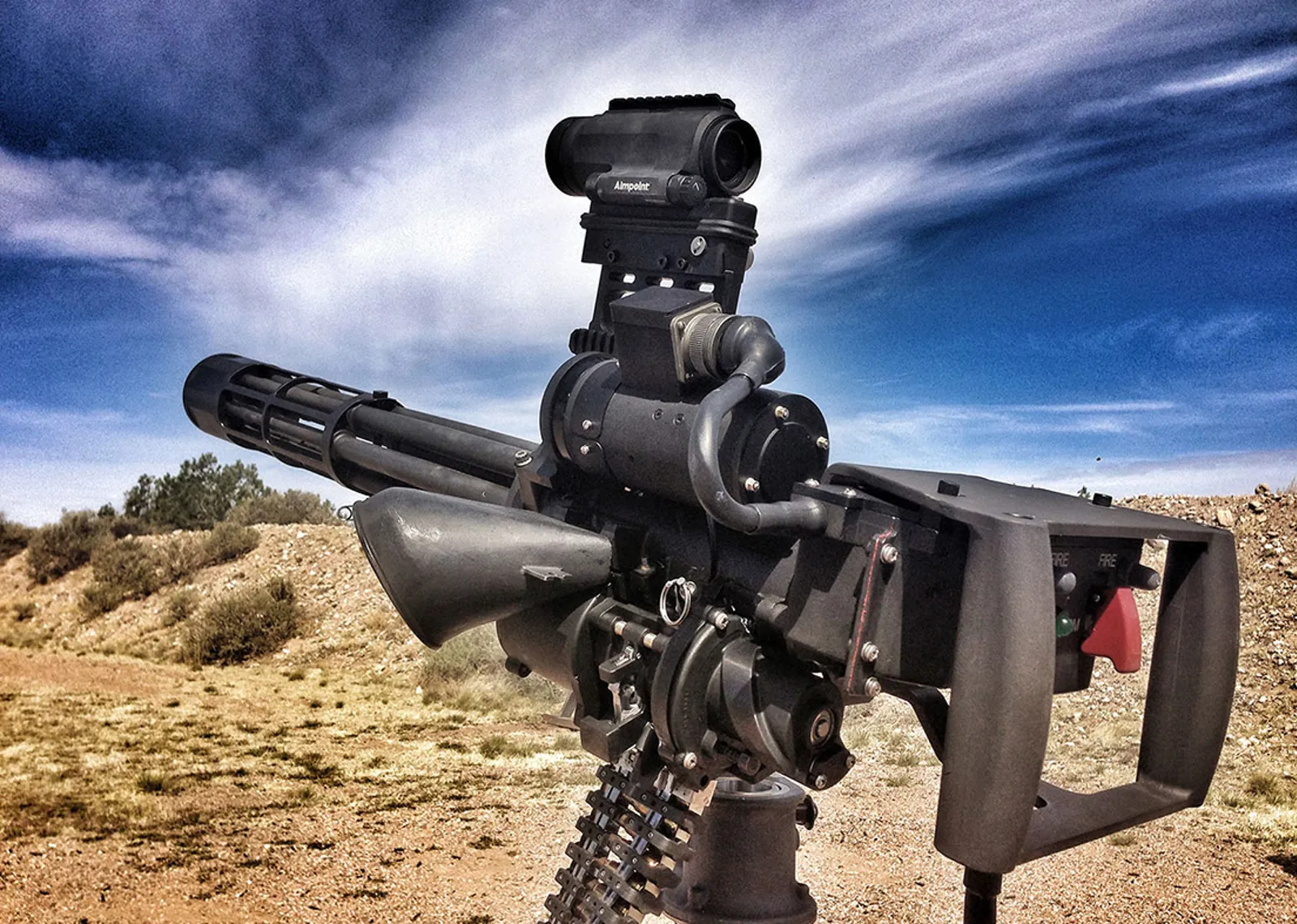

Inspiration

Please note that displayed media files highlight selected sight model and not always the mount configuration and accessories included in selected item number.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Mounting specifications
  • Physical Information
  • Technology Information
  • Environmental Information
  • Documents and zeroing targets

General specifications

Size L x W x H
Size L x W x H
175 x 86 x 82 mm / 6.9 x 3.4 x 3.2 in
Weight
Weight
736 g / 26.0 oz
Dot size
Dot size
2 MOA
Eye relief
Eye relief
Unlimited
Magnification
Magnification
1X - No Magnification
Mounting solution
Mounting solution
Not Included
NVD compatible
NVD compatible
Yes
Transmission
Transmission
Average 70% in the range 420 - 900 nm

Optical Information

Dot size
2 MOA
* MOA (minute of angle)
Magnification
1X - No Magnification
NVD compatible
Yes
Transmission
Average 70% in the range 420 - 900 nm
Eye relief
Unlimited
Dot color
Red
Light source wavelength
650 nm red light
Optical coating
Anti-reflex coating all surfaces and multilayer coating objective lens
Parallax
Operationally parallax free - No centering required
Diode
LED (Light Emitting Diode) totally eye safe

Power Source Information

Battery life
80,000 h at setting 12 (15,000 Lux, room temperature)
Battery type
AA, 1.5 - 5.0V, Alkaline / Lithium
Power switch
Rotary Switch
Daylight settings (DL)
9

Mounting specifications

Mounting solution
Not Included

Physical Information

Weight
736 g
Material housing and tube
High Strength Aluminum
Lens covers
Bikini Lens Cover, Rubber, Solid
Weight - Optic only
736 g
Adjustment 1 click =
Color housing
Red
Surface finish housing
Anodized, Semi-matte

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Environmental Information

Water resistant
1 m / 3 ft
Operating temperature
- 45°C to + 71°C / - 49°F to + 160°F
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Temperature shock
Operable after a temperature shock between - 45°C and + 71°C (- 49°F and + 160°F)
Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Vibration
Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
Shock
Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
