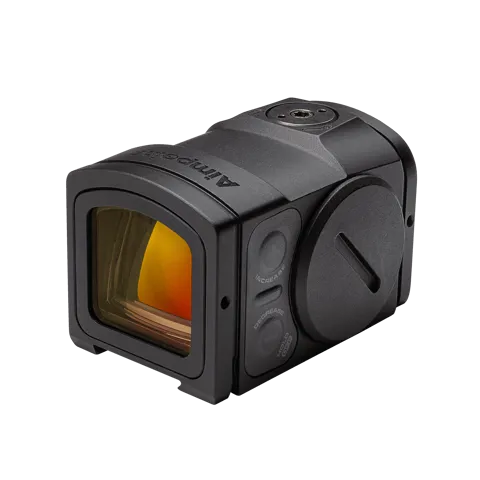

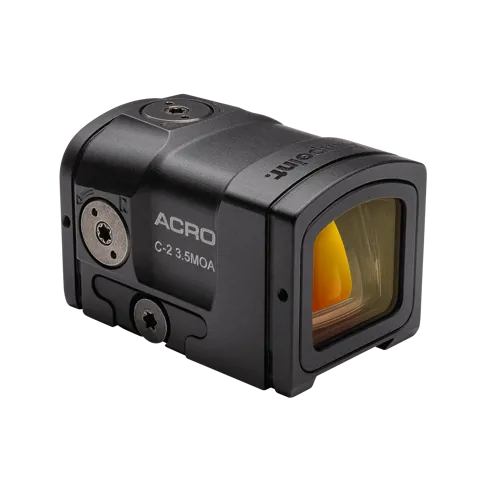

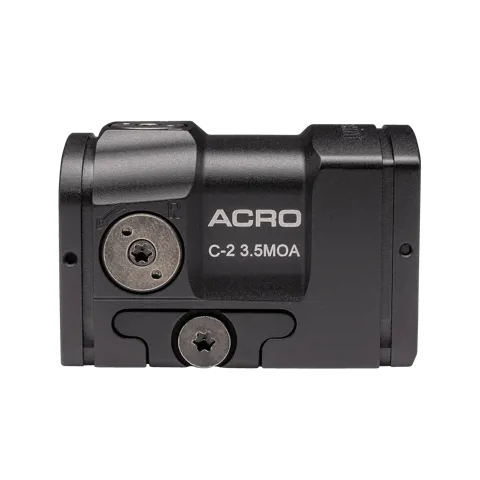

Acro C-2™

3.5 MOA - Red Dot Reflex Sight

with Integrated Acro™ Interface

  • 3.5 MOA dot size
  • 50,000 hours (over 5 years) of operation on one battery
  • 2 night vision compatible settings and 8 daylight settings
  • Weight 60 g (2.1 oz) sight only
  • Submersible to 5 meters (15 feet)
  • Height of Optical Axis 14 mm (0.6 in) measured from top surface of mounting platform
  • Optimized for pistol and applications which require a low-profile red dot system

INCLUDES: CR2032 Battery, Aimpoint® Tool


Select dot size
3.5 MOA
Application areas

Hunting

Sport Shooting

Home Defense

Secondary Optic

Product

overview

Launched: 2021

Key

Features

  • Fully enclosed system
  • Variety of mounting options sold separately
  • New CR2032 battery that will last for 5 years of continuous use
  • Designed for direct integration in combination with mount plates onto optic ready pistol slides
  • Fully enclosed housing protects all electronic components of the sight from all elements
  • Easily zeroed with the Aimpoint tool that comes with the sight. Adjustment clicks you can hear and feel
  • Can be mounted on any Aimpoint Micro sight mount via the Acro mount plate with Micro interface
  • Can be used as a secondary sight on magnifying rifle scopes with the Acro adapter rings
  • Battery installation while optic is still mounted on weapon
  • Anodized high strength aluminum housing, semi-matte black
  • NVD compatible

Technical

Specifications

Size L x W x H

Size L x W x H

47 x 33 x 31 mm

Size L x W x H

Size L x W x H

1.9 x 1.3 x 1.2 in

Weight

Weight

60 g (without mounting solution)

Weight

Weight

2.1 oz (without mounting solution)

Dot Size

Dot Size

3.5 MOA

Magnification

Magnification

1X - No Magnification

Night Vision Device (NVD) Compatible

Night Vision Device (NVD) Compatible

Yes

Transmission

Transmission

Average 60% in the range 420 - 700 nm

Eye Relief

Eye Relief

Unlimited

Mounting Solution

Mounting Solution

Integrated Acro™ Interface

Mounting Platform

Mounting Platform

Acro™ Interface


Operating Principle Reflex collimator sight - red dot sight

Dot Size 3.5 MOA
Magnification 1X - No Magnification
Night Vision Device (NVD) Compatible Yes
Transmission Average 60% in the range 420 - 700 nm
Eye Relief Unlimited
Diode LED (Light Emitting Diode) totally eye safe
Dot Color Red
Light Source Wavelength 650 nm red light
Optical Coating Anti-reflex coating all surfaces and multilayer coating objective lens
Clear Aperature 15 × 15 mm / 0.59 × 0.59 in
Parallax Absence of parallax - No centering required

Battery Life 50,000 h at daylight setting 6 (15,000 Lux, room temperature)
Battery Type CR2032, 3V, Lithium
Battery Quantity 1
Battery Size CR2032

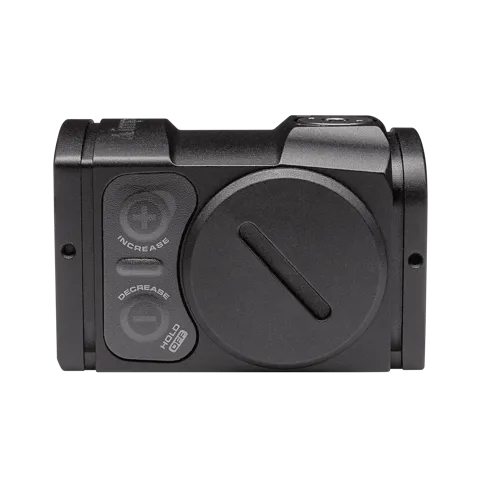

Power Switch Push Buttons
Night Vision Device (NVD) Settings 2
Daylight (DL) Settings 8
Start Setting Position 7

Size L x W x H 47 x 33 x 31 mm
Size L x W x H 1.9 x 1.3 x 1.2 in
Weight 60 g (without mounting solution)
Weight 2.1 oz (without mounting solution)
Size L x W x H - Sight Only 47 x 33 x 31 mm
Size L x W x H - Sight Only 1.9 x 1.3 x 1.2 in
Weight - Sight Only 60 g
Weight - Sight Only 2.1 oz
Material Housing and Tube High Strength Aluminum
Surface Finish Housing Anodized, Semi-Matte
Color Housing Black
Lens Covers Not Included
Height of Optical Axis 14 mm / 0.6 in measured from top surface of mounting platform
Adjustment 1 Click = 20 mm at 100 m / 0.7 in at 100 yds

Submersible to 5 m/ 15 ft
Laser No Laser Emission
Radioactive Material None
Temperature Range Operation - 30°C to + 60°C / - 20°F to + 140°F
Temperature Range Storage - 51°C to + 71°C / - 60°F to + 160°F
Temperature Shock Operable after a temperature shock between - 30°C and + 60°C / - 22°F and + 140°F
Humidity - Operable during and after Humidity. Limits: Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Shock - Operable before and after shock. Limits: Tested with 20,000 rounds mounted on a .40 S&W caliber pistol slide
Vibration - Withstands vibration. Limits: Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
Chemical Resistance Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents.

Mounting Solution Integrated Acro™ Interface
Mounting Platform Acro™ Interface
Torque - Mount to Sight 3.0 Nm / 27 in-lbs
Torque - Mount to Rail 3.0 Nm / 27 in-lbs

All specifications are typical and subject to change without notice. © 2021 Aimpoint AB. Ed. 16-Sep-21
