PRO™ - Patrol Rifle Optic 2 MOA - Red dot reflex sight with standard spacer and QRP2 mount - 1
PRO™ - Patrol Rifle Optic 2 MOA - Red dot reflex sight with standard spacer and QRP2 mount - 2
PRO™ - Patrol Rifle Optic 2 MOA - Red dot reflex sight with standard spacer and QRP2 mount - 3
PRO™ - Patrol Rifle Optic 2 MOA - Red dot reflex sight with standard spacer and QRP2 mount - 4

Intended use

  • Law Enforcement

    Law Enforcement

  • Shooting Sports

    Shooting Sports

  • Personal Protection

    Personal Protection

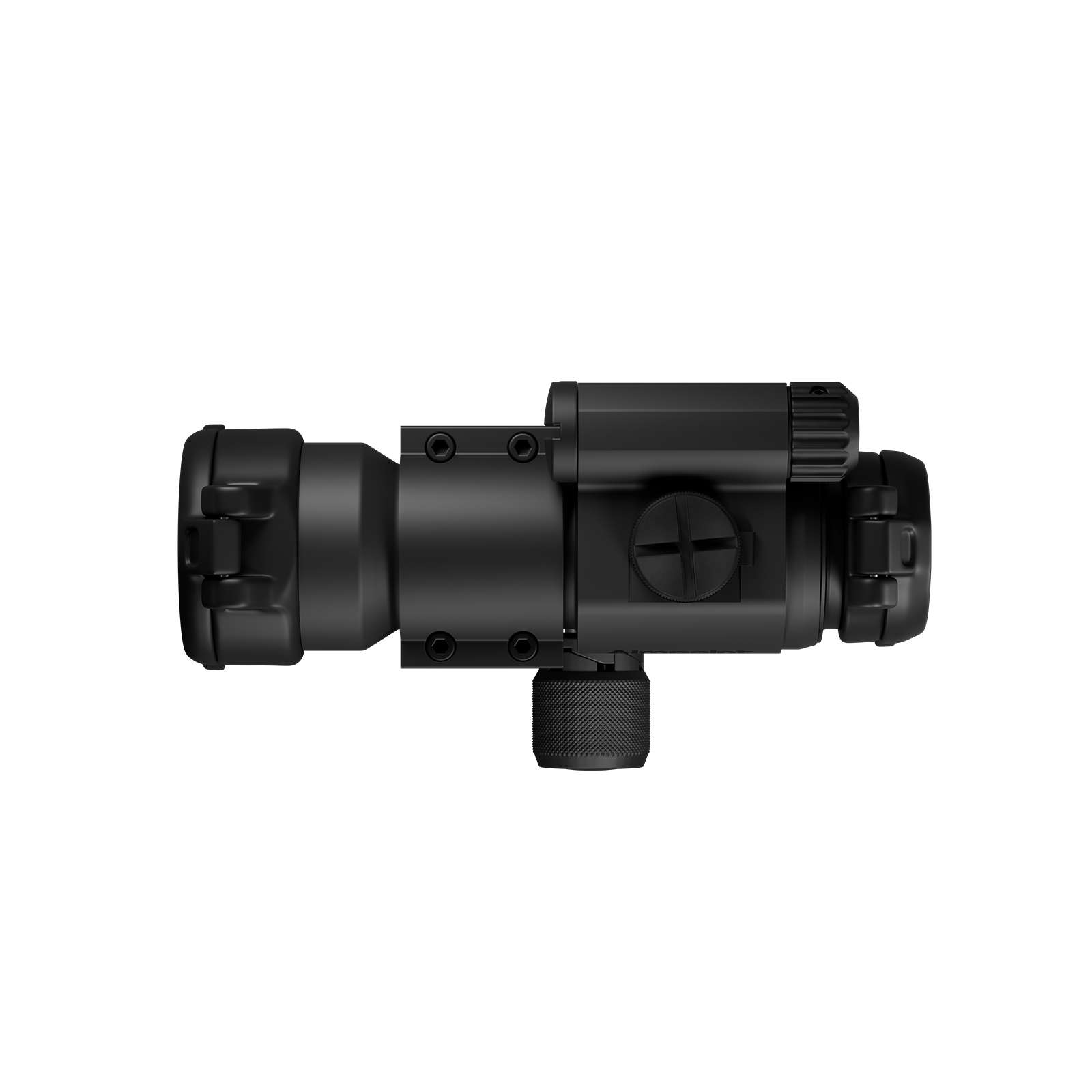

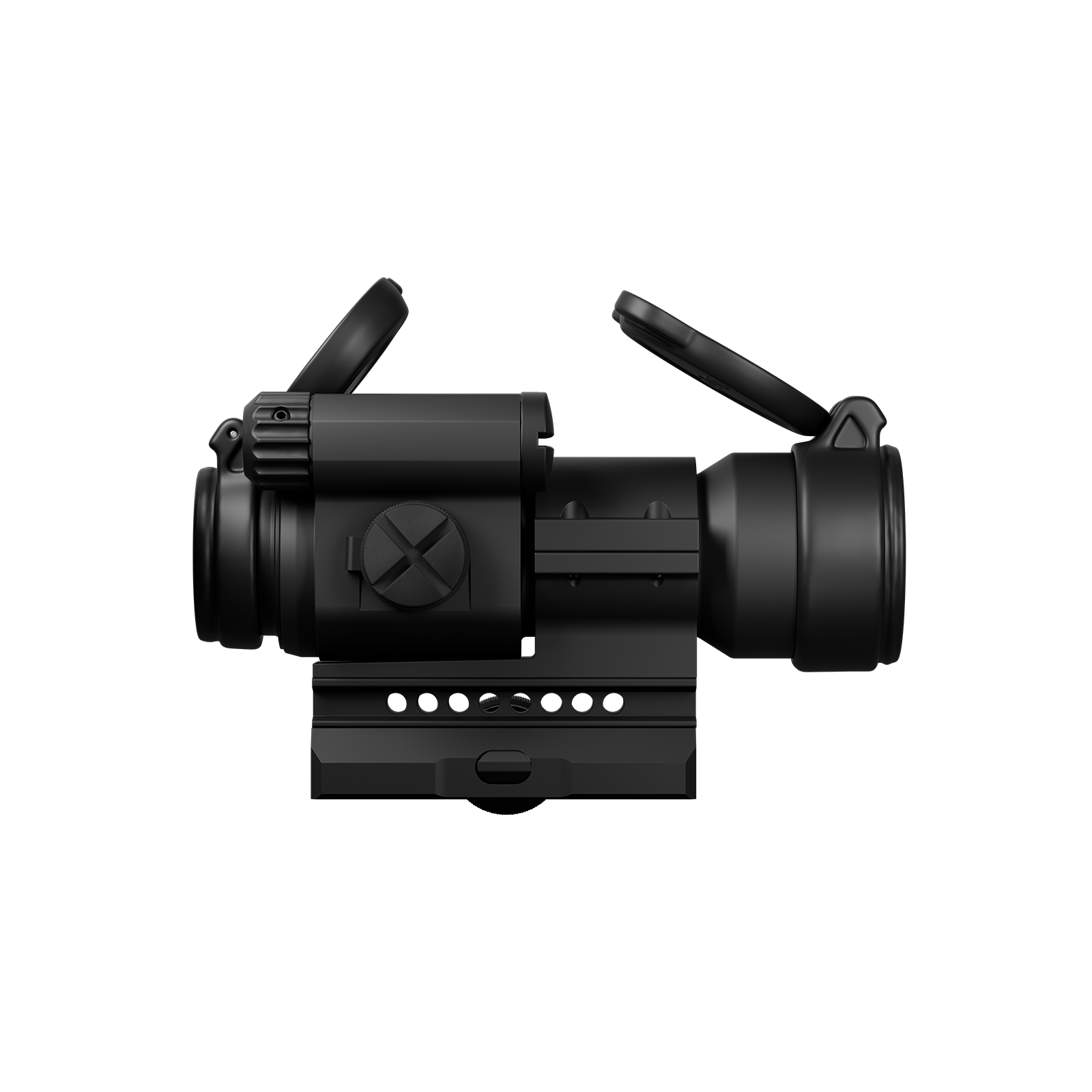

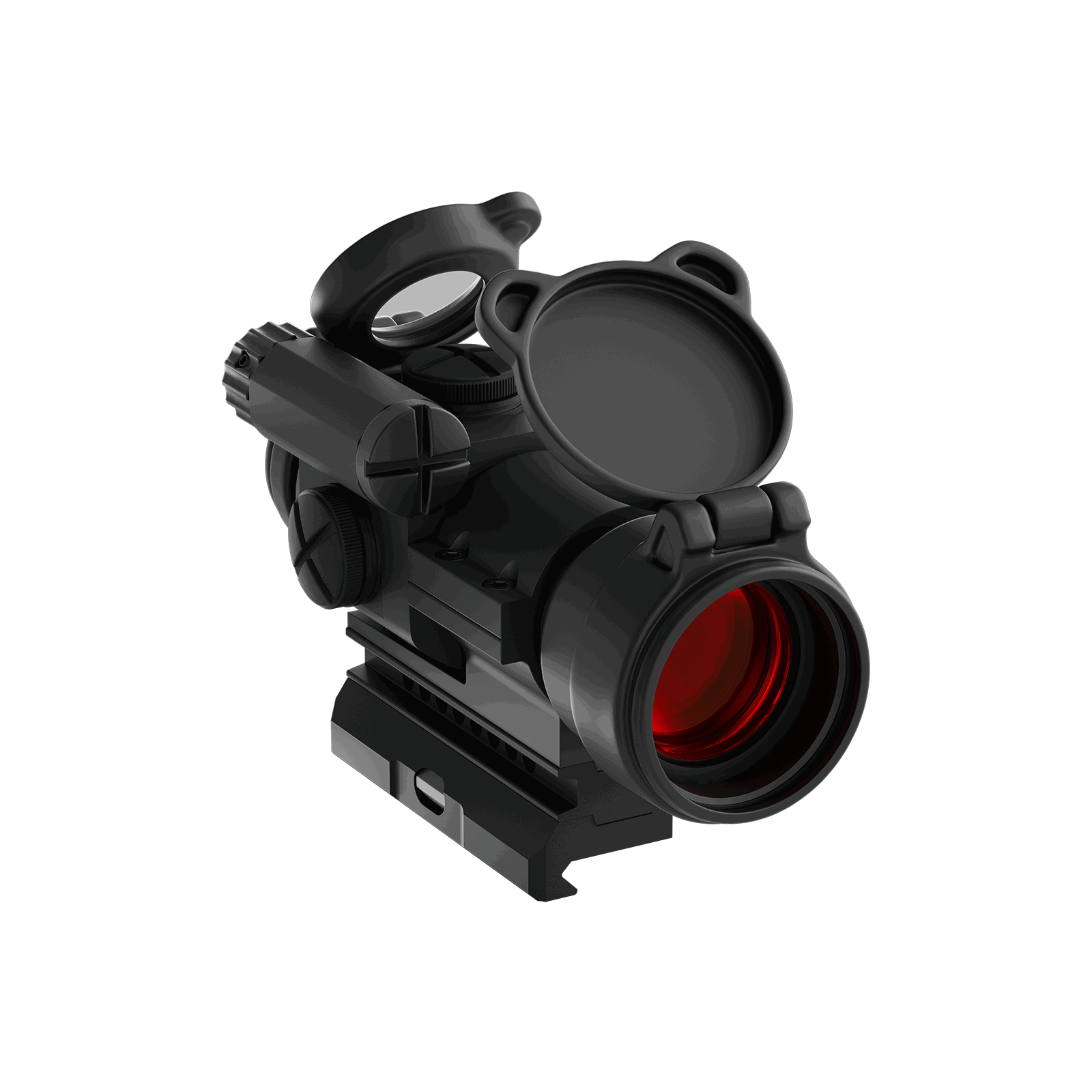

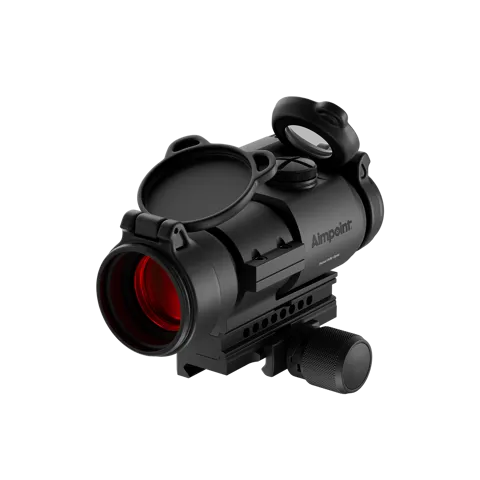

PRO™ - Patrol Rifle Optic2 MOA - Red dot reflex sightwith standard spacer and QRP2 mount

#12841

Select configuration
  • 30,000 hours (over 3 years) of constant operation

  • Submersible to 45 meters (150 feet)

  • Weight 192 g (6.8 oz) sight only, 360 g (12.7 oz) with mount

  • Front lens opening is threaded for addition of killFlash® anti-reflective device

  • Height of Optical Axis 39 mm (1.5 in) measured from top surface of mechanical interface

  • 4 night vision compatible settings and 6 daylight settings

  • 2 MOA dot size

Product description

Aimpoint® Patrol Rifle Optic (PRO™) was built to withstand the challenging conditions faced by professional users.

The PRO has a 2 MOA red dot that allows for fast target acquisition. The hard anodized, high strength aluminum housing provides incredible protection against any physical abuse the sight may encounter. Battery and adjustment cap retainer straps means you will never lose your pieces.

This PRO sight contains a QRP2 mount and a standard AR15 spacer which can be removed. It is also equipped with flip covers, a black front flip cover and a transparent rear flip cover that allows the user to engage a target with both lens covers closed in an emergency situation.

The rugged AIMPOINT PRO sight comes in a ready-to-go kit at a budget friendly price, a concept that appeals strongly to Law Enforcement units.

Inspiration

Please note that displayed media files highlight selected sight model and not always the mount configuration and accessories included in selected item number.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Mounting specifications
  • Physical Information
  • Technology Information
  • Environmental Information
  • Documents and zeroing targets

General specifications

Size L x W x H
Size L x W x H
132 x 72 x 81 mm / 5.2 x 2.8 x 3.2 in
Weight
Weight
366 g / 12.9 oz
Dot size
Dot size
2 MOA
Eye relief
Eye relief
Unlimited
Magnification
Magnification
1X - No Magnification
Mounting solution
Mounting solution
QRP2 Mount, Base & Top Ring and Standard Spacer
NVD compatible
NVD compatible
Yes
Transmission
Transmission
Average 60% in the range 420 - 700 nm

Optical Information

Dot size
2 MOA
* MOA (minute of angle)
Magnification
1X - No Magnification
NVD compatible
Yes
Transmission
Average 60% in the range 420 - 700 nm
Eye relief
Unlimited
Dot color
Red
Light source wavelength
650 nm red light
Optical coating
Anti-reflex coating all surfaces and multilayer coating objective lens
Parallax
Operationally parallax free - No centering required
Diode
LED (Light Emitting Diode) totally eye safe

Power Source Information

Battery life
30,000 h at daylight setting 7 (15,000 Lux, room temperature)
Battery type
1/3N, 3V, Lithium
Power switch
Rotary Switch
Daylight settings (DL)
6

Mounting specifications

Torque - Mount to sight
2.2 Nm / 20 in-lbs (Ring Top and Base)
Mounting solution
QRP2 mount, base and top ring and standard spacer

Physical Information

Weight
366 g
Material housing and tube
Aluminum
Lens covers
Flip-up Lens Covers, Front Solid and Rear Transparent
Weight - Optic only
194 g
Adjustment 1 click =
Color housing
Red
Surface finish housing
Anodized, Semi-matte

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Environmental Information

Water resistant
45 m / 150 ft
Operating temperature
- 45°C to + 71°C / - 49°F to + 160°F
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Temperature shock
Operable after a temperature shock between - 45°C and + 71°C (- 49°F and + 160°F)
Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Vibration
Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
Shock
Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
