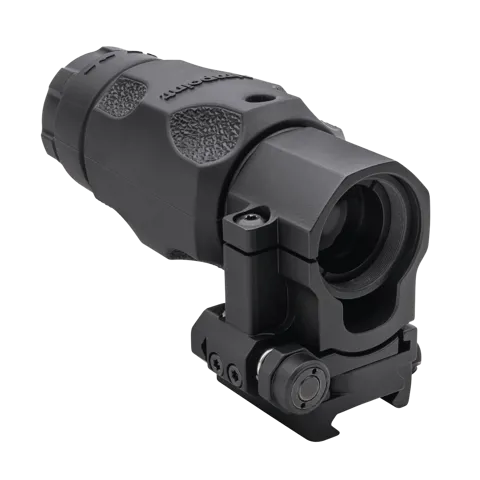

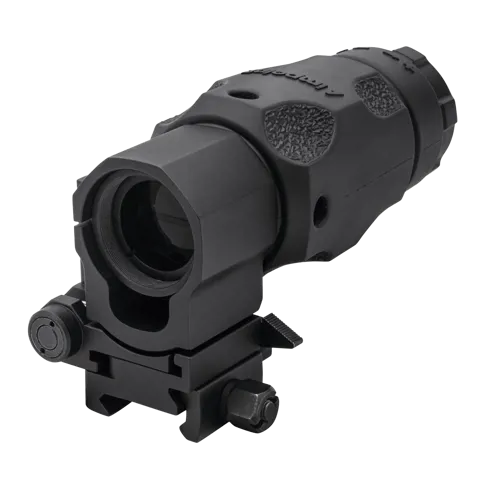

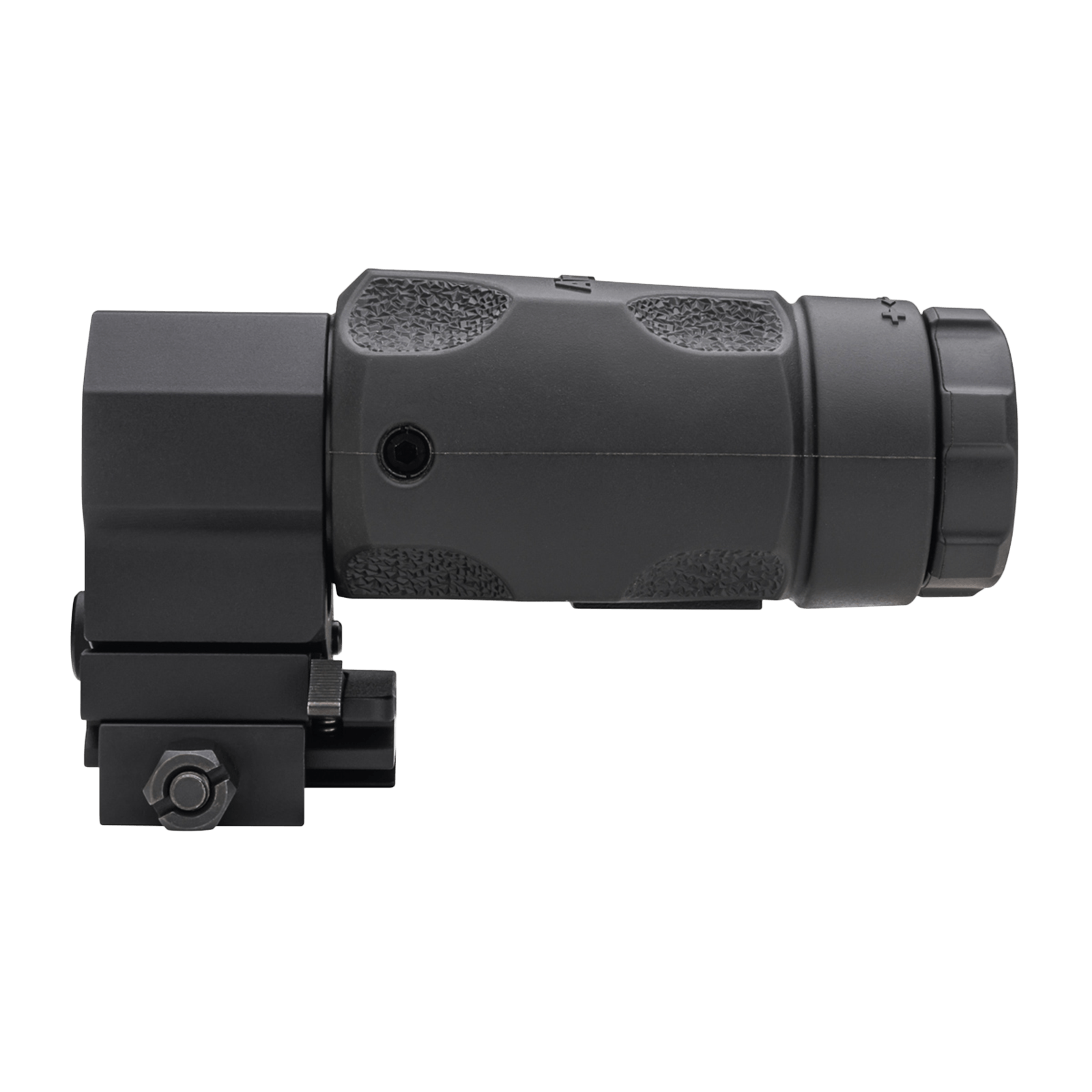

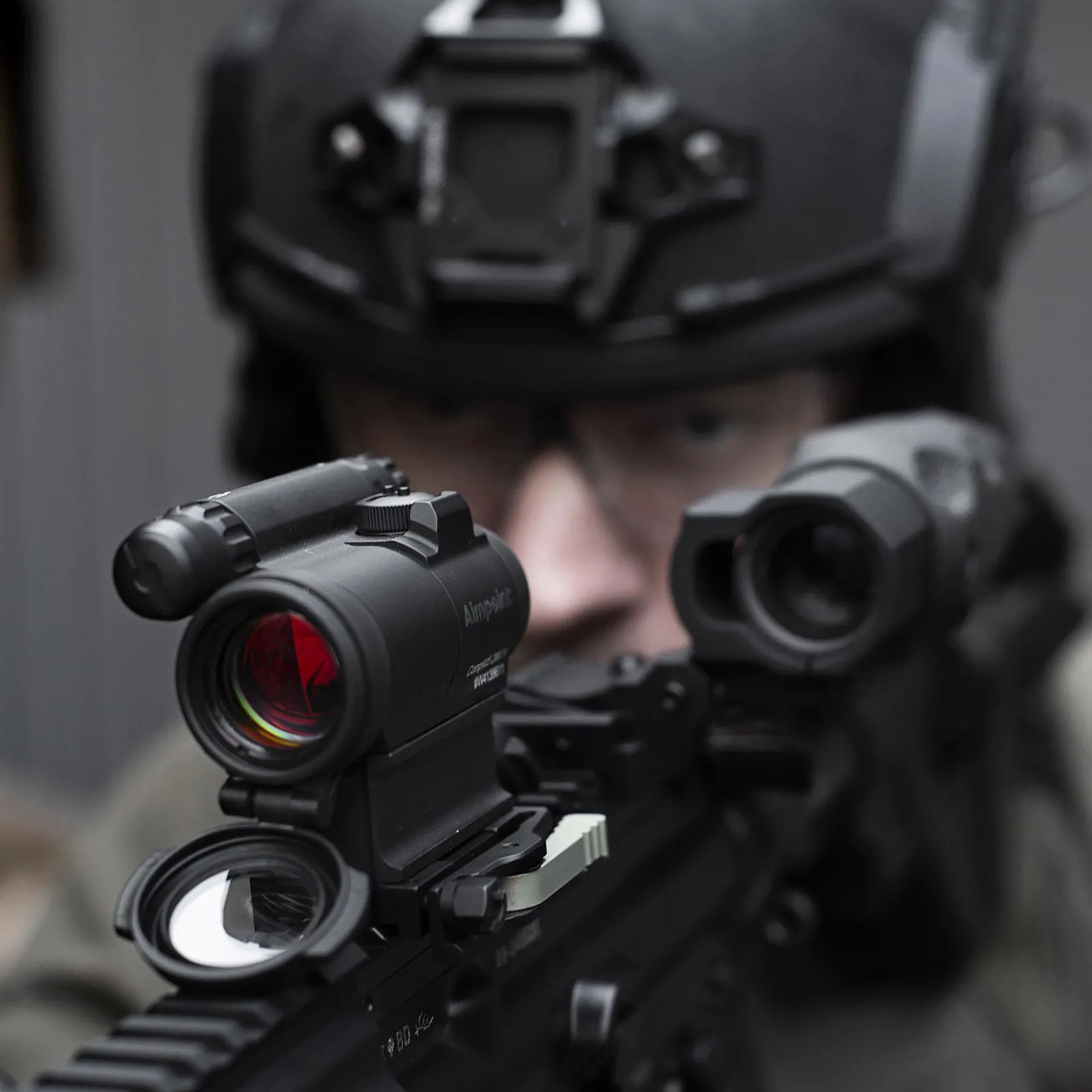

3XMag-1™ Magnifier with FlipMount™ 39 mm and TwistMount™ base

3XMag-1™

#200334

Select configuration

Variable (-3 to +3) dioptric setting
Submersible to 25 meters (80 feet)
Weight 230 g / 8.1 oz (magnifier only)
Compatible with Aimpoint red dot sights for longer range aiming or observation
Ergonomic design for sure grip when used as a handheld observation tool
No re-zeroing needed when shifting between non-magnified and magnified aiming
Height of Optical Axis 39 mm (1.5 in) measured from top surface of mounting platform

Product description

The Aimpoint® 3XMag-1 Magnifier is a 3x power magnifying module built to withstand the demands of professional end-users.

The 3XMag-1 magnifier was optimized for use with Aimpoint® Micro T-2,/H-2, Patrol Rifle Optic, CompM4 series and CompM5 series of sights providing a clear, crisp 2 MOA dot under 3X magnification. Internal optical adjustments make aligning the magnifier and sight quick and easy. These magnifiers utilize the red dot in Aimpoint sights as the aiming reticle, eliminating the need for re-zeroing when shifting between non-magnified and magnified aiming. The 7-degree field of view (FOV) allows for a generous sight picture. A variable (-3 to +3) dioptric setting allows the magnifier to be adapted to the individual’s eye. The 3XMag-1 can also be used as a handheld monocular and the protective rubber cover provides the ideal ergonomic grip.

The 3XMag-1 module gives professional end-users enhanced capability for long-range aiming or observation with a crisp sight picture and a generous field of view.
