Intended use

  • Hunting

    Hunting

  • Home Defense

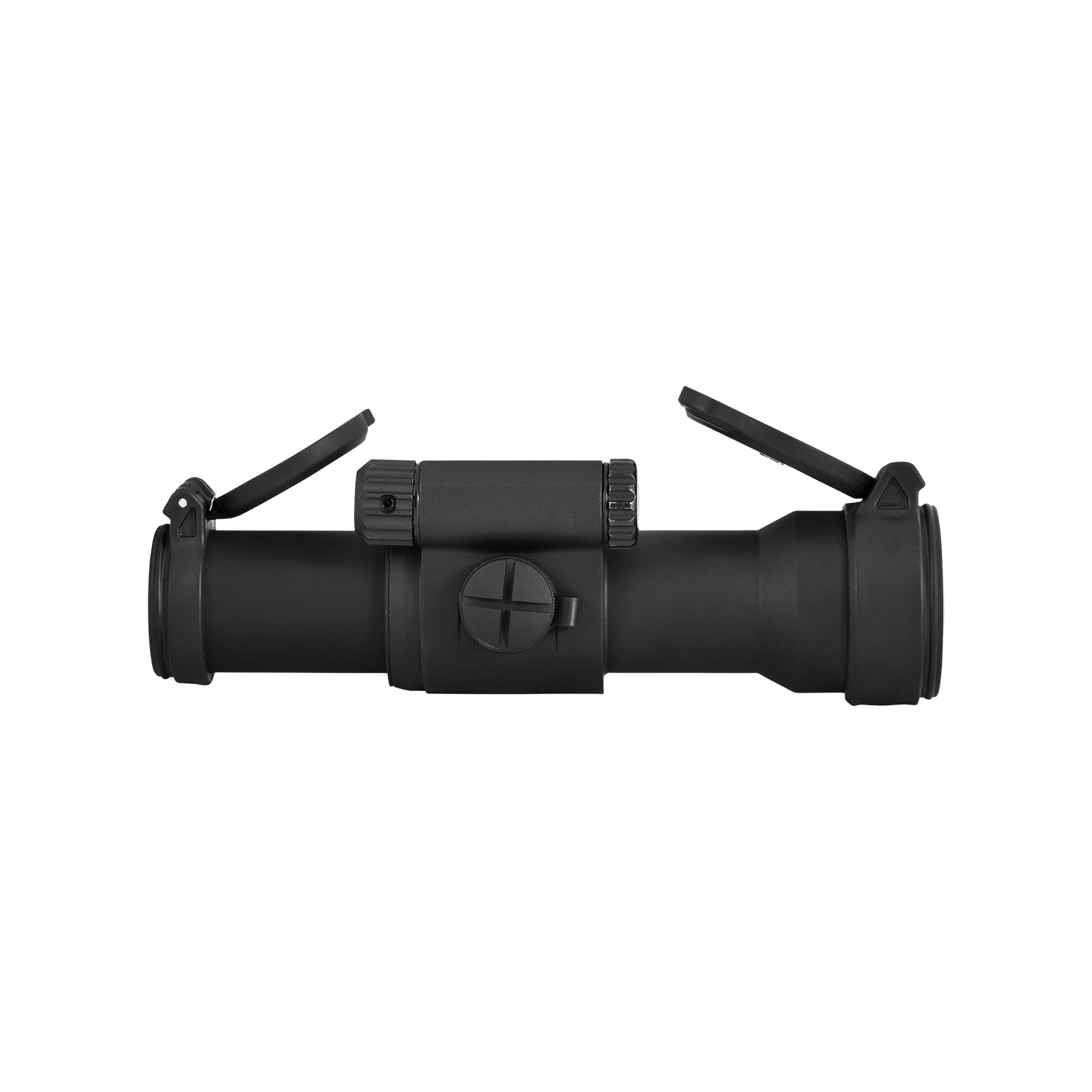

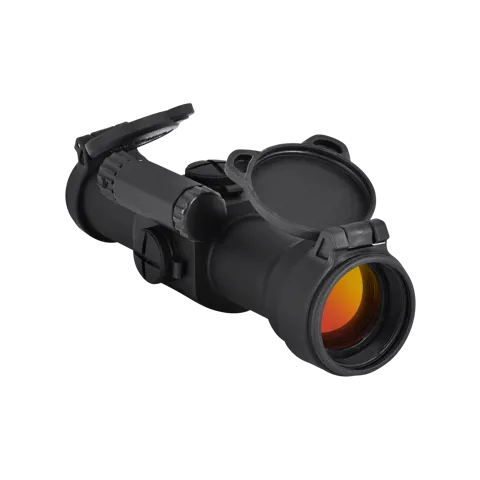

9000™ SC4 MOA - Red dot reflex sight

#11407

  • 50,000 hours (over 5 years) of constant operation on one battery

  • Submersible to 5 meters (15 feet)

  • Weight 206 g (7.3 oz) sight only

  • Ideal for shorter action rifles, semi-automatic firearms, and magnum handguns

  • 10 position rotary intensity adjustment

  • 4 MOA dot size

Read more

Product description

The Aimpoint® 9000™ SC is a versatile and compact red dot reflex sight offering ruggedness and reliability in the field .

The 9000 SC is a medium-length sight primarily designed for use with shorter action rifles, semi-automatic firearms and magnum handguns. This is the short version of the 9000 series. It has the same base construction as the battle proven Comp™ series with an extended long rear tube for 2 ring mounting solution. It is available in 2 and 4 MOA red dot for extreme accuracy and quick target acquistion. This red dot sight is built to handle the harshest environmental conditions that hunters encounter, at an affordable price.

The 9000 SC has a slim design adapted for the harshest conditions.

Sights manufactured after January 2024 come with standard black flip-up lens covers, while earlier models were equipped with bikini-style lens covers. In 2025, this sight model was updated with an improved battery cap (#201028), which is also compatible with sights produced from 2015 to 2024 that were delivered with the previous battery cap (#10631).

Included in the box:

  • 9000™ SC - 4 MOA - Red dot reflex sight
  • DL1/3N battery
  • Aimpoint® tool
  • Black / solid flip-up lens covers

Mounting solutions

Here are some compatible mounting solutions.
Explore more mounting solutions

Inspiration

Please note that displayed media files highlight selected sight model and not always the mount configuration and accessories included in selected item number.

Specifications & documents

General specifications

Size L x W x H
167 x 53 x 53 mm / 6.6 x 2.1 x 2.1 in
Weight
222 g / 7.8 oz
Dot size
4 MOA
Eye relief
Unlimited
Magnification
1X - No Magnification
Mounting solution
Not Included
NVD compatible
No
Transmission
Average 60% in the range 420 - 700 nm

Optical Information

Dot color
Red
Diode
LED (Light Emitting Diode) totally eye safe
Dot size
4 MOA
Eye relief
Unlimited
Light source wavelength
650 nm red light
Magnification
1X - No Magnification
Optical coating
Anti-reflex coating all surfaces and multilayer coating objective lens
Parallax
Operationally parallax free - No centering required
Transmission
Average 60% in the range 420 - 700 nm
* MOA (minute of angle)
Clear aperture
23 mm
NVD compatible
No

Power Source Information

Daylight settings (DL)
Battery life
50,000 h at daylight setting 7 (15,000 Lux, room temperature)
Battery type
1/3N, 3V, Lithium
Power switch
Rotary Switch

Mounting specifications

Mounting solution
Not Included
Torque - Mount to rail
No Mount Included
Torque - Mount to sight
No Mount Included
Max distance between rings
115 mm
Max ring width
30 mm

Physical Information

Color housing
Black
Surface finish housing
Anodized, Semi-matte
Lens covers
Flip-up lens covers, solid
Material housing and tube
High strength aluminum
Adjustment 1 click =
Tube diameter
30 mm
Weight
222 g
Weight - Optic only
206 g

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Environmental Information

Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Shock
Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
Water resistant
5 m / 15 ft
Operating temperature
- 30°C to + 60°C / - 20°F to + 140°F
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Temperature shock
Operable after a temperature shock between - 30°C and + 60°C (- 22°F and + 140°F)
Vibration
Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.

Documents and zeroing targets

User manual - Multilingual
Zeroing target (in/yds)
Zeroing target (mm/m)
