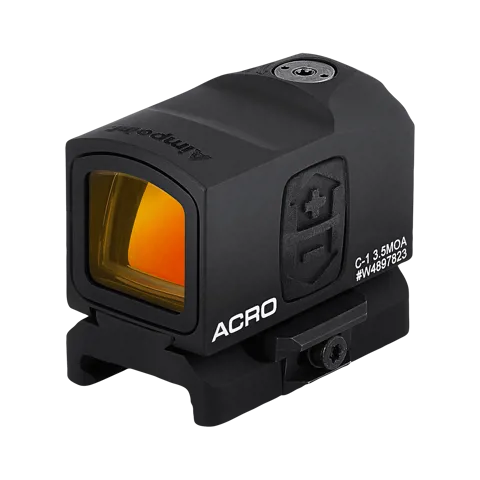

Acro™ C-1 3.5 MOA - Red dot reflex sight with fixed mount 22 mm - 1

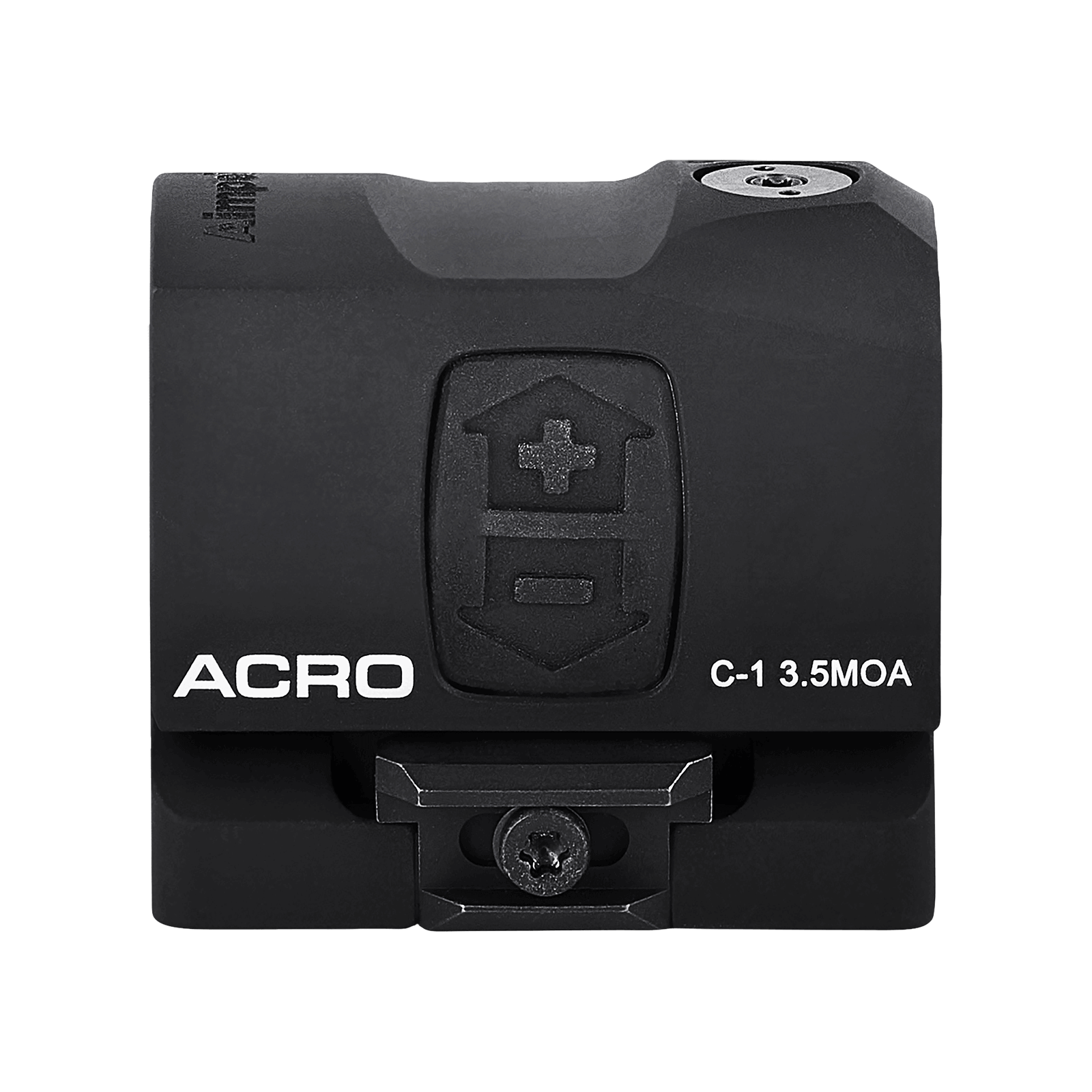

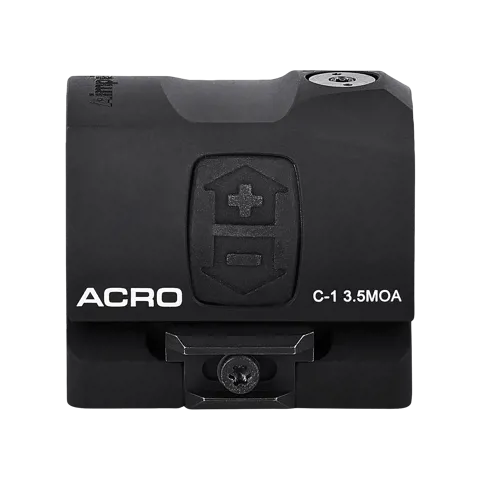

Acro™ C-1 3.5 MOA - Red dot reflex sight with fixed mount 22 mm - 2

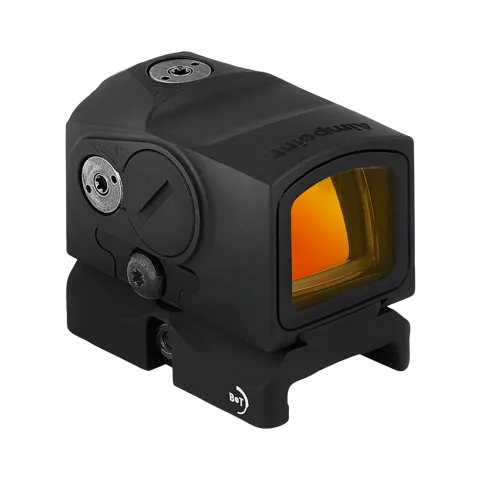

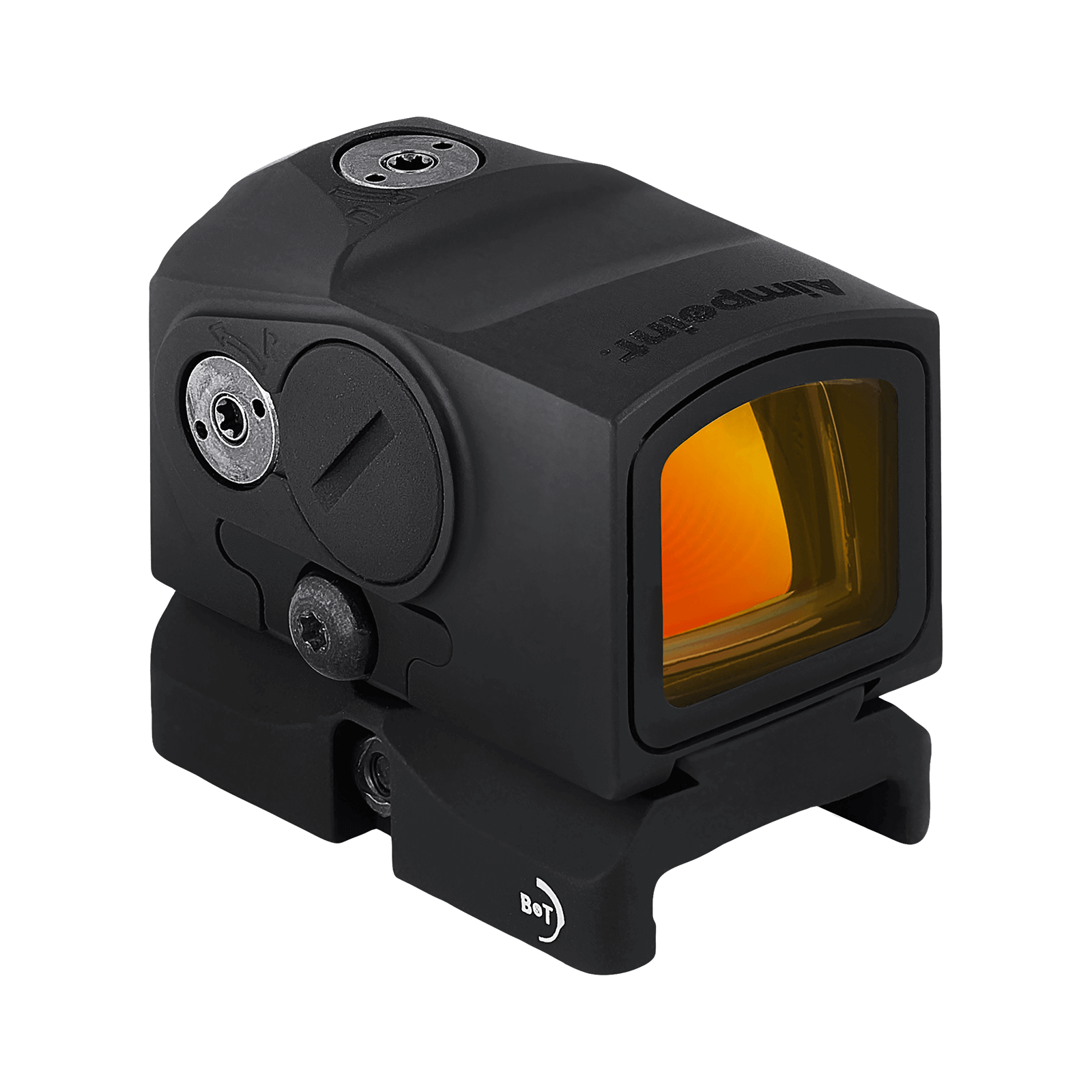

Acro™ C-1 3.5 MOA - Red dot reflex sight with fixed mount 22 mm - 3

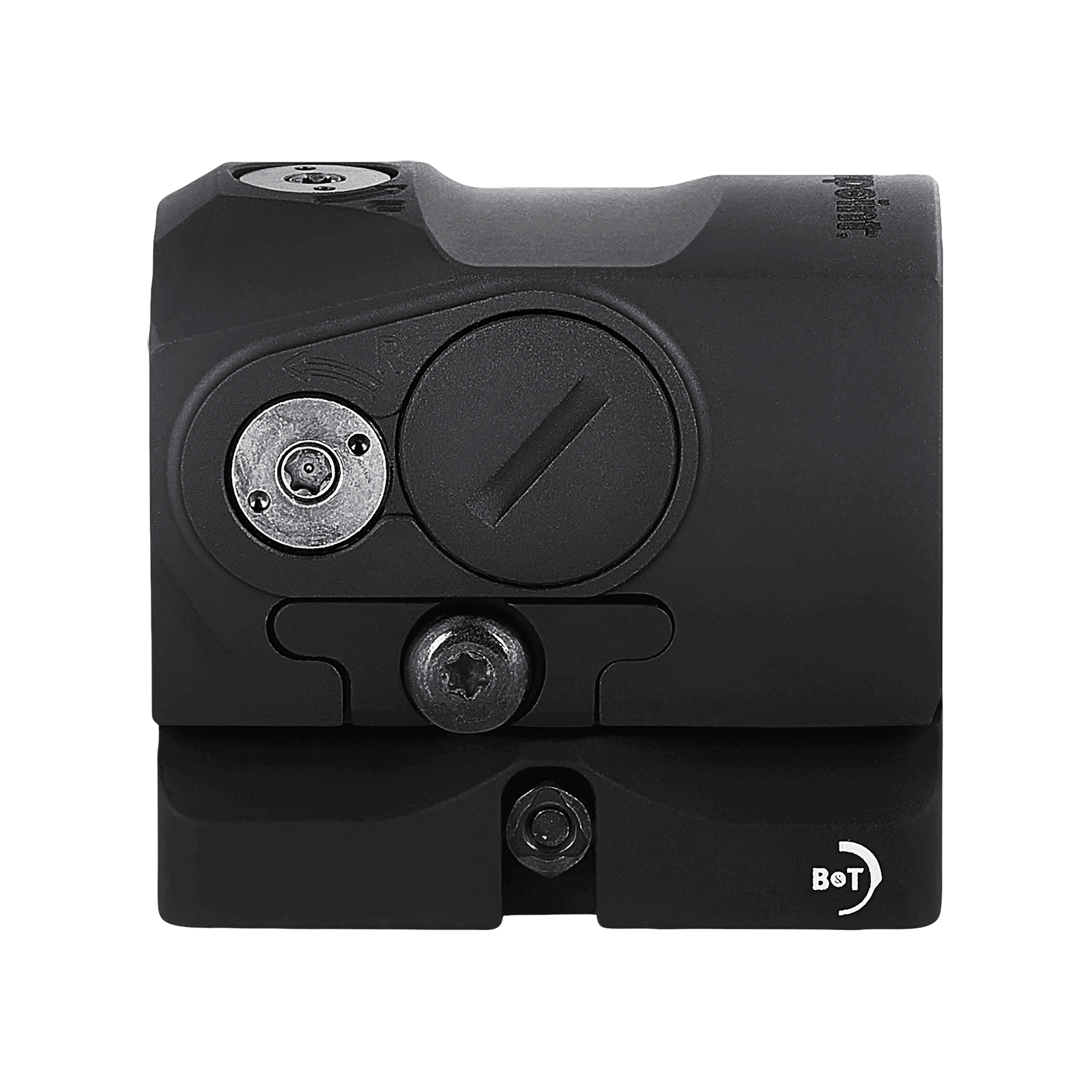

Acro™ C-1 3.5 MOA - Red dot reflex sight with fixed mount 22 mm - 4

Intended use

  • Hunting

    Hunting

  • Shooting Sports

    Shooting Sports

  • Personal Protection

    Personal Protection

  • Secondary Optic

    Secondary Optic

Acro™ C-13.5 MOA - Red dot reflex sightwith fixed mount 22 mm

#200667

  • This product is no longer manufactured.

  • 15,000 hours (over 1.5 years) of constant operation

  • Submersible to 5 meters (15 feet)

  • Weight 60 g (2.1 oz) sight only and 93 g (3.3 oz) configuration

  • Optimized for pistol and applications which require a low-profile red dot system

  • Height of Optical Axis 22 mm (0.9 in) measured from top surface of mounting platform

  • 2 night vision compatible settings and 8 daylight settings

  • 3.5 MOA dot size

Product description

The Aimpoint® Acro™ C-1 is a fully enclosed red dot system that takes up minimal space on any weapon platform.

ACRO C-1 has a precise 3.5 MOA dot. It is developed and optimized for use on optic ready pistols in combination with an ACRO mount plate. However, the wide range of available mounting solutions for the ACRO series makes it an all-round sight that can be used on several weapon platforms such as shotguns, rifles or utilized as a secondary sight on magnified scopes. The enclosed system makes it reliable and operational in any weather conditions and being tested with 20,000 rounds on a .40 S&W caliber pistol slide, this small optic has proven to lead in ruggedness and reliability.

This ACRO C-1 model comes with a fixed 22 mm mount for Weaver / Picatinny.

The AIMPOINT ACRO C-1 is a lightweight, low-profile optic that provides fast target acquisition and an unlimited field of view for hunters as well as sport shooters. They all rely on the ACRO advantage.

Mounting solutions

Here are some compatible mounting solutions.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Mounting specifications
  • Physical Information
  • Technology Information
  • Environmental Information
  • Documents and zeroing targets

General specifications

Size L x W x H
Size L x W x H
47 x 34 x 43 mm / 1.9 x 1.3 x 1.7 in
Weight
Weight
93 g / 3.3 oz
Dot size
Dot size
3.5 MOA
Magnification
Magnification
1X - No Magnification
NVD compatible
NVD compatible
Yes
Transmission
Transmission
Average 60% in the range 420 - 700 nm
Eye relief
Eye relief
Unlimited
Mounting solution
Mounting solution
Acro Fixed Mount 22 mm
Mounting platform
Mounting platform
Weaver / Picatinny Rail

Optical Information

Dot size
3.5 MOA
* MOA (minute of angle)
1 MOA ≈ 30 mm at 100 meters ≈ 1 in at 100 yards
Magnification
1X - No Magnification
NVD compatible
Yes
Transmission
Average 60% in the range 420 - 700 nm
Eye relief
Unlimited
Dot color
Red
Light source wavelength
650 nm red light
Optical coating
Anti-reflex coating all surfaces and multilayer coating objective lens
Parallax
Operationally parallax free - No centering required
Diode
LED (Light Emitting Diode) totally eye safe

Power Source Information

Battery life
More than 1.5 year of use on setting 6
Battery type
CR1225, 3V, Lithium
Power switch
Push Buttons
Daylight settings (DL)
8

Mounting specifications

Torque - Mount to sight
3.0 Nm / 27 in-lbs
Torque - Mount to rail
2.0 Nm / 18 in-lbs
Mounting solution
Acro™ Fixed Mount 22 mm

Physical Information

Material housing and tube
High Strength Aluminum
Lens covers
Not Included
Adjustment 1 click =
1 click = 17 mm at 100 m / 0.6 in at 100 yds
Color housing
Black
Surface finish housing
Anodized, Semi-matte
Size L x W x H - Sight only
47 x 30 x 31 mm / 1.9 x 1.2 x 1.2 in
Size L x W x H
47 x 34 x 43 mm / 1.9 x 1.3 x 1.7 in
Weight - Optic only
60 g / 2.1 oz
Weight
93 g / 3.3 oz

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Environmental Information

Water resistant
5 m / 15 ft
Operating temperature
- 30°C to + 60°C / - 20°F to + 140°F
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Temperature shock
Operable after a temperature shock between - 30°C and + 60°C (- 22°F and + 140°F)
