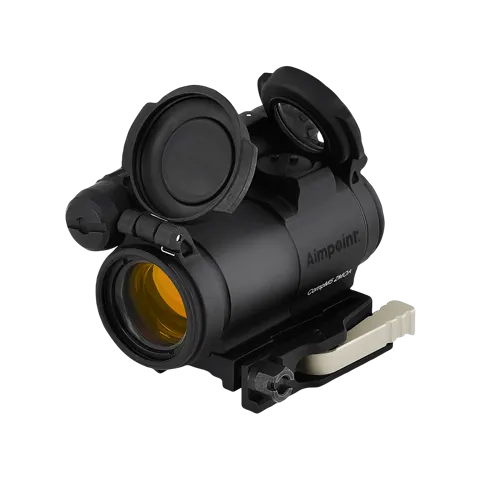

Comp™ M5 2 MOA - Red dot reflex sight with LRP mount - 1

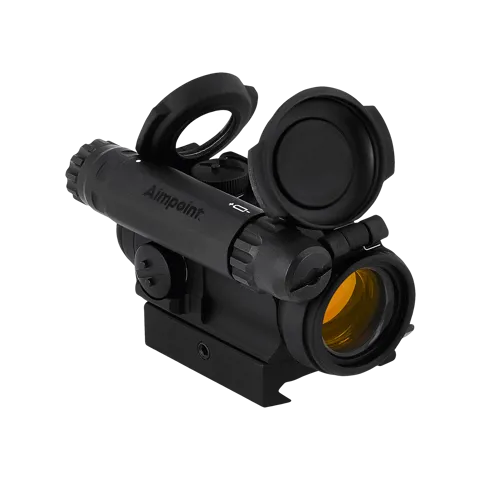

Comp™ M5 2 MOA - Red dot reflex sight with LRP mount - 2

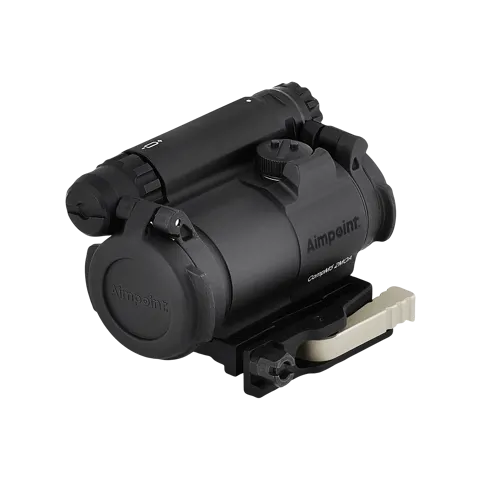

Comp™ M5 2 MOA - Red dot reflex sight with LRP mount - 3

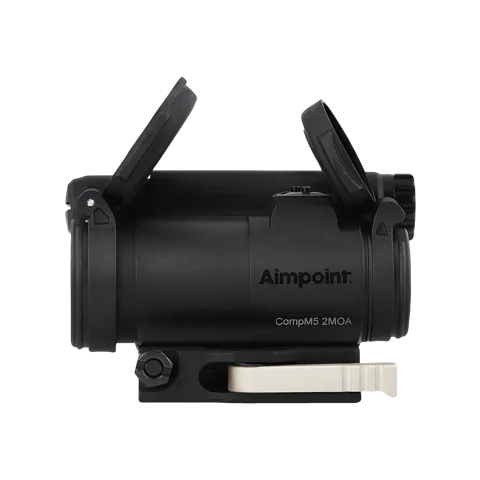

Comp™ M5 2 MOA - Red dot reflex sight with LRP mount - 4
Comp™ M5 2 MOA - Red dot reflex sight with LRP mount - 5

Intended use

  • Shooting Sports

    Shooting Sports

  • Law Enforcement

    Law Enforcement

  • Military

    Military

  • Home Defense

    Home Defense

Comp™ M52 MOA - Red dot reflex sightwith LRP mount

#200468

Select configuration
  • 50,000 hours (over 5 years) of constant operation

  • Submersible to 45 meters (150 feet)

  • Weight 148 g (5.2 oz) sight only

  • Advanced optical lenses for enhanced light transmission and ultimate dot clarity

  • Height of Optical Axis 20 mm (0.8 in) measured from top surface of mechanical interface

  • 4 night vision compatible settings and 6 daylight settings

  • 2 MOA dot size

Product description

The Aimpoint® Comp™ M5 is a compact, lightweight and extremely rugged red dot optic model in the globally recognized COMP series from Aimpoint. The COMP M5 red dot sight was designed to take up minimal space on the weapon platform while still offering extreme ruggedness and durability. New innovative lenses with enhanced reflective coatings, radically improve the shape of the 2 MOA dot. This makes this optic match perfectly with the 3XMAG-1 and 6XMAG-1 magnifiers.

This configuration of the COMP M5 contains the sight and a LRP mount. The sight is also equipped with flip-up lens covers, the front lens cover is black and the rear transparent. The COMP M5 sight model has a high battery compartment while the COMP M5s has a low battery compartment.

The COMP M5 is a high performance sight developed to withstand extremely tough handling and environmental situations without adding much weight to the user’s equipment.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Mounting specifications
  • Physical Information
  • Technology Information
  • Environmental Information
  • Documents and zeroing targets

General specifications

Size L x W x H
Size L x W x H
85 x 54 x 52 mm / 3.3 x 2.1 x 2 in
Dot size
Dot size
2 MOA
Eye relief
Eye relief
Unlimited
Magnification
Magnification
1X - No Magnification
Mounting platform
Mounting platform
Picatinny Rail
Mounting solution
Mounting solution
LRP Mount
NVD compatible
NVD compatible
Yes
Transmission
Transmission
Average 70% in the range 420 - 900 nm

Optical Information

Diode
LED (Light Emitting Diode) totally eye safe
Dot color
Red
Dot size
2 MOA
Eye relief
Unlimited
Light source wavelength
650 nm red light
* MOA (minute of angle)
Optical coating
Anti-reflex coating all surfaces and multilayer coating objective lens
Magnification
1X - No Magnification
Parallax
Operationally parallax free - No centering required
NVD compatible
Yes
Transmission
Average 70% in the range 420 - 900 nm

Power Source Information

Daylight settings (DL)
6
Power switch
Rotary Switch
Battery life
50,000 h at daylight setting 7 (15,000 Lux, room temperature)
Battery type
AAA/LR3, Alkaline

Mounting specifications

Mounting platform
Picatinny rail
Mounting solution
LRP mount
Torque - Mount to sight
1.35 Nm / 12 in-lbs (Torx T10)

Physical Information

Adjustment 1 click =
Color housing
Red
Lens covers
Flip-up Lens Covers, Front Solid and Rear Transparent
Weight - Optic only
148 g
Material housing and tube
Aluminum
Surface finish housing
Anodized, Semi-matte

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Environmental Information

Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Water resistant
45 m / 150 ft
Shock
Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
Operating temperature
- 45°C to + 71°C / - 49°F to + 160°F
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Temperature shock
Operable after a temperature shock between - 45°C and + 71°C (- 49°F and + 160°F)
Vibration
Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
