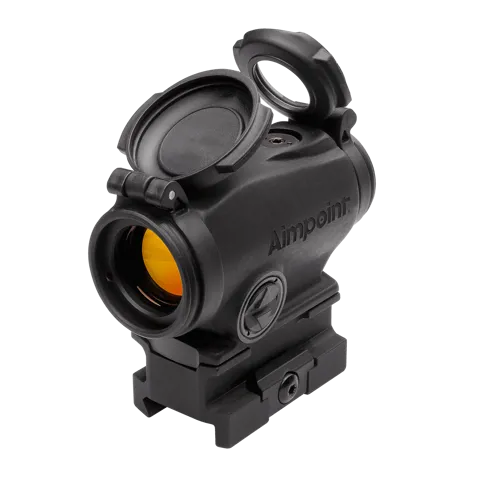

Duty RDS™ 2 MOA - Red dot reflex sight with 39 mm one-piece torsion nut mount - 1

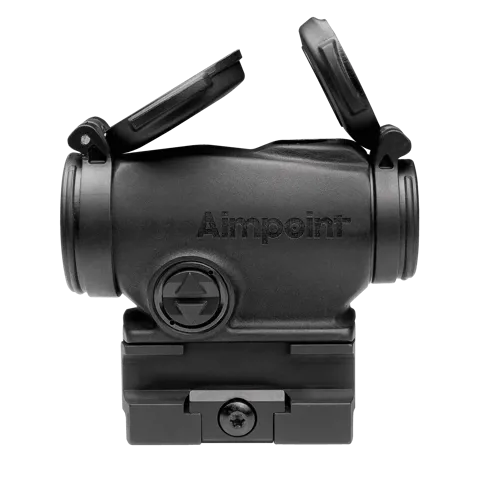

Duty RDS™ 2 MOA - Red dot reflex sight with 39 mm one-piece torsion nut mount - 2

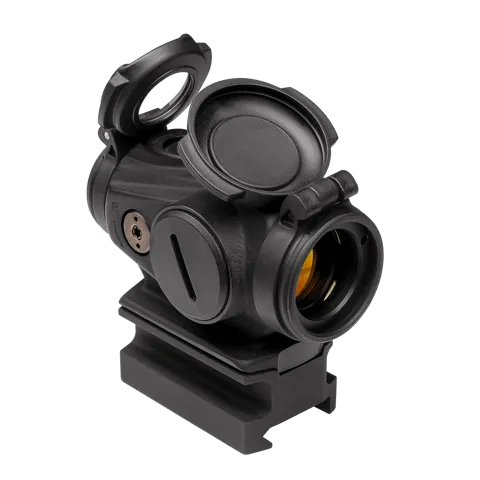

Duty RDS™ 2 MOA - Red dot reflex sight with 39 mm one-piece torsion nut mount - 3

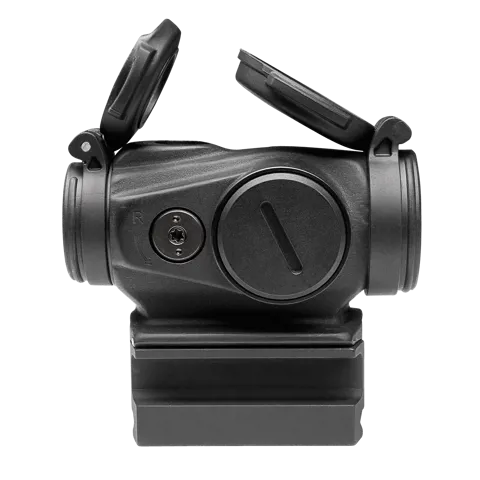

Duty RDS™ 2 MOA - Red dot reflex sight with 39 mm one-piece torsion nut mount - 4

Intended use

  • Law Enforcement

    Law Enforcement

  • Shooting Sports

    Shooting Sports

  • Personal Protection

    Personal Protection

Duty RDS™ 2 MOA - Red dot reflex sight with 39 mm one-piece torsion nut mount

Duty RDS™

#200759

Select configuration
  • 30,000 hours (over 3 years) of constant operation on setting 7

  • Submersible to 25 meters (80 feet)

  • Weight 110 g (3.9 oz) sight only

  • Advanced optical lenses for enhanced light transmission and ultimate dot clarity

  • Height of Optical Axis 39 mm (1.5 in) measured from top surface of mounting platform

  • 4 night vision compatible settings, and 6 daylight settings

  • 2 MOA dot size

Read more
  • Take your shooting performance to the next level

  • Aimpoint - The originalsince 1975

Product description

The Aimpoint® Duty RDS is a compact, high-grade reflex optic that was designed to meet the demanding needs of the modern law enforcement officer.

The Duty RDS (Red Dot Sight) offers a bright, crisp 2 MOA dot that’s ideal for short to medium range target engagements. All new windage and elevation adjustments are flush mounted and waterproof, eliminating the need for protective caps. The turrets provide audible “clicks” when zeroing the optic. The dot brightness intensity switch is a digital keypad with intuitive push buttons that can easily be manipulated while wearing gloves. The pressure forged aluminum alloy housing provides durability against extreme abuse and drastic temperature changes. The Duty RDS comes with a one-piece torsion nut mount that attaches to MIL-STD-1913 picatinny rails. The sight is fully compatible with all generations of night vision devices.

The Duty RDS withstands extremely tough handling and offers Aimpoint quality at a more accessible price point.

Mounting solutions

Here are some compatible mounting solutions.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Mounting specifications
  • Physical Information
  • Technology Information
  • Environmental Information
  • Documents and zeroing targets

General specifications

Size L x W x H
Size L x W x H
80 x 41 x 67 mm / 3.1 x 1.6 x 2.6 in
Weight
Weight
160 g / 5.6 oz
Dot size
Dot size
2 MOA
Magnification
Magnification
1X - No Magnification
NVD compatible
NVD compatible
Yes
Transmission
Transmission
Average >85 % in the range 420-620 nm
Eye relief
Eye relief
Unlimited
Mounting solution
Mounting solution
Duty RDS One-piece TNP Mount 39 mm
Mounting platform
Mounting platform
Picatinny Rail (MIL-STD 1913)

Optical Information

Dot size
2 MOA
* MOA (minute of angle)
1 MOA ≈ 30 mm at 100 meters ≈ 1 in at 100 yards
Magnification
1X - No Magnification
NVD compatible
Yes
Transmission
Average >85 % in the range 420-620 nm
Eye relief
Unlimited
Dot color
Red
Light source wavelength
650 nm red light
Optical coating
Anti-reflex coating all surfaces and multilayer coating objective lens
Parallax
Operationally parallax free - No centering required
Diode
LED (Light Emitting Diode) totally eye safe

Power Source Information

Battery life
30,000 h at daylight setting 7 (15,000 Lux, room temperature)
Battery type
CR2032, 3V, Lithium
Power switch
Push Buttons
Daylight settings (DL)
6

Mounting specifications

Torque - Mount to sight
1.35 Nm / 12 in-lbs (Torx T10)
Mounting solution
Duty RDS™ One-piece TNP Mount 39 mm

Physical Information

Material housing and tube
High Strength Aluminum
Surface finish housing
Anodized, Semi-matte
Color housing
Black
Lens covers
Flip-up Lens Covers, Front Solid and Rear Transparent
Adjustment 1 click =
1 click = 14 mm at 100 m / ≈ 0.5 in at 100 yds
Size L x W x H - Sight only
68 x 37 x 43 mm / 2.7 x 1.5 x 1.7 in
Size L x W x H
80 x 41 x 67 mm / 3.1 x 1.6 x 2.6 in
Weight - Optic only
110 g / 3.9 oz
Weight
160 g / 5.6 oz

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Environmental Information

Water resistant
25 m / 80 ft
Operating temperature
- 45°C to + 71°C / - 49°F to + 160°F
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Temperature shock
Operable after a temperature shock between - 45°C and + 71°C (- 49°F and + 160°F)
Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Vibration
Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
Shock
Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
