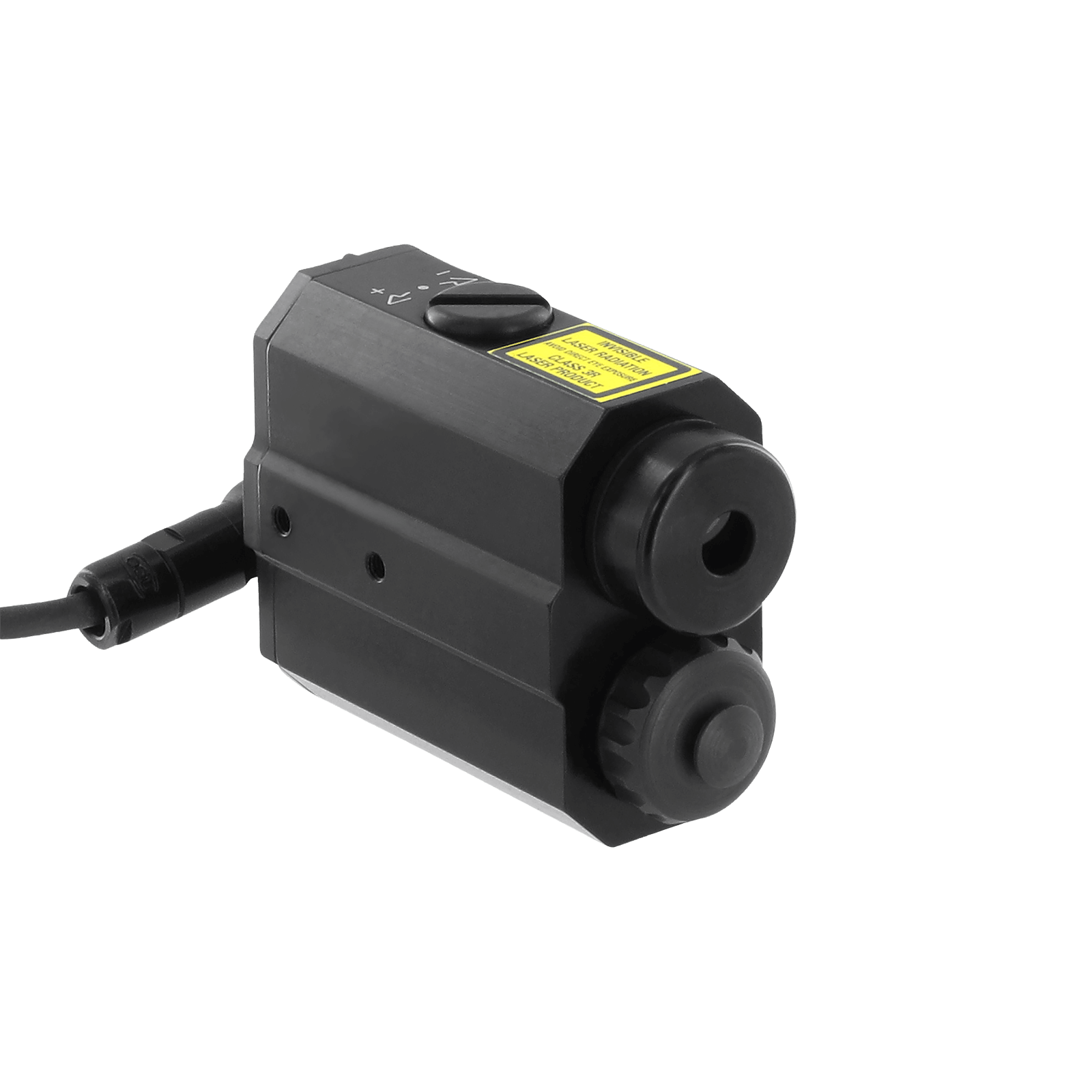

LPI™ Module Laser aiming device - 1
LPI™ Module Laser aiming device - 2

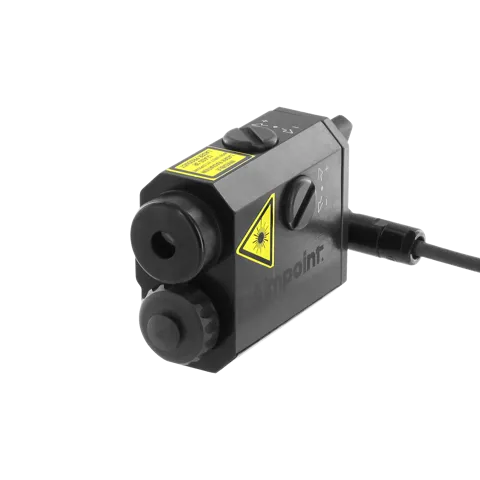

LPI™ Module Laser aiming device - 3

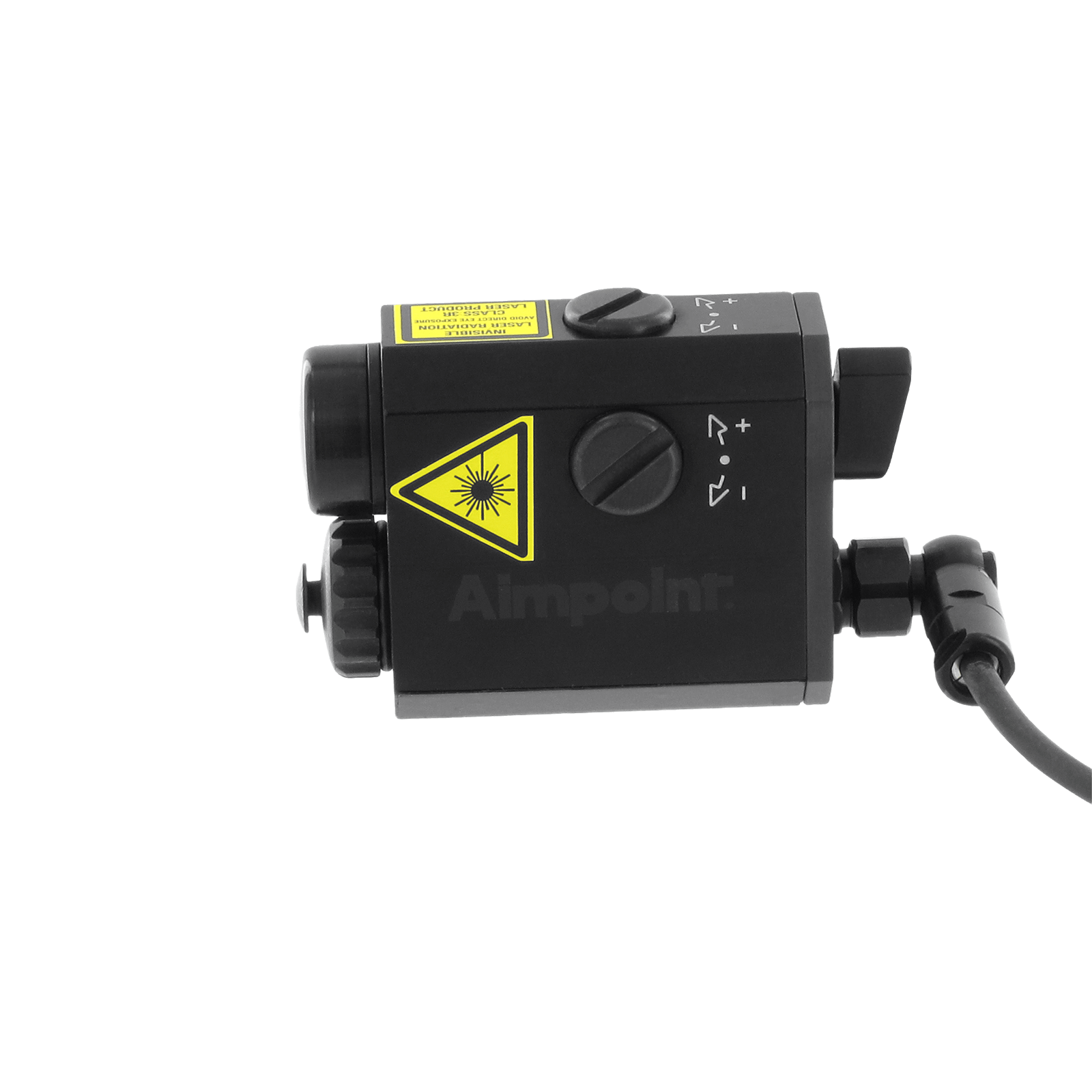

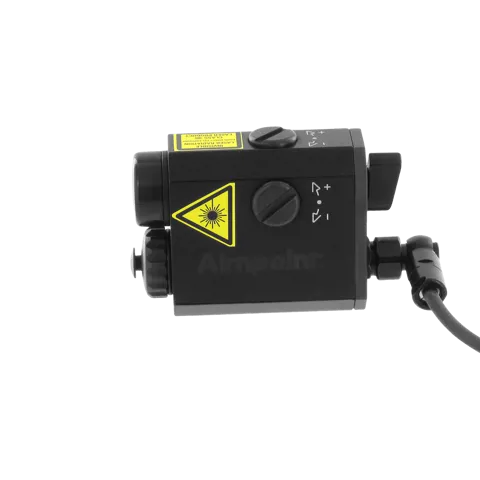

LPI™ Module Laser aiming device - 4

Intended use

  • Law Enforcement

    Law Enforcement

  • Military

    Military

LPI™ ModuleLaser aiming device

#12401

  • This product is no longer manufactured. Export License/End-user Certificate required for this product.

  • 2 h of constant operation

  • Submersible to 1 meter (3 feet)

  • Weight 150 g (5.3 oz) sight and mount

  • Two different power settings, low and high

  • 1.5 MOA dot size

Product description

The Aimpoint® LPI™, IR Laser Aiming Device, is an eye safe active infrared aiming device for military and Law Enforcement applications.

Designed for use in darkness while wearing night vision goggles, the LPI projects a laser aiming dot on the target, visible only to those wearing NVD´s. Export license/End-user certificate is required for the IR laser and its mounts.

To make the product complete, a cable with switch and a mount interface must be determined by the user and ordered with the AIMPOINT LPI. Four different mounting solutions are available and the cable is available at customized length.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Physical Information
  • Technology Information
  • Environmental Information

General specifications

Size L x W x H
Size L x W x H
48 x 44 x 24 mm / 1.9 x 1.7 x 0.9 in
Weight
Weight
150 g / 5.3 oz
Dot size
Dot size
1.5 MOA (0.5 mrad)
Magnification
Magnification
1X - No Magnification
Eye relief
Eye relief
Requires special googles for identification

Optical Information

Dot size
1.5 MOA (0.5 mrad)
Magnification
1X - No Magnification
Eye relief
Requires special googles for identification
Light source wavelength
840 nm red light

Power Source Information

Battery life
2 h, continuous operation - daytime use
Battery type
1/3N, 3V, Lithium
Power switch
Rotary Switch

Physical Information

Material housing and tube
High Strength Aluminum
Lens covers
Not Included
Color housing
Black
Surface finish housing
Anodized, Semi-matte
Size L x W x H - Sight only
48 x 44 x 24 mm / 1.9 x 1.7 x 0.9 in
Size L x W x H
48 x 44 x 24 mm / 1.9 x 1.7 x 0.9 in
Weight - Optic only
150 g / 5.3 oz
Weight
150 g / 5.3 oz

Technology Information

Operating principle
IR Laser aiming device

Environmental Information

Water resistant
1 m / 3 ft
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Temperature shock
Operable after a temperature shock between - 45°C and + 71°C (- 49°F and + 160°F)
Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Vibration
Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
Shock
Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
