Intended use

  • Hunting

    Hunting

  • Shooting Sports

    Shooting Sports

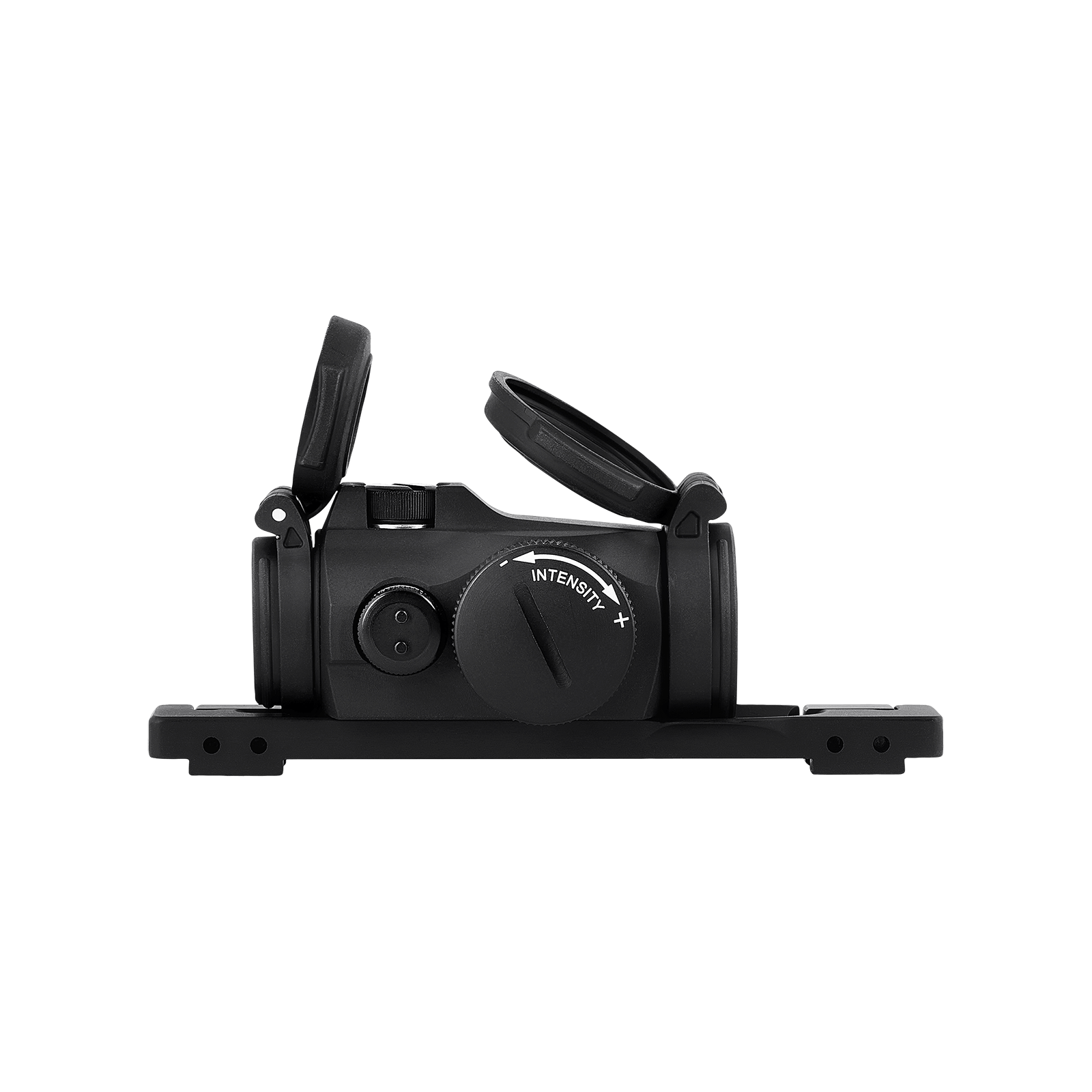

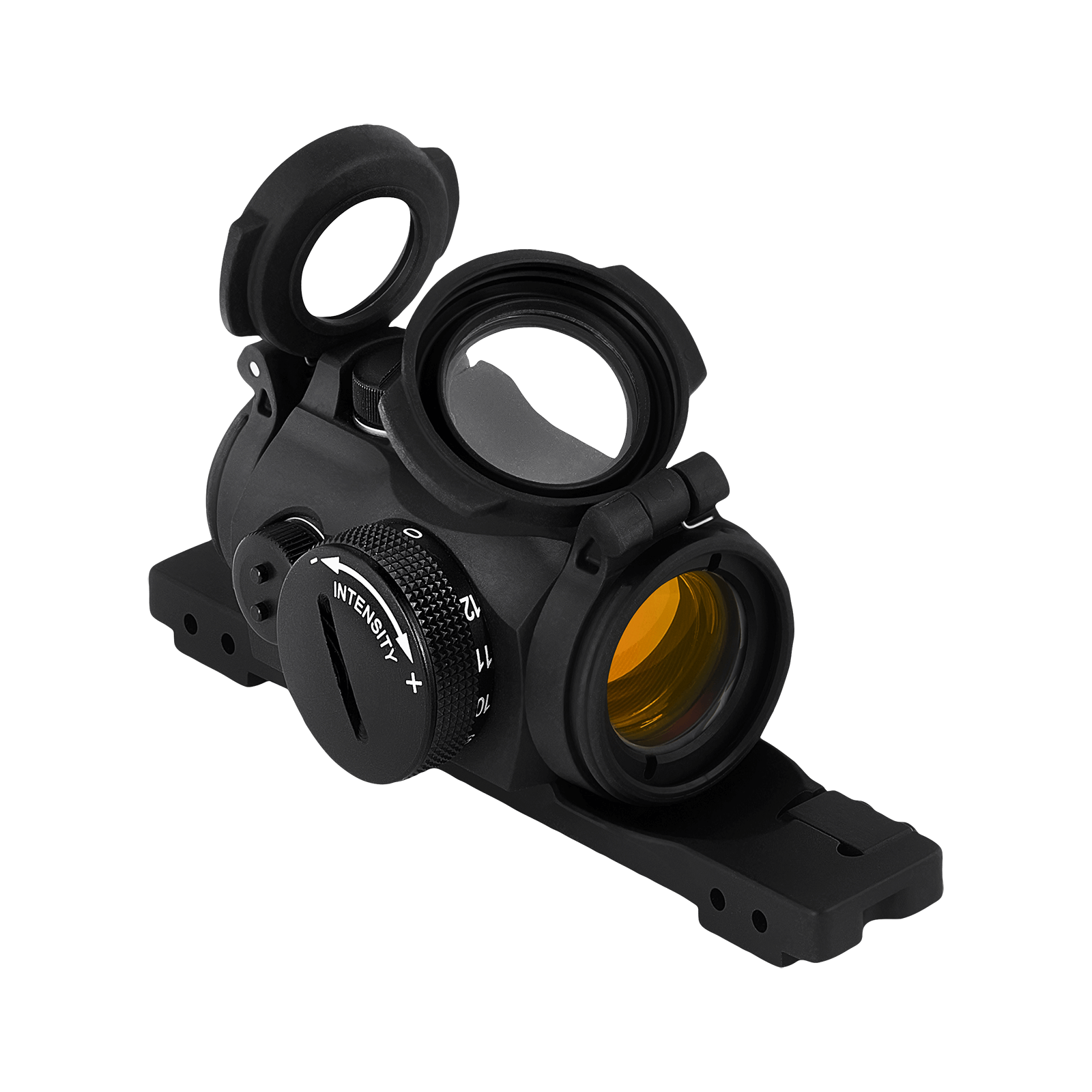

Micro H-2™4 MOA - Red dot reflex sightwith mount for semi-automatic shotguns

#200254

Select configuration
  • 50,000 hours (over 5 years) of operation on one battery

  • Submersible to 5 meters (15 feet)

  • Lightweight – 94 g (3.3 oz) sight only and 148 g (5.2 oz) with mount

  • Advanced optical lenses for enhanced light transmission and ultimate dot clarity

  • Height of Optical Axis 20 mm (0.8 in) measured from top surface of mechanical interface

  • 12 intensity settings for use in daylight and low light conditions

  • 4 MOA dot size

Product description

Being the top choice for speed and accuracy in a compact reflex optic, the Aimpoint® Micro H-2 is trusted by millions of hunters and sport shooters worldwide.

This second generation Aimpoint® Micro red dot sight has a redesigned and reinforced house body, as well as flip-up covers protecting the lenses. Thanks to superior optical lenses and cutting edge lens coatings, the optical performance and the shape and clarity of the red dot are radically improved. The Micro mount for semi-automatic shotguns is attached on the rifle with dovetail (10.7-12,7mm). The mount uses double anchor points. It is extremely robust and a high-grade product. Aimpoint® Micro H-2 4 MOA and the Micro mount for semi-automatic shotgun are sold as a set. The mount is also sold separately, Item No 200258. This sight offers 50,000 hours of operation on a single battery.

Micro H-2 combines simplicity, speed, ruggedness, accuracy and reliability.

Inspiration

Please note that displayed media files highlight selected sight model and not always the mount configuration and accessories included in selected item number.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Mounting specifications
  • Physical Information
  • Technology Information
  • Environmental Information
  • Documents and zeroing targets

General specifications

Size L x W x H
Size L x W x H
150 x x 45 mm / 5.9 x x 1.8 in
Weight
Weight
148 g / 5.2 oz
Dot size
Dot size
4 MOA
Magnification
Magnification
1X - No Magnification
NVD compatible
NVD compatible
No
Transmission
Transmission
Average 60% in the range 420 - 700 nm
Eye relief
Eye relief
Unlimited
Mounting solution
Mounting solution
Micro Mount for Semi-Automatic Shotguns
Mounting platform
Mounting platform
Dovetail 11.0 - 13.0 mm

Optical Information

Dot size
4 MOA
* MOA (minute of angle)
1 MOA ≈ 30 mm at 100 meters ≈ 1 in at 100 yards
Magnification
1X - No Magnification
NVD compatible
No
Transmission
Average 60% in the range 420 - 700 nm
Eye relief
Unlimited
Dot color
Red
Light source wavelength
650 nm red light
Optical coating
Anti-reflex coating all surfaces and multilayer coating objective lens
Parallax
Operationally parallax free - No centering required
Diode
LED (Light Emitting Diode) totally eye safe

Power Source Information

Battery life
50,000 h at daylight setting 8 (15,000 Lux, room temperature)
Battery type
CR2032, 3V, Lithium
Power switch
Rotary Switch
Daylight settings (DL)
12

Mounting specifications

Torque - Mount to sight
1.35 Nm / 12 in-lbs (Torx T10)
Torque - Mount to rail
1.35 Nm / 12 in-lbs (Torx T10)
Mounting solution
Micro™ Mount for Semi-Automatic Shotguns

Physical Information

Material housing and tube
High Strength Aluminum
Lens covers
Flip-up Lens Covers, Transparent
Adjustment 1 click =
1 click = 13 mm at 100 m / 0.5 in at 100 yds
Color housing
Black
Surface finish housing
Anodized, Semi-matte
Size L x W x H - Sight only
68 x 41 x 36 mm / 2.7 x 1.6 x 1.4 in
Size L x W x H
150 x x 45 mm / 5.9 x x 1.8 in
Weight - Optic only
94 g / 3.3 oz
Weight
148 g / 5.2 oz

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Environmental Information

Water resistant
5 m / 15 ft
Operating temperature
- 30°C to + 60°C / - 20°F to + 140°F
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Temperature shock
Operable after a temperature shock between - 30°C and + 60°C (- 22°F and + 140°F)
