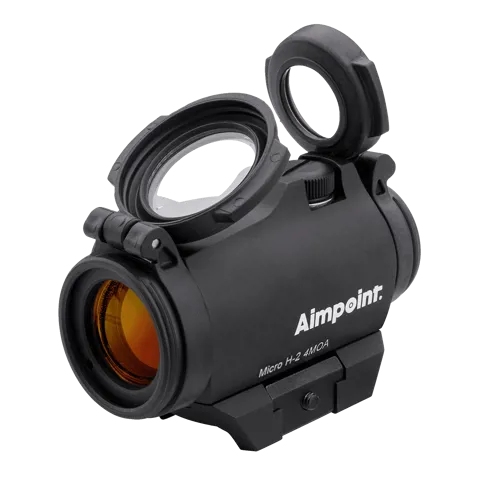

Micro™ H-2 4 MOA - Red dot reflex sight with standard mount for Weaver / Picatinny - 1

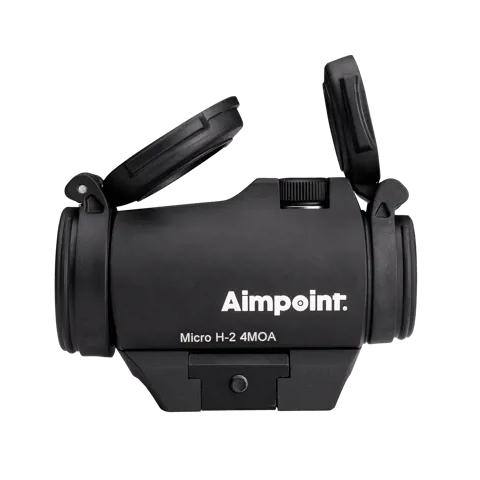

Micro™ H-2 4 MOA - Red dot reflex sight with standard mount for Weaver / Picatinny - 2

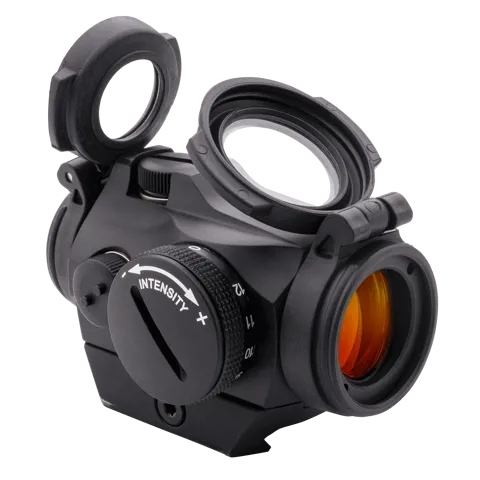

Micro™ H-2 4 MOA - Red dot reflex sight with standard mount for Weaver / Picatinny - 3

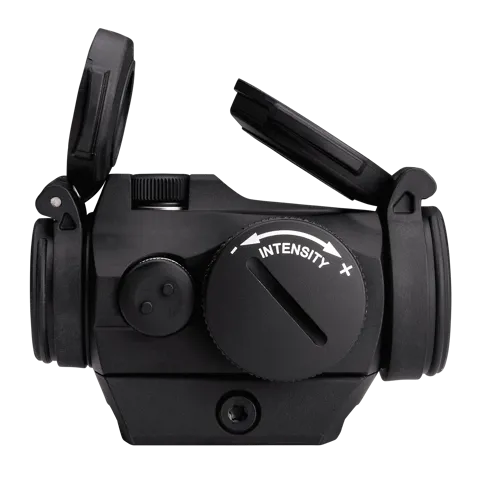

Micro™ H-2 4 MOA - Red dot reflex sight with standard mount for Weaver / Picatinny - 4

Intended use

  • Hunting

    Hunting

  • Shooting Sports

    Shooting Sports

  • Personal Protection

    Personal Protection

Micro™ H-24 MOA - Red dot reflex sightwith standard mount for Weaver / Picatinny

#200183

Select configuration
  • 50,000 hours (over 5 years) of operation on one battery

  • Submersible to 5 meters (15 feet)

  • Lightweight – 94 g (3.3 oz) sight only and 130 g (4.6 oz) with mount

  • Advanced optical lenses for enhanced light transmission and ultimate dot clarity

  • Height of Optical Axis 20 mm (0.8 in) measured from top surface of mechanical interface

  • 12 intensity settings for use in daylight and low light conditions

  • 4 MOA dot size

Product description

Being the top choice for speed and accuracy in a compact reflex optic, the Aimpoint® Micro™ H-2 is trusted by millions of hunters and sport shooters worldwide.

This second generation AIMPOINT MICRO red dot sight has a redesigned and reinforced house body, as well as flip-up covers protecting the lenses. Thanks to superior optical lenses and cutting edge lens coatings, the optical performance and the shape and clarity of the red dot are radically improved. This sight offers 50,000 hours of operation on a single battery. The MICRO H-2 sight model is available in three different MOA sizes; 2, 4 and 6 MOA.

This is an AIMPOINT MICRO H-2 model with standard mount for Weaver / Picatinny rail.

MICRO H-2 combines simplicity, speed, ruggedness, accuracy and reliability.

Inspiration

Please note that displayed media files highlight selected sight model and not always the mount configuration and accessories included in selected item number.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Mounting specifications
  • Physical Information
  • Technology Information
  • Environmental Information
  • Documents and zeroing targets

General specifications

Size L x W x H
Size L x W x H
79 x 46 x 48 mm / 3.1 x 1.8 x 1.9 in
Weight
Weight
130 g / 4.6 oz
Dot size
Dot size
4 MOA
Eye relief
Eye relief
Unlimited
Magnification
Magnification
1X - No Magnification
Mounting platform
Mounting platform
Weaver / Picatinny Rail
Mounting solution
Mounting solution
Micro Standard Mount for Weaver / Picatinny
NVD compatible
NVD compatible
No
Transmission
Transmission
Average 60% in the range 420 - 700 nm

Optical Information

Dot size
4 MOA
* MOA (minute of angle)
Magnification
1X - No Magnification
NVD compatible
No
Transmission
Average 60% in the range 420 - 700 nm
Eye relief
Unlimited
Dot color
Red
Light source wavelength
650 nm red light
Optical coating
Anti-reflex coating all surfaces and multilayer coating objective lens
Parallax
Operationally parallax free - No centering required
Diode
LED (Light Emitting Diode) totally eye safe

Power Source Information

Battery life
50,000 h at daylight setting 8 (15,000 Lux, room temperature)
Battery type
CR2032, 3V, Lithium
Power switch
Rotary Switch
Daylight settings (DL)
12

Mounting specifications

Torque - Mount to sight
1.35 Nm / 12 in-lbs (Torx T10)
Torque - Mount to rail
2.0 Nm / 18 in-lbs (Torx T10)
Mounting solution
Micro™ standard mount for Weaver / Picatinny

Physical Information

Weight
130 g
Material housing and tube
Aluminum
Lens covers
Flip-up Lens Covers, Transparent
Weight - Optic only
94 g
Adjustment 1 click =
Color housing
Red
Surface finish housing
Anodized, Semi-matte

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Environmental Information

Water resistant
5 m / 15 ft
Operating temperature
- 30°C to + 60°C / - 20°F to + 140°F
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Temperature shock
Operable after a temperature shock between - 30°C and + 60°C (- 22°F and + 140°F)
Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Vibration
Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
Shock
Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
