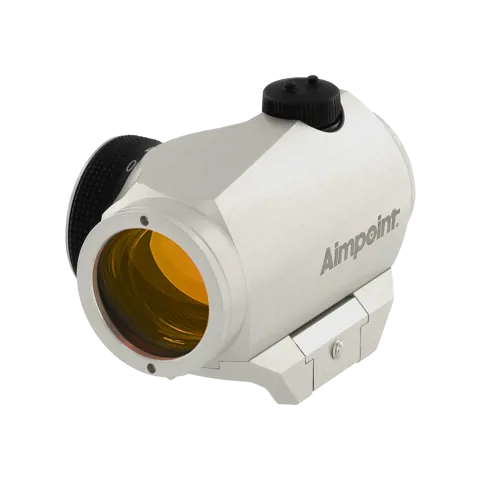

Micro R-1™ 4 MOA - Red dot reflex sight with standard mount for Weaver/Picatinny - 1

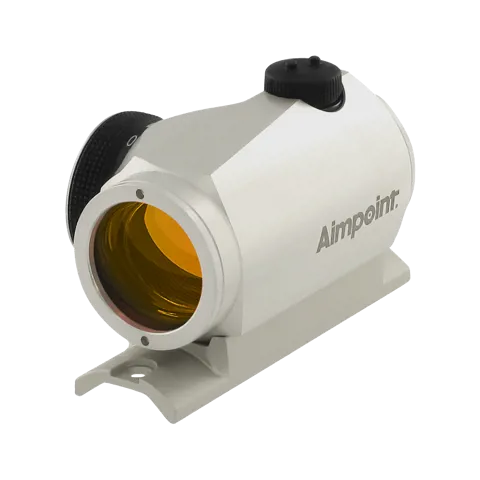

Micro R-1™ 4 MOA - Red dot reflex sight with standard mount for Weaver/Picatinny - 2

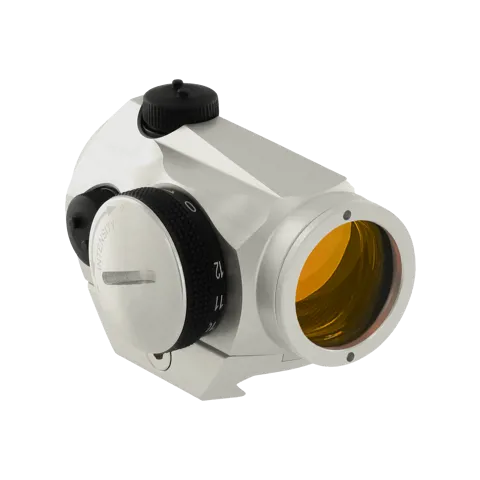

Micro R-1™ 4 MOA - Red dot reflex sight with standard mount for Weaver/Picatinny - 3

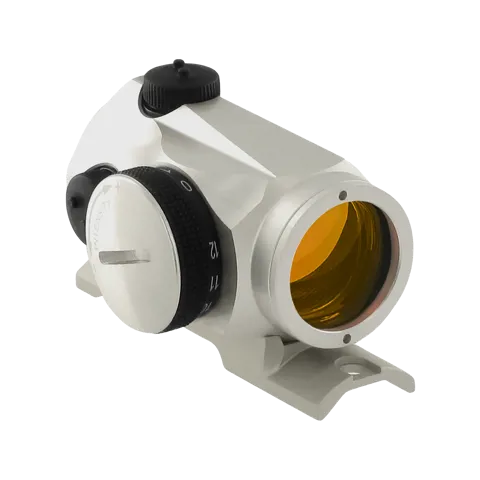

Micro R-1™ 4 MOA - Red dot reflex sight with standard mount for Weaver/Picatinny - 4
Micro R-1™ 4 MOA - Red dot reflex sight with standard mount for Weaver/Picatinny - 5

Intended use

  • Hunting

    Hunting

  • Shooting Sports

    Shooting Sports

Micro R-1™4 MOA - Red dot reflex sightwith standard mount for Weaver/Picatinny

#11911

  • 50,000 hours (over 5 years) of operation on one battery

  • Submersible to 5 meters (15 feet)

  • Lightweight – 84 g (3.0 oz) sight only and 116 g (4.1 oz) with mount

  • Silver colored housing and mount

  • Height of Optical Axis 19 mm (0.7 in) measured from top surface of mounting platform

  • 12 intensity settings for use in daylight and low light conditions

  • 4 MOA dot size

Product description

The Aimpoint® Micro R-1 was designed and built with the competitive hand gunner as well as the hunter using stainless steel weapons in mind.

Perfect for pistols, revolvers, and stainless hunting rifles This is a sight for sport shooters and hunters with its silver metallic finish and weight of only 105 g, the Micro R-1 is perfect on pistols and revolvers for NRA Action Pistol or IPSC competition. With its 4 MOA dot size, the Micro R-1 is also ideal for use on stainless hunting rifles.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Mounting specifications
  • Physical Information
  • Technology Information
  • Environmental Information
  • Documents and zeroing targets

General specifications

Size L x W x H
Size L x W x H
69 x 41 x 36 mm / 2.7 x 1.6 x 1.4 in
Weight
Weight
105 g / 3.7 oz
Dot size
Dot size
4 MOA
Magnification
Magnification
1X - No Magnification
NVD compatible
NVD compatible
No
Transmission
Transmission
Average 60% in the range 420 - 700 nm
Eye relief
Eye relief
Unlimited
Mounting solution
Mounting solution
Micro Standard Mount for Weaver / Picatinny
Mounting platform
Mounting platform
Weaver / Picatinny Rail

Optical Information

Dot size
4 MOA
* MOA (minute of angle)
1 MOA ≈ 30 mm at 100 meters ≈ 1 in at 100 yards
Magnification
1X - No Magnification
NVD compatible
No
Transmission
Average 60% in the range 420 - 700 nm
Eye relief
Unlimited
Dot color
Red
Light source wavelength
650 nm red light
Optical coating
Anti-reflex coating all surfaces and multilayer coating objective lens
Parallax
Operationally parallax free - No centering required
Diode
LED (Light Emitting Diode) totally eye safe

Power Source Information

Battery life
50,000 h at daylight setting 8 (15,000 Lux, room temperature)
Battery type
CR2032, 3V, Lithium
Power switch
Rotary Switch
Daylight settings (DL)
12

Mounting specifications

Torque - Mount to sight
0.8 Nm / 7 in-lbs (Torx T10)
Torque - Mount to rail
2.0 Nm / 18 in-lbs (Torx T10)
Mounting solution
Micro™ Standard Mount for Weaver / Picatinny

Physical Information

Material housing and tube
High Strength Aluminum
Lens covers
Bikini Lens Cover, Rubber, Solid
Adjustment 1 click =
1 click = 13 mm at 100 m / 0.5 in at 100 yds
Color housing
Silver Metallic
Surface finish housing
Anodized, Semi-matte
Size L x W x H - Sight only
61 x 41 x 36 mm / 2.4 x 1.6 x 1.4 in
Size L x W x H
69 x 41 x 36 mm / 2.7 x 1.6 x 1.4 in
Weight - Optic only
84 g / 3 oz
Weight
105 g / 3.7 oz

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Environmental Information

Water resistant
5 m / 15 ft
Operating temperature
- 30°C to + 60°C / - 20°F to + 140°F
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Temperature shock
Operable after a temperature shock between - 30°C and + 60°C (- 22°F and + 140°F)
Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Vibration
Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
Shock
Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
