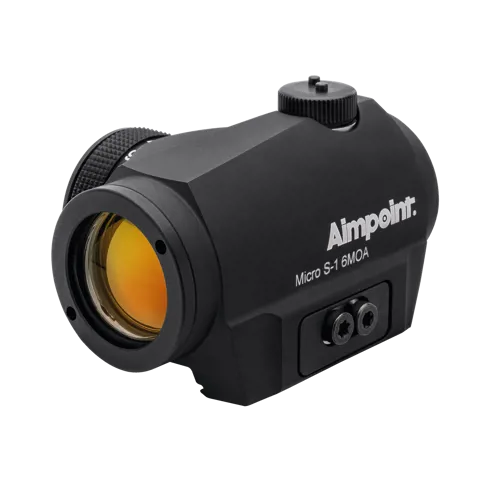

Micro™ S-1 6 MOA - Red dot reflex sight with integrated shotgun rib mount - 1
Micro™ S-1 6 MOA - Red dot reflex sight with integrated shotgun rib mount - 2

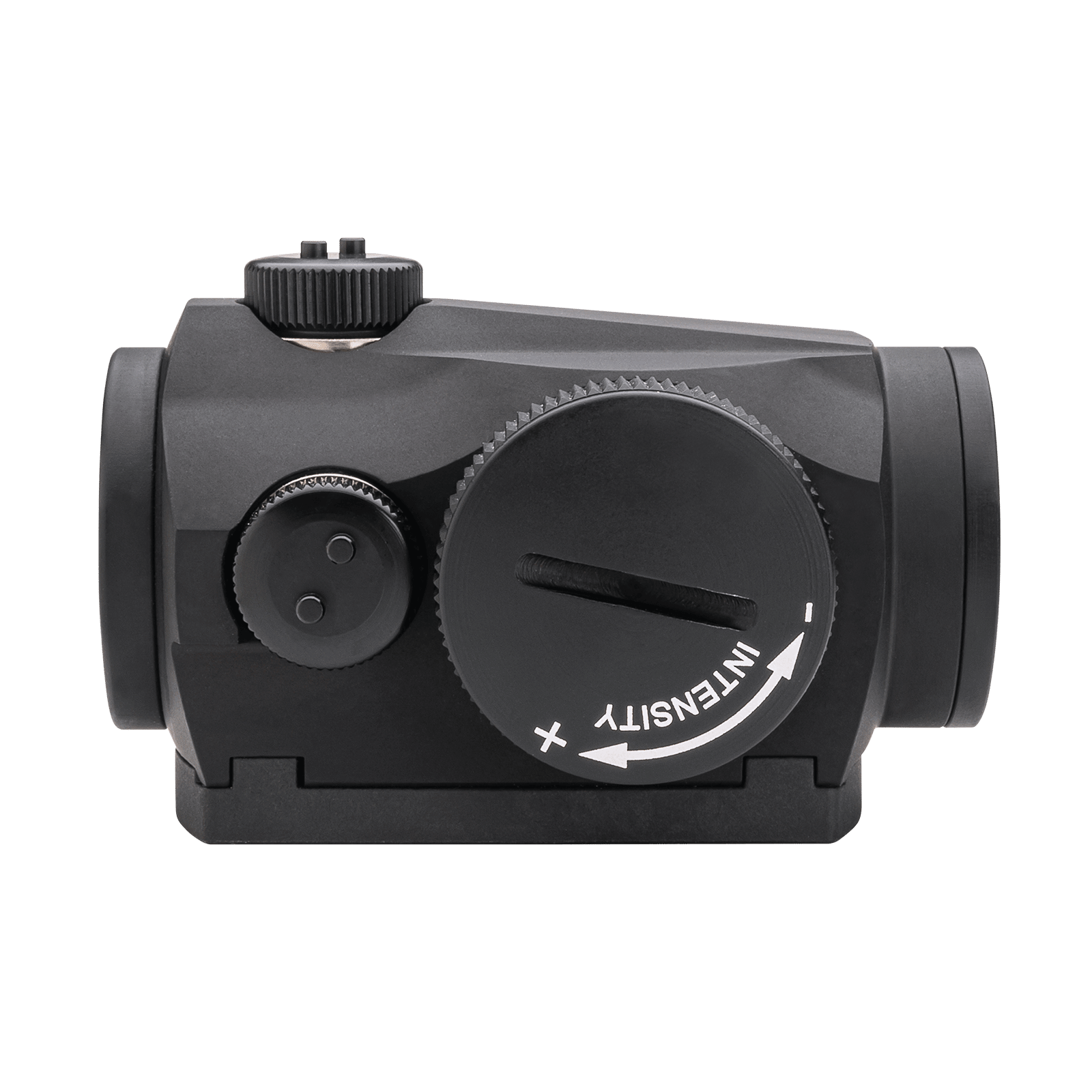

Micro™ S-1 6 MOA - Red dot reflex sight with integrated shotgun rib mount - 3

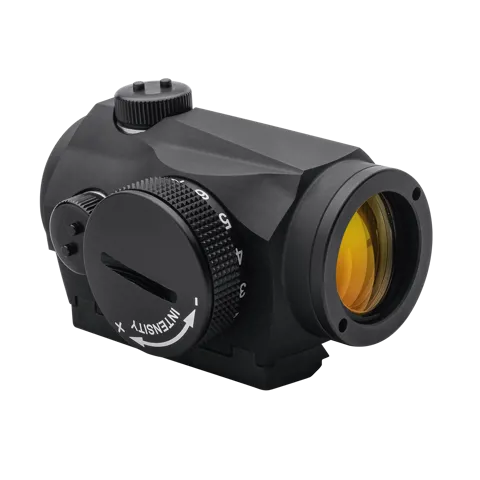

Micro™ S-1 6 MOA - Red dot reflex sight with integrated shotgun rib mount - 4

Intended use

  • Hunting

    Hunting

  • Shooting Sports

    Shooting Sports

Micro™ S-16 MOA - Red dot reflex sightwith integrated shotgun rib mount

#200369

  • This product is no longer manufactured.

  • 50,000 hours (over 5 years) of constant operation on one battery

  • Waterproof, lightweight, compact and fully enclosed protective housing

  • Lightweight - 100 g (3.5 oz) sight only

  • Versatile optic for all shotgun applications

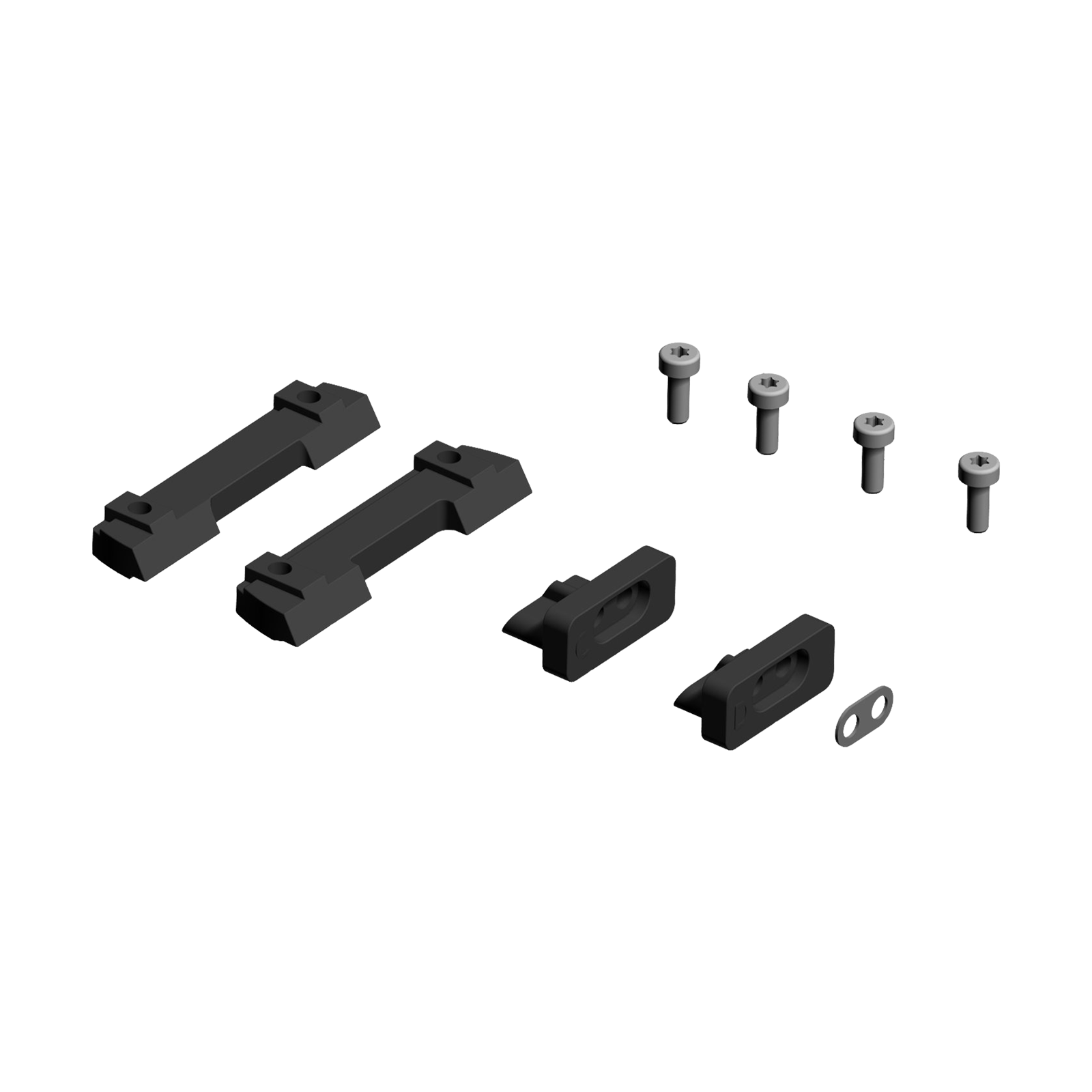

  • Ultra-low integrated and carbon fiber reinforced rib mount - Interchangeable base plates included to accommodate most rib sizes (6-12mm)

  • Height of Optical Axis 14 mm (0.6 in) measured from top surface of mounting platform

  • 12 intensity settings with higher maximum settings for bright sky conditions

  • 6 MOA dot size

Product description

The Aimpoint® Micro™ S-1 was designed specifically for use on shotguns. It provides a compact, low-profile optic for shotgun hunters.

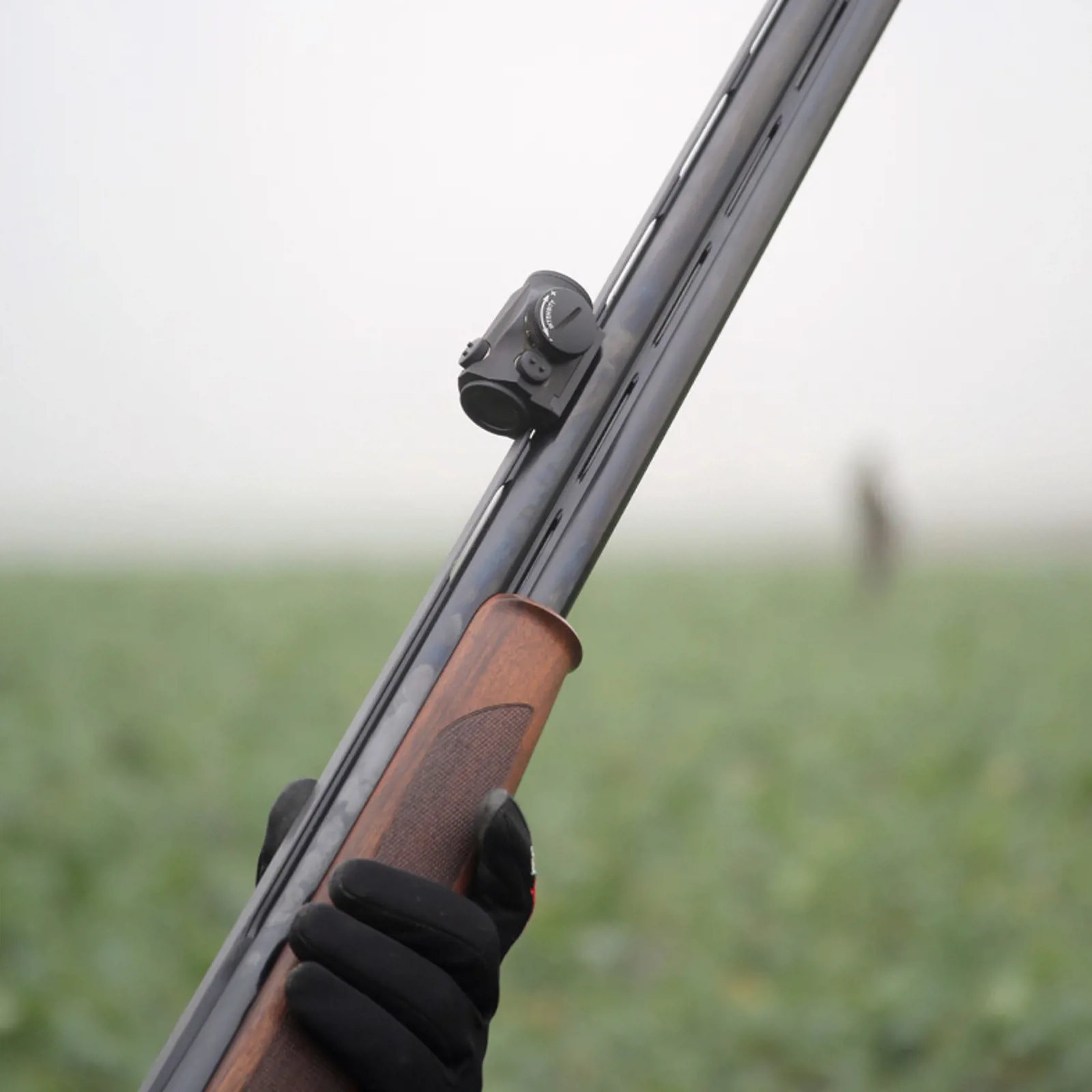

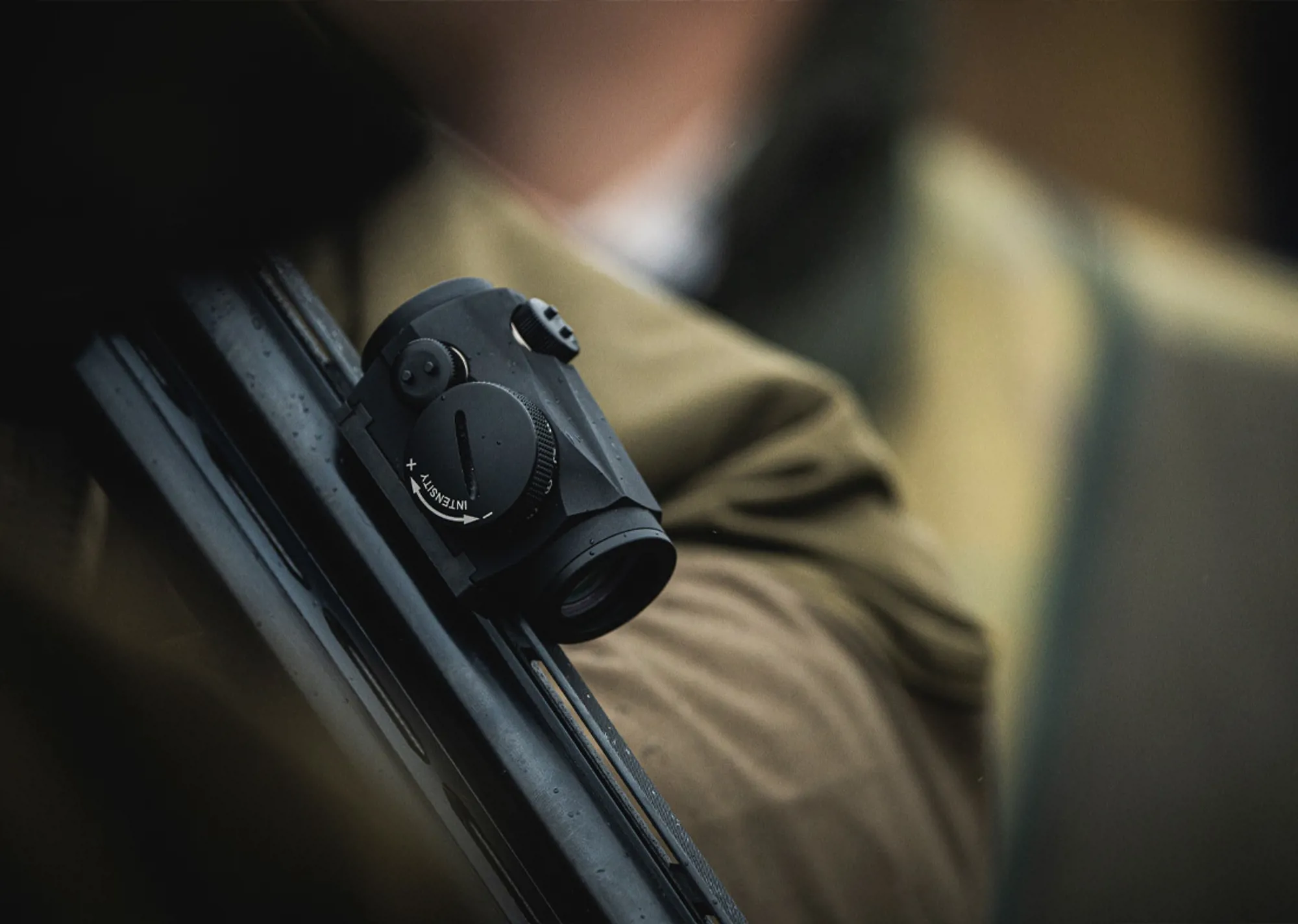

The MICRO S-1 attaches directly to the shotgun at any point along the ventilated rib, allowing you to choose optimal placement for proper cheek weld and instinctive shooting position. An integrated carbon fiber reinforced mounting system achieves an ultra-low optical axis height and interchangeable adapter plates are included to accommodate most popular shotgun rib sizes. The large, bright 6 MOA red dot gives the shooter improved target acquisition and increased aiming confidence. - even in bright sky conditions.

The MICRO S-1 greatly enhances hit percentage for hunters, as well as on the sporting clays course.

Inspiration

Please note that displayed media files highlight selected sight model and not always the mount configuration and accessories included in selected item number.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Mounting specifications
  • Physical Information
  • Technology Information
  • Environmental Information
  • Documents and zeroing targets

General specifications

Size L x W x H
Size L x W x H
64 x 48 x 41 mm / 2.5 x 1.9 x 1.6 in
Weight
Weight
100 g / 3.5 oz
Dot size
Dot size
6 MOA
Magnification
Magnification
1X - No Magnification
NVD compatible
NVD compatible
No
Transmission
Transmission
Average 60% in the range 420 - 700 nm
Eye relief
Eye relief
Unlimited
Mounting solution
Mounting solution
Interchangeable Base Plates to accommodate most rib sizes
Mounting platform
Mounting platform
Shotgun Rib with width 6.0 - 12.0 mm and ventilated rib thickness 1.3 - 3.6 mm

Optical Information

Dot size
6 MOA
* MOA (minute of angle)
1 MOA ≈ 30 mm at 100 meters ≈ 1 in at 100 yards
Magnification
1X - No Magnification
NVD compatible
No
Transmission
Average 60% in the range 420 - 700 nm
Eye relief
Unlimited
Dot color
Red
Light source wavelength
650 nm red light
Optical coating
Anti-reflex coating all surfaces and multilayer coating objective lens
Parallax
Operationally parallax free - No centering required
Diode
LED (Light Emitting Diode) totally eye safe

Power Source Information

Battery life
50,000 h at daylight setting 7 (15,000 Lux, room temperature)
Battery type
CR2032, 3V, Lithium
Power switch
Rotary Switch
Daylight settings (DL)
12

Mounting specifications

Torque - Mount to sight
1.0 Nm / 9 in-lbs (Torx T10)
Torque - Mount to rail
1.0 Nm / 9 in-lbs (Torx T10)
Mounting solution
Interchangeable Base Plates to accommodate most rib sizes

Physical Information

Material housing and tube
Aluminium, Integrated Mount: Reinforced Polymer
Lens covers
Bikini Lens Cover, Rubber, Solid
Adjustment 1 click =
1 click = 13 mm at 100 m / 0.5 in at 100 yds
Color housing
Black
Surface finish housing
Anodized, Semi-matte
Size L x W x H - Sight only
64 x 48 x 41 mm / 2.5 x 1.9 x 1.6 in
Size L x W x H
64 x 48 x 41 mm / 2.5 x 1.9 x 1.6 in
Weight - Optic only
100 g / 3.5 oz
Weight
100 g / 3.5 oz

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Environmental Information

Water resistant
5 m / 15 ft
Operating temperature
- 30°C to + 60°C / - 20°F to + 140°F
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Temperature shock
Operable after a temperature shock between - 30°C and + 60°C (- 22°F and + 140°F)
Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Vibration
Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
Shock
Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
