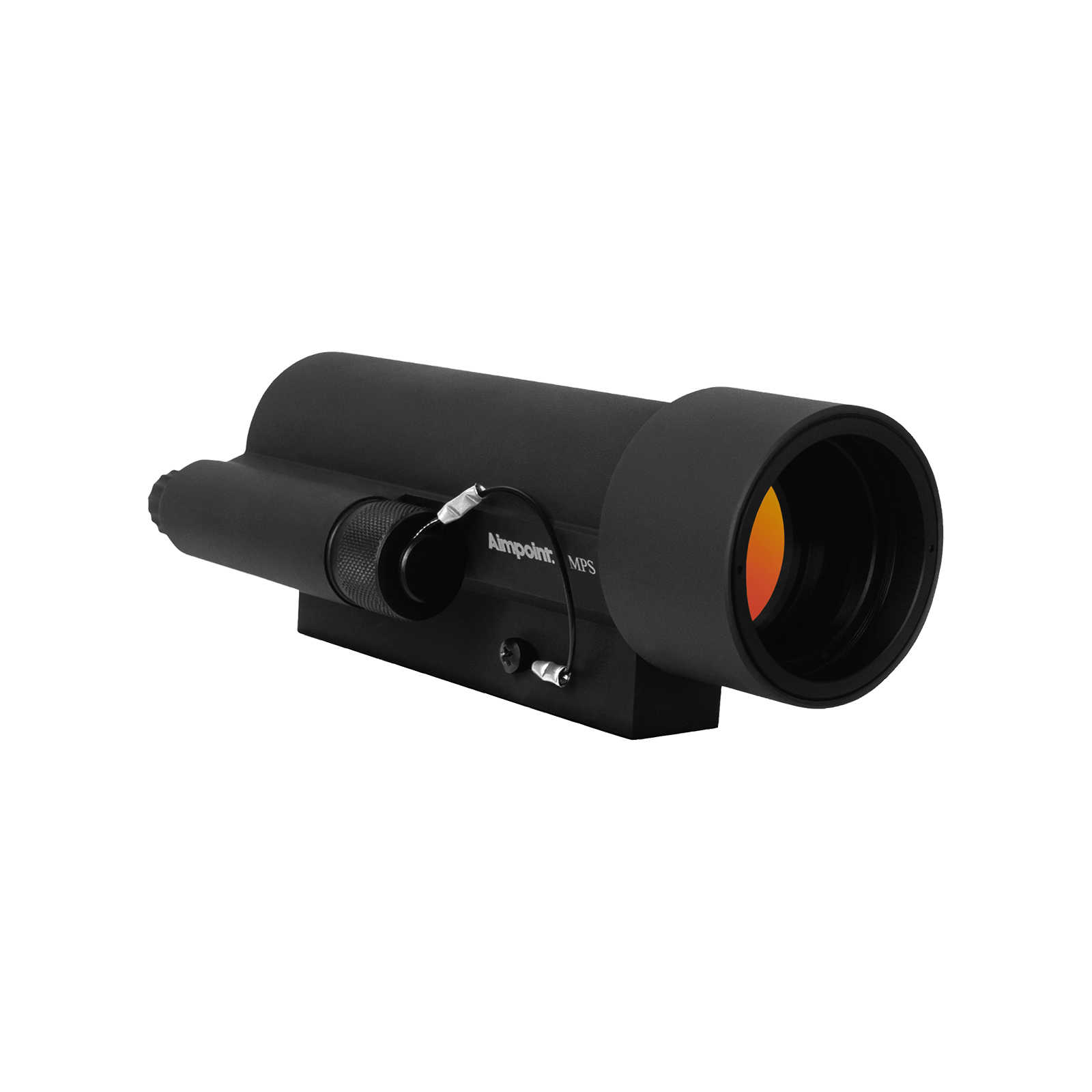

MPS II™ 4 MOA - Red dot reflex sight  - 1

Intended use

  • Military


MPS II™4 MOA - Red dot reflex sight


  • Export License/End-user Certificate required for this product.

  • 50,000 hours (over 5 years) of operation on one 3V Lithium battery, type 123. 500,000 hours of use on NVD setting

  • Waterproof

  • Weight 630 g (22.2 oz) sight only

  • Professional grade red dot sight for use on land, air and at sea

  • Manually adjustable reticle brightness with dot intensity regulator

  • 1 Off position, 4 night vision compatible settings, and 6 daylight settings

  • 4 MOA dot size

Product description

The Aimpoint® MPSII is the second generation of passive electronic reflex collimator sights suitable for medium or heavy support weapons.

MPSII was developed for military applications. It is intended primarily for use on vehicle mounted weapons. Its simplicity of use, based on the “One Function Principle” allows the user to concentrate on the target and operate the sight even with thick winter gloves. The Aimpoint MPSII is a non-magnifying sight with unlimited eye relief allowing an unequalled speed of target acquisition. The MPSII features manually adjustable reticle brightness for all light conditions. The revolutionary CET technology gives the Aimpoint MPSII an improved LED and an impressive battery lifetime of many thousands of hours of active use. Thanks to its NVD compatibility, the MPSII now offers the possibility to be used 24 hours a day. End User certificate required.

This product is no longer manufactured. Service is still provided.

Specifications & documents

  • General specifications
  • Optical Information
  • Power Source Information
  • Physical Information
  • Technology Information
  • Documents and zeroing targets

General specifications

1X - No Magnification
NVD compatible
NVD compatible
Eye relief
Eye relief

Optical Information

1X - No Magnification
NVD compatible
Eye relief

Power Source Information

Battery type
DL123A, 3V, Lithium
Power switch
Rotary Switch

Physical Information

Adjustment 1 click =
1 click = 50 mm at 100 m / 2.0 in at 100 yds

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Documents and zeroing targets
