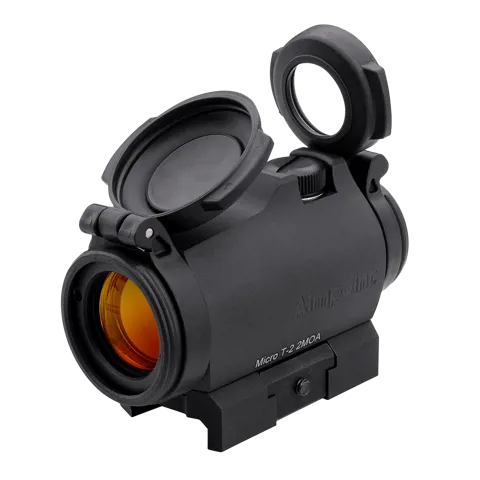

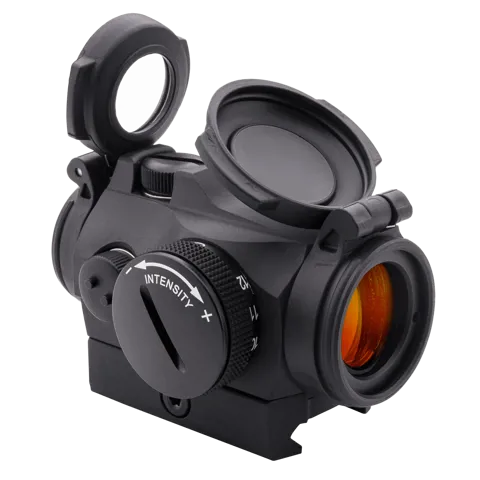

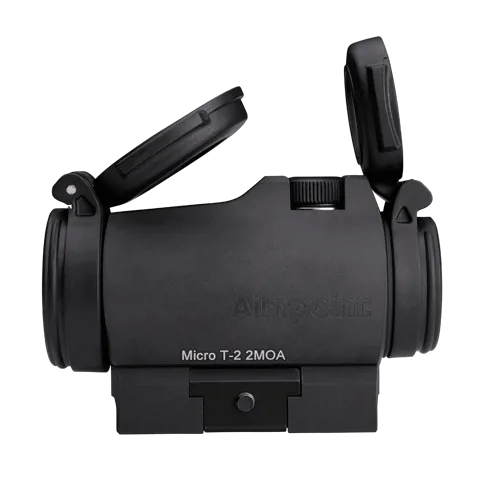

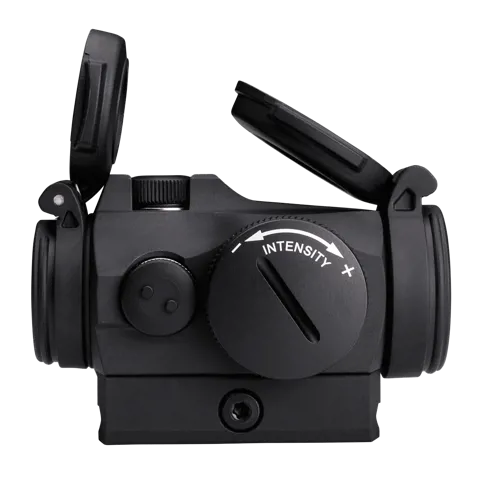

Micro T-2™

2 MOA - Red Dot Reflex Sight

with Standard Mount for Weaver / Picatinny

  • 2 MOA dot size
  • 50,000 hours (over 5 years) of constant operation
  • 1 Off position, 4 night vision compatible settings, and 8 daylight settings
  • Weight 130 g (4.6 oz) with mount
  • Submersible to 25 meters (80 feet)
  • Height of Optical Axis 20 mm (0.8 in) measured from top surface of mechanical interface
  • Advanced optical lenses for enhanced light transmission and ultimate dot clarity

INCLUDES: Micro™ Standard Mount for Weaver / Picatinny, Flip-up Lens Covers, CR2032 Battery, Aimpoint® Tool

Item No. 200170

Application Areas

Sport Shooting

Home Defense

Law Enforcement

Secondary Optic

Product

overview

Launched: 2014

Key

Features

  • Ideal for rifles, carbines, shotguns, submachine guns, and handguns
  • Flip-up lens covers – front is solid, and rear is transparent – allowing the user to shoot with both eyes open and lens caps closed in an emergency situation
  • Reinforced protection of the turrets for even greater ruggedness
  • Integral Picaninny-style base allows easy attachment to any rail
  • Standard mount for Weaver / Picatinny
  • Anodized high strength aluminum housing, semi-matte black
  • Use as a standalone sight or piggybacked on larger magnifying, thermal, or night vision optics
  • NVD compatible

Technical

Specifications

Size L x W x H (mm)

Size L x W x H (mm)

79 x 46 x 48 mm

Size L x W x H (in)

Size L x W x H (in)

3.1 x 1.8 x 1.9 in

Weight g

Weight g

130 g

Weight oz

Weight oz

4.6 oz

Dot Size

Dot Size

2 MOA

Magnification

Magnification

1X - No Magnification

Night Vision Device (NVD) Compatible

Night Vision Device (NVD) Compatible

Yes

Transmission

Transmission

Average 70% in the range 420 - 900 nm

Eye Relief

Eye Relief

Unlimited

Mounting Solution

Mounting Solution

Micro™ Standard Mount for Weaver / Picatinny

Mounting Platform

Mounting Platform

Weaver /Picatinny Rail


Operating Principle Reflex collimator sight - red dot sight

Dot Size 2 MOA
Magnification 1X - No Magnification
Night Vision Device (NVD) Compatible Yes
Transmission Average 70% in the range 420 - 900 nm
Eye Relief Unlimited
Diode LED (Light Emitting Diode) totally eye safe
Dot Color Red
Dot Intensity Visible against a background luminance of 0.1 to 55 000 lx
Light Source Wavelength 650 nm red light
Optical Coating Anti-reflex coating all surfaces and multilayer coating objective lens
Optical Signature No optical signature is visible at 10 meter distance, front side, on appropriate settings with NVD
Clear Aperature 18 mm / 0.7 in
Parallax Absence of parallax - No centering required

Battery Life 50,000 h at daylight setting 8 (room temperature)
Battery Type CR2032, 3V, Lithium
Power Switch Rotary Switch
Night Vision Device (NVD) Settings 4
Daylight (DL) Settings 8

Size L x W x H (mm) 79 x 46 x 48 mm
Size L x W x H (in) 3.1 x 1.8 x 1.9 in
Weight g 130 g
Weight oz 4.6 oz
Size L x W x H (mm) Physical 68 x 41 x 36 mm
Size L x W x H (in) Physical 2.7 x 1.6 x 1.4 in
Weight (g) 94 g
Weight (oz) 3.3 g
Material Housing and Tube High Strength Aluminum
Surface Finish Housing Anodized, Semi-Matte
Color Housing Black
Lens Covers Front Solid Flip-up Lens Cover and Rear Transparent Flip-up Lens Cover
Material Lens Covers Thermoplastic Elastomer (TPE)
Material Mounting Solution Aluminum
Height of Optical Axis Measured from Top Surface of Mechanical Interface 20 mm / 0.8 in
Adjustment 1 Click = 13 mm at 100 m / 0.5 in at 100 yds

Submersible to 25 m/ 80 ft
Laser No Laser Emission
Radioactive Material None
Temperature Range Operation - 45°C to + 71°C / - 49°F to + 160°F
Temperature Range Storage - Operable after a temperature shock between: - 51°C to + 71°C / - 60°F to + 160°F
Temperature Shock Operable after a temperature shock between - 45°C and + 71°C / - 49°F and + 160°F
Humidity - Operable during and after Humidity. Limits: Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Shock - Operable before and after shock. Limits: Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
Vibration - Withstands vibration. Limits: Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
Chemical Resistance Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents.

Mounting Solution Micro™ Standard Mount for Weaver / Picatinny
Mounting Platform Weaver /Picatinny Rail
Torque - Mount to Sight 1.35 Nm / 1.0 ft·lb (Torx T10)
Torque - Mount to Rail 2.0 Nm / 1.5 ft·lb (Torx T10)

All specifications are typical and subject to change without notice. © 2021 Aimpoint AB. Ed. 09-Apr-21
