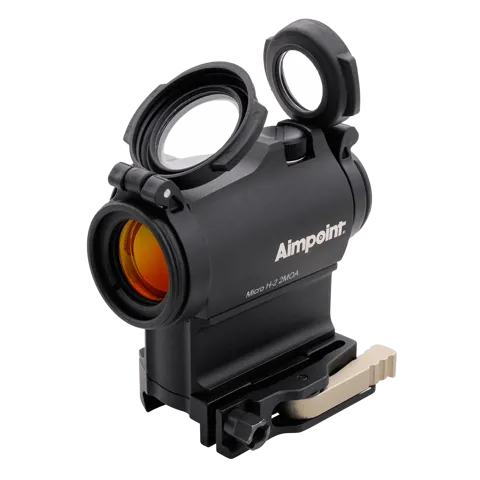

Micro™ H-2 2 MOA - Red dot reflex sight with 39 mm spacer and LRP mount - 1

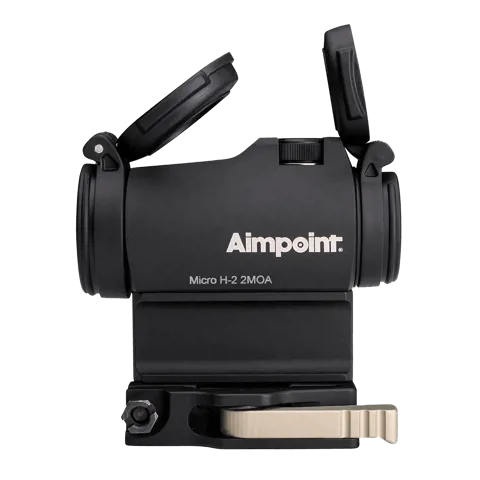

Micro™ H-2 2 MOA - Red dot reflex sight with 39 mm spacer and LRP mount - 2

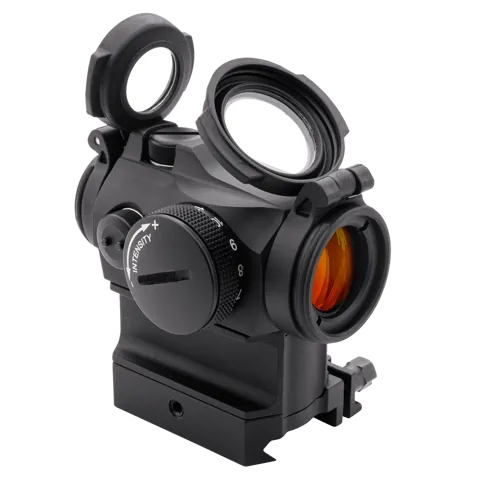

Micro™ H-2 2 MOA - Red dot reflex sight with 39 mm spacer and LRP mount - 3

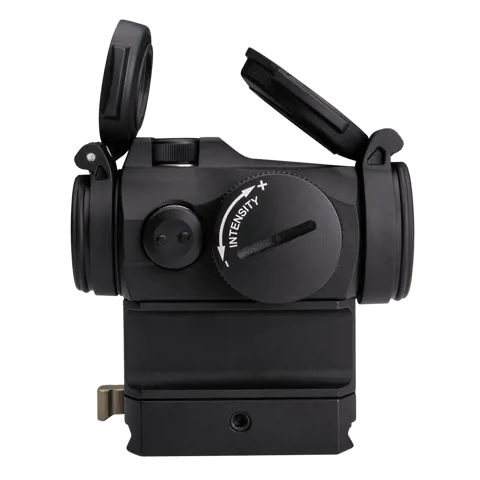

Micro™ H-2 2 MOA - Red dot reflex sight with 39 mm spacer and LRP mount - 4

Intended use

  • Shooting Sports

    Shooting Sports

  • Personal Protection

    Personal Protection

Micro™ H-22 MOA - Red dot reflex sightwith 39 mm spacer and LRP mount

#200211

  • 50,000 hours (over 5 years) of operation on one battery

  • Submersible to 5 meters (15 feet)

  • Lightweight – 94 g (3.3 oz) sight only and 190 g (6.7 oz) with mount

  • Advanced optical lenses for enhanced light transmission and ultimate dot clarity

  • Height of Optical Axis 39 mm (1.5 in) measured from top surface of mechanical interface, AR-15 Ready

  • 12 intensity settings for use in daylight and low light conditions

  • 2 MOA dot size

Read more

Product description

Being the top choice for speed and accuracy in a compact reflex optic, the Aimpoint® Micro™ H-2 is trusted by millions of hunters and sport shooters worldwide.

This second generation AIMPOINT MICRO red dot sight has a redesigned and reinforced house body, as well as flip-up covers protecting the lenses. Thanks to superior optical lenses and cutting edge lens coatings, the optical performance and the shape and clarity of the red dot are radically improved. This sight offers 50,000 hours of operation on a single battery.

This is an AIMPOINT MICRO H-2 model with Lever Release Picatinny mount and 39 mm spacer, AR15 Ready.

MICRO H-2 combines simplicity, speed, ruggedness, accuracy and reliability.

Included in the box:

  • Micro™ H-2 - 2 MOA - Red dot reflex sight
  • CR2032 battery
  • LRP mount
  • Spacer 39 mm
  • Aimpoint® tool
  • Transparent flip-up lens covers

Inspiration

Please note that displayed media files highlight selected sight model and not always the mount configuration and accessories included in selected item number.

Specifications & documents

General specifications

Size L x W x H
78 x 51 x 67 mm / 3.1 x 2 x 2.6 in
Weight
190 g / 6.7 oz
Dot size
2 MOA
Eye relief
Unlimited
Magnification
1X - No Magnification
Mounting platform
Picatinny Rail
Mounting solution
LRP Mount and Spacer 39 mm
NVD compatible
No
Transmission
Average 60% in the range 420 - 700 nm

Optical Information

Dot color
Red
Diode
LED (Light Emitting Diode) totally eye safe
Dot size
2 MOA
Eye relief
Unlimited
Light source wavelength
650 nm red light
Magnification
1X - No Magnification
Optical coating
Anti-reflex coating all surfaces and multilayer coating objective lens
Parallax
Operationally parallax free - No centering required
Transmission
Average 60% in the range 420 - 700 nm
* MOA (minute of angle)
Clear aperture
18 mm
NVD compatible
No

Power Source Information

Daylight settings (DL)
Battery life
50,000 h at daylight setting 8 (15,000 Lux, room temperature)
Battery type
CR2032, 3V, Lithium
Power switch
Rotary Switch

Mounting specifications

Mounting platform
Picatinny rail
Mounting solution
LRP mount and spacer 39 mm
Torque - Mount to sight
1.35 Nm / 12 in-lbs (Torx T10)

Physical Information

Color housing
Black
Surface finish housing
Anodized, Semi-matte
Lens covers
Flip-up Lens Covers, Transparent
Material housing and tube
High strength aluminum
Adjustment 1 click =
Weight
190 g
Weight - Optic only
94 g

Technology Information

Operating principle
Reflex collimator sight - red dot sight

Environmental Information

Humidity
Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic
Shock
Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction.
Water resistant
5 m / 15 ft
Operating temperature
- 30°C to + 60°C / - 20°F to + 140°F
Storage temperature
- 51°C to + 71°C / - 60°F to + 160°F
Temperature shock
Operable after a temperature shock between - 30°C and + 60°C (- 22°F and + 140°F)
Vibration
Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.

Documents and zeroing targets

Zeroing target (mm/m)
Zeroing target (in/yds)
Product sheet - English
User manual for mount
User manual - Multilingual
